NSE4_FGT_AD-7.6 Dumps - Fortinet NSE 4 - FortiOS 7.6 Administrator Practice Exam Questions

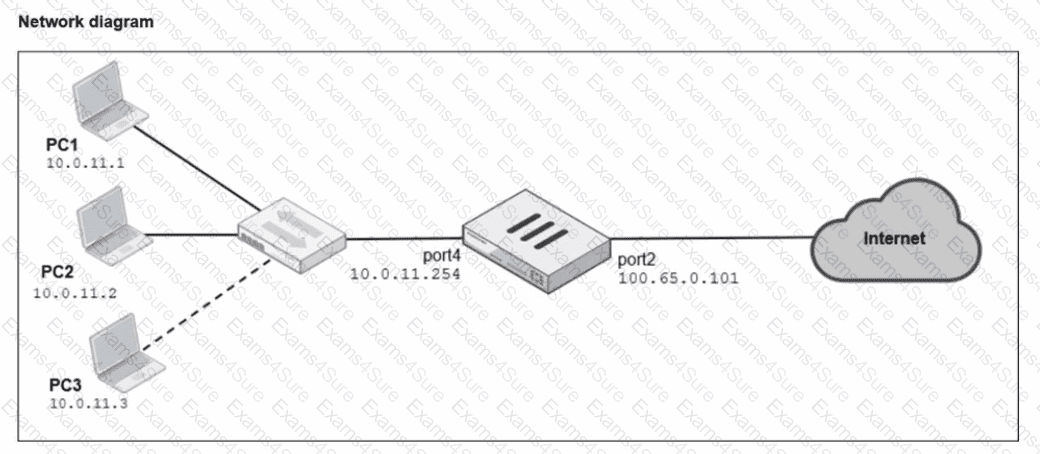

From the exhibits:

The firewall policy has NAT enabled and is configured to Use Dynamic IP Pool.

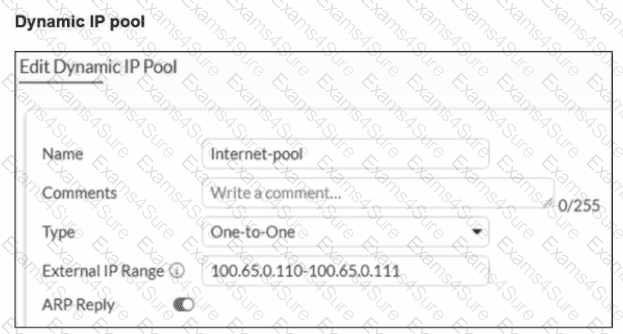

The selected IP pool (Internet-pool) is configured as:

Type: One-to-One

External IP Range: 100.65.0.110–100.65.0.111 (only two public IPs)

PC1 and PC2 can access the internet because each one-to-one NAT mapping consumes one public IP from the pool. When PC3 is added, there is no third public IP available in the pool, so FortiGate cannot allocate a one-to-one mapping for PC3 and the session fails.

FortiOS behavior here is standard: with one-to-one IP pools, the available pool size limits how many distinct internal sources can be translated concurrently (depending on allocation and sessions), and a pool with only two IPs will not reliably support three separate hosts needing translations.

Therefore, the administrator can fix this in two valid ways:

B.

In the IP pool configuration, set end ip to 100.65.0.112.

This expands the pool by adding an additional public IP address, making three public IPs available (.110, .111, .112), so PC3 can be assigned an address for one-to-one NAT.

D.

In the IP pool configuration, set type to overload.

Changing the pool type to overload enables PAT (many-to-one), allowing multiple internal hosts (PC1, PC2, PC3) to share the pool address(es) using different source ports. This removes the “one public IP per internal host” limitation inherent to one-to-one pools.

Why the other options are not correct:

A.

Multiple Interface Policies is unrelated to IP pool exhaustion and does not solve NAT allocation limits.

C.

match-vip affects VIP matching behavior for destination NAT/virtual IP usage and does not address the source NAT pool shortage causing PC3 to fail.

In FortiOS 7.6, SD-WAN Performance SLAs are used to measure link quality and influence SD-WAN rule decisions. The following three statements are true.

C.

All the SLA targets can be configured.

True

SD-WAN Performance SLAs allow administrators to configure:

Latency

Jitter

Packet loss

Mean Opinion Score (MOS) (for voice)

Threshold values for these metrics are fully configurable per SL

A.

This is explicitly documented in the SD-WAN Performance SLA configuration section.

D.

They are applied in an SD-WAN rule lowest cost strategy.

True

Performance SLAs are commonly used with the Lowest Cost (SLA-based) strategy.

In this strategy:

FortiGate selects the lowest-cost link that meets the SLA requirements.

If a link violates the SLA, it is excluded from selection.

E.

They can be measured actively or passively.

True

FortiOS supports:

Active probing (synthetic probes such as ping/HTTP)

Passive measurement (based on real traffic statistics)

Administrators can choose how SLAs are measured depending on the deployment and requirements.

Why the other options are incorrect

A.

They rely on session loss and jitter.

Incorrect

SLAs measure packet loss, latency, and jitter.

Session loss is not an SLA metric in FortiOS.

B.

They monitor the state of the FortiGate device.

Incorrect

Performance SLAs monitor link quality, not FortiGate system health or device state.
