H13-511_V5.5 Practice Exam Questions

1-B, 2-A, 3-C, 4-D

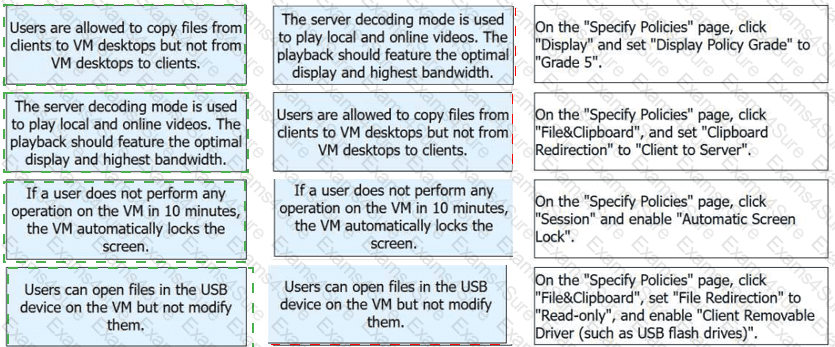

According to the Huawei HCIA-Cloud Computing documentation, FusionAccess application policies are critical for tailoring the virtual desktop experience to specific security and performance requirements. The Huawei Desktop Protocol (HDP) management interface allows administrators to configure granular controls over data flow, display quality, and session behavior.

For Scenario 1, setting Clipboard Redirection to "Client to Server" ensures a one-way data flow. This allows users to copy text or files from their local physical client into the virtual machine (VM) while preventing the extraction of data from the VM back to the local device, thus protecting sensitive corporate information. In Scenario 2, the Display Policy Grade determines the balance between visual fidelity and network consumption. Grade 5 is the highest setting, designed for high-performance networks (25 Mbit/s or higher), and is optimized for server-side video decoding to provide the best possible playback quality.

Scenario 3 addresses security during periods of inactivity. By enabling the "Automatic Screen Lock" under the Session policy, the system monitors user input and automatically secures the desktop if no activity is detected within the specified interval (such as 10 minutes), preventing unauthorized access to an unattended terminal. Finally, Scenario 4 utilizes File Redirection to control external hardware access. By setting this policy to "Read-only" and enabling "Client Removable Driver," users can view and open files stored on their local USB flash drives within the VM environment but are strictly prohibited from saving or modifying any data back onto those physical devices. These configurations demonstrate the robustness of Huawei’s VDI policy engine in balancing user productivity with stringent security protocols.

Step

Operation

Step 1

Update template.

Step 2

Delete user.

Step 3

Remove VM from domain.

Step 4

Reset built-in password of administrator.

Step 5

Configure template.

Step 6

Convert VM into template.

Step

Operation

Technical Rationale

Step 1

Update template

Power on the VM to install the latest OS patches and software updates.

Step 2

Delete user

Remove user profiles and personal data to ensure the master image is clean.

Step 3

Remove VM from domain

Disjoin the VM from the AD domain to prevent Security Identifier (SID) or account name conflicts on new clones.

Step 4

Reset built-in administrator password

Set a secure, standardized baseline credential for the local administrator account.

Step 5

Configure template

Run theHuawei Desktop Preparation Toolto optimize the OS and encapsulate the system.

Step 6

Convert VM into template

Use the management console to officially mark the VM as a read-only template resource.

 Initialization (Steps 1-4):Before a VM can be turned into a "Golden Image," it must be stripped of its unique identity. This includes removing it from anyActive Directory (AD)domain and clearing out specific user accounts. Failing to remove the VM from the domain can lead to "duplicate computer name" errors when new desktops are provisioned from the final template.

 System Encapsulation (Step 5):The "Configure template" phase is often synonymous withSysprepor the Huawei-specific encapsulation process. This step resets the OS clock and generalizations, such as the hardware-dependent drivers, so the image can boot correctly on any host in the cluster.

 Finalization (Step 6):Once converted into a template, the VM is no longer a running instance. It becomes a master file that theITA (IT Adapter)uses for rapid service provisioning.

According to the official Huawei HCIA-Cloud Computing documentation, converting a provisioned full-copy virtual machine (VM) back into a template is a specific administrative workflow used for updating "Golden Images" without starting from a bare VM. The process must follow a logical sequence to ensure that the final template is clean, generalized, and compatible with the FusionAccess management plane.

The workflow begins withStep 1: Update template, which involves powering on the VM to install necessary software patches, security updates, or new applications. Once updated,Step 2: Delete useris performed to remove any cached user profiles, temporary files, or local user data that should not exist in the master image.Step 3: Remove VM from domainis a critical step to ensure that the VM is no longer associated with a specific Active Directory security identifier (SID) or domain account, preventing SID conflicts when the template is later used to provision multiple new desktops.

Following the domain disjunction,Step 4: Reset built-in password of administratoris required to ensure the FusionAccess system can maintain management access via a known, local credential during the subsequent automation phases.Step 5: Configure templateinvolves running theHuawei Desktop Preparation Tool. This tool performs system encapsulation (similar to Sysprep), optimizes the OS for VDI usage, and prepares the Huawei Desktop Agent (HDA). Finally,Step 6: Convert VM into templateis the final action performed in the FusionCompute or FusionAccess management console. This marks the VM as a read-only template resource, ready to be used by the ITA (IT Adapter) for rapid service provisioning.
