Free Advanced VMware Cloud Foundation 9.0 Networking Practice Questions

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)Federation deployment across multiple sites, the management architecture is designed to provide "Global Visibility" while maintaining "Local Autonomy." This is achieved through the coordinated distribution ofGlobal Managers (GMs)andLocal Managers (LMs).

For a three-site deployment,NSX Federationbest practices mandate that each site maintains its ownLocal Manager (LM) Cluster(Option A). The LM is responsible for the site-specific control plane, communicating with local Transport Nodes (ESXi and Edges) to program the data plane. If the connection to the GM is lost, the LM ensures the local site continues to function normally. For production environments, these must be clusters (typically 3 nodes) rather than single nodes to ensure local management remains available.

To protect theGlobal Manageritself—which is the source of truth for all global networking and security policies—the GM cluster should bestretched across the three sites(Option D). In a standard 3-node GM cluster, placing one node at each site ensures that the Federation management plane can survive the complete failure of an entire site. This "stretched" cluster configuration provides a high level of resilience and ensures that an administrator can still manage global policies from any surviving location.

Option B is incorrect because the GM does not communicate directly with the data plane of a site; it must go through an LM. Option C is a risk to availability. Option E is incorrect because vSphere HA cannot protect against a site-wide disaster, and a single appliance represents a significant single point of failure for the entire global network configuration.

===========

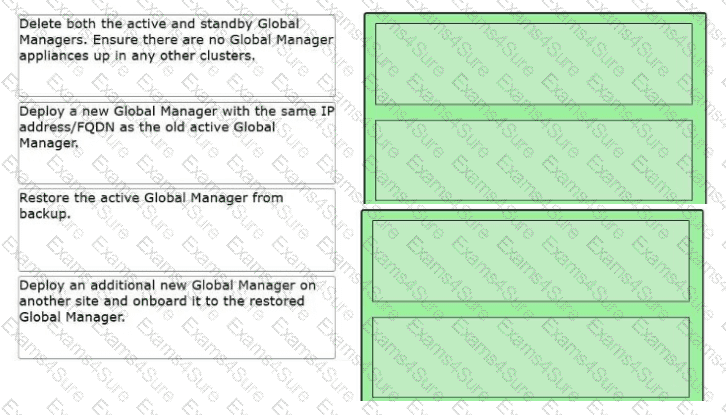

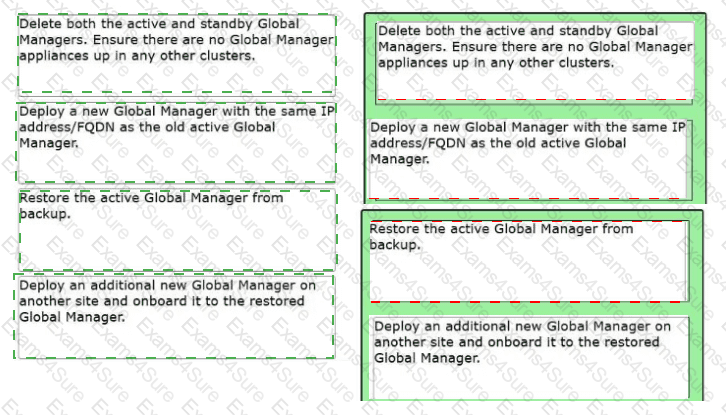

Step 1: Delete both the active and standby Global Managers. Ensure there are no Global Manager appliances up in any other clusters.

Step 2: Deploy a new Global Manager with the same IP address/FQDN as the old active Global Manager.

Step 3: Restore the active Global Manager from backup.

Step 4: Deploy an additional new Global Manager on another site and onboard it to the restored Global Manager.

In aVMware Cloud Foundationmulti-site deployment usingNSX Federation, the Global Manager (GM) manages the global networking configuration across multiple sites. If the entire GM cluster (Active and Standby) fails, the following architectural principles apply:

Cleanup (Step 1):Before initiating a restore, the environment must be "cleaned." If old, failed VMs remain in the inventory or on the hosts, they can cause IP address conflicts or UUID mismatches during the deployment of the new appliance. You must ensure the management plane is clear of the original failed nodes.

Identity Consistency (Step 2):When restoring an NSX appliance (Local or Global) from backup, the new appliancemustbe deployed with the exact sameIP address and FQDNas the original active node. This is critical because the existing Local Managers (LMs) at each site already have established thumbprints and communication channels tied to that specific identity.

The Restore Operation (Step 3):Once the "seed" appliance is deployed, the restore process is triggered through the NSX Manager UI/API. This process re-populates the database with the global segments, firewall rules, and Tier-0/Tier-1 configurations.

Restoring Redundancy (Step 4):The backup only contains the configuration of the cluster. It does not "restore" the standby VM itself. High Availability (HA) must be manually re-established by deploying a second GM appliance at the secondary site and joining it to the newly restored Global Manager cluster to act as the standby.
