VNX301 Practice Questions

The correct answers are A and D . A Versa stateful firewall primarily enforces security by tracking connection state and matching packet/session information such as source, destination, zones, services, protocol, and L3/L4 attributes. Versa’s CLI configuration guide shows stateful firewall access-policy match options for source and destination addresses, services, IP version, IP flags, DSCP, TTL, and also optional application and URL-category match fields when enhanced services are available.

A Versa NGFW extends this inspection model by adding deeper Layer 7 and UTM capabilities, such as IDS/IPS, antivirus, URL filtering, file or data filtering, and application-aware enforcement. Versa’s SD-WAN design guide specifically describes internet security using the Versa next-generation firewall with unified threat management features, including IDS/IPS and antivirus inspection for DIA traffic. Licensing is also a valid distinction: Versa’s SD-WAN licensing overview describes NGFW features as part of solution tiers, so the availability of advanced security functions depends on the licensed tier or subscription

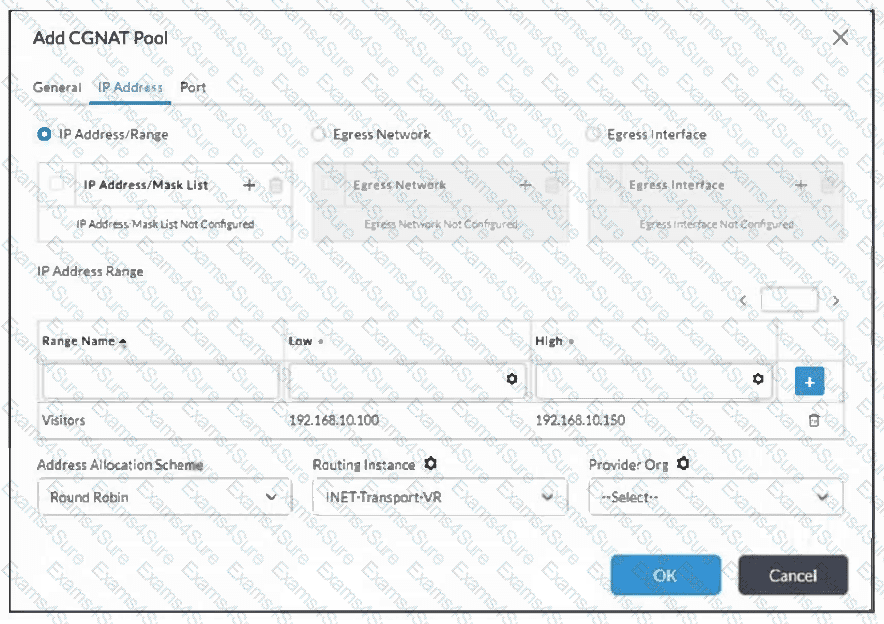

The exhibit shows the Add CGNAT Pool configuration with the IP Address/Range option selected. The configured address range is named Visitors , with a low address of 192.168.10.100 and a high address of 192.168.10.150 . In CGNAT, this pool defines the translated source address resource used by matching NAT rules; it does not define the original inside source hosts. Therefore, matching sessions will have their source address translated to an address from this configured pool range, which makes option C correct. Versa’s CGNAT configuration examples show that a rule matches original source and destination prefixes, and then attaches a translated source pool to perform NAT.

The correct answers are A, B, and E . Versa Director supports multiple notification and event-publishing mechanisms. For email-style system and alarm notifications, Versa Director supports SMTP configuration. The Director documentation lists Configure SMTP Notifications and explains that email templates require SMTP notifications to send test emails or operational messages.

Versa Director also supports webhook notifications. The Director GUI overview states that Notification Configuration includes webhook-based notifications for alarms, and the Director documentation includes a dedicated workflow for configuring webhook notifications for alarms.

Kafka is also a supported event-notification method. Versa’s Kafka Notifications documentation states that Versa Director can publish event notifications to an Apache Kafka server when events occur on a Director node or a VOS device. It also lists notification topics for device events, Director events, Director task notifications, and object-change event notifications.

MMS is not a Versa Director system event notification method. SMS can be configured for text messaging in some notification contexts, but for the three methods listed for system event notifications in this answer set, the verified options are SMTP, Webhook, and Kafka.
