Question # 51

Which of the following statements about switches is false?

Options:

A.

A switch can provide network access services for terminals such as PCs and servers.

B.

A switch can exchange data frames.

C.

A switch is typically deployed as an egress device of a network.

D.

A switch usually works at the data link layer.

Discussion 0
Question # 52

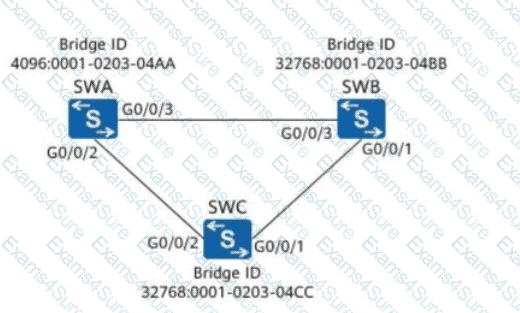

As shown in the figure, which of the following ports will be in a blocking state?

Question # 52

Options:

A.

G0/0/2 of SWC

B.

G0/0/3 of SWB

C.

G0/0/1 of SWC

D.

G0/0/3 of SWA

Discussion 0
Question # 53

Which of the following is not a characteristic of small campus networks?

Options:

A.

Simple network requirements

B.

Wide coverage

C.

Simple network architecture

D.

Small number of users

Discussion 0
Question # 54

After an Eth-Trunk in LACP mode is created, devices on both ends send LACPDUs to elect the Actor. Which of the following parameters in LACPDUs determine the Actor election?

Options:

A.

Device priority

B.

Interface number

C.

MAC address

D.

Interface priority

Discussion 0
Question # 55

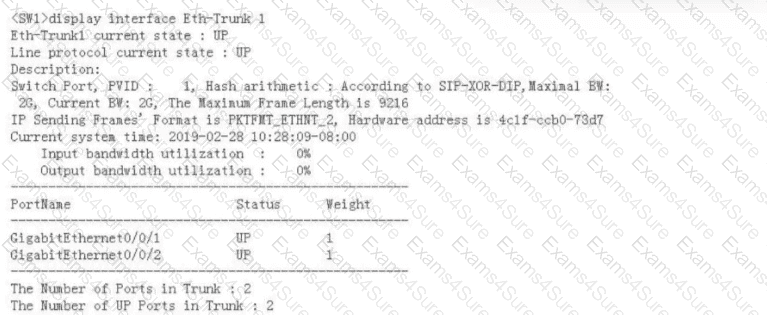

The following figure shows the display interface Eth-Trunk 1 command output on a switch. Which of the following commands can be used to delete Eth-Trunk 1?

Question # 55

Options:

A.

inte GigabitEthernet 0/0/1 undo eth-trunk quit inte GigabitEthernet 0/0/2 undo eth-trunk quit undo interface Eth-Trunk 1

B.

inte GigabitEthernet 0/0/2 undo eth-trunk quit undo interface Eth-Trunk 1

C.

undo interface Eth-Trunk 1

D.

inte GigabitEthernet 0/0/1 undo eth-trunk quit undo interface Eth-Trunk 1

Discussion 0
Question # 56

What action does an access port take in the process of sending VLAN frames?

Options:

A.

The access port sends tagged frames.

B.

The access port strips the VLAN tag and forwards the frame.

C.

The access port exchanges the VLAN tag of the inbound and outbound port of the frame before forwarding the frame.

D.

The access port attaches its PVID information to the frame.

Discussion 0
Question # 57

A router in the backbone area has complete LSDBs of routers in other areas.

Options:

A.

TRUE

B.

FALSE

Discussion 0
Question # 58

Which of the following parameters is used to elect the root bridge in STP?

Options:

A.

Bridge ID

B.

Port ID

C.

Root path cost

D.

System name of the switch

Discussion 0
Question # 59

To enable the FTP server function on a router, set the username and password to " huawei " , and set the FTP root directory to " flash:/dhcp/ " , which of the following commands must be configured?

Options:

A.

local-user huawei service-type ftp

B.

local-user huawei password cipher huawei

C.

local-user huawei ftp-directory flash:/dhcp/

D.

ftp server enable

Discussion 0
Question # 60

Which of the following statements is true about the Forward Delay timer of STP?

Options:

A.

Reduce the interval for sending BPDUs.

B.

Improve the STP convergence speed.

C.

Improve the configuration BPDU lifetime, ensuring that the configuration BPDUs can be forwarded to more switches.

D.

Prevent temporary loops.

E.

Delay is required when a port transitions between Blocking and Disabled.

Discussion 0
