Free HCIA-Datacom V2.0 Practice Questions

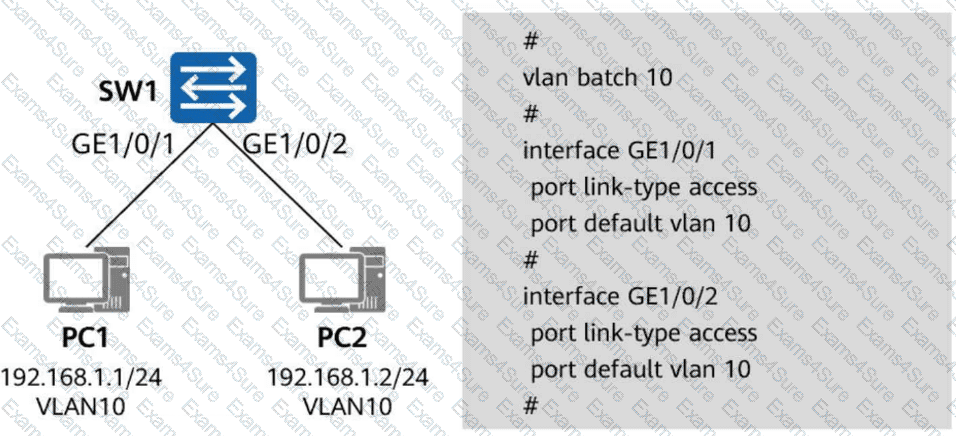

When a switch receives an untagged frame from a user host on an access interface , it associates that frame with the VLAN configured on the interface. In this scenario, PC1 and PC2 are in VLAN 10, and GE1/0/2 is an access interface in VLAN 10. After SW1 receives the frame from PC1, it internally associates the frame with VLAN 10 , so option A is correct in the practical VLAN-processing sense used in HCIA-Datacom questions.

When the frame is forwarded out an access interface toward PC2, the switch sends it without a VLAN tag , because end hosts normally do not process 802.1Q tags. Therefore, option D is correct. Option B is incorrect because both hosts are in the same VLAN and can communicate normally; SW1 does not discard the return traffic for that reason. Option C is not correct in the standard VLAN switching model used by Huawei training, because the switch performs forwarding based on VLAN membership and internally processes the frame as belonging to VLAN 10. This question mainly checks understanding of access/trunk behavior and tag handling on ingress and egress.

All four statements are correct. The code uses the Paramiko library to automate SSH login to a network device. import paramiko and import time load the Python modules required for SSH communication and delay control, so option C is correct. The statement ssh = paramiko.SSHClient() creates an SSH client object, and ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy()) allows the client to accept an unknown host key automatically in this example scenario.

The command ssh.connect( ' 192.168.1.254 ' , username= ' python ' , password= ' Huawei@123 ' ) establishes an SSH connection to the target device, so option B is correct. Then channel = ssh.invoke_shell() opens an interactive shell channel , which is commonly used to send CLI commands and receive output just as an administrator would in a terminal session, making option D correct. The command channel.send( ' screen-length 0 temporary\n ' ) disables page-by-page output for the current session, which is useful in network automation. Finally, ssh.close() closes the SSH session and releases the connection, so option A is correct. HCIA-Datacom automation knowledge often uses Paramiko examples to demonstrate basic Python-based device O & M.

A /27 subnet mask is 255.255.255.224, which means each subnet contains 32 IP addresses. The subnet increments in blocks of 32 in the last octet: 0, 32, 64, 96, 128, 160, 192, 224. The address 192.168.1.200/27 belongs to the subnet 192.168.1.192/27.

For this subnet, the network address is 192.168.1.192, the broadcast address is 192.168.1.223, and the valid host range is from 192.168.1.193 to 192.168.1.222. Therefore, 192.168.1.221/27, 192.168.1.193/27, and 192.168.1.222/27 are all valid host addresses in the same subnet and are reachable at Layer 2 without routing. That makes A, C, and D correct.

Option B is not correct because 192.168.1.192/27 is the network address of the subnet and cannot be assigned to a host by default. This question checks IP subnetting and the ability to identify valid hosts within the same broadcast domain.
