Free Junos - Associate (JNCIA-Junos) Junos OS 21.2 Practice Questions

Junos OS is built upon a highly stable and secure architecture that distinguishes it from many legacy network operating systems. Two of its most defining characteristics are software modularization and the separation of the control and forwarding planes .

Modularization means that Junos OS runs each major function—such as the routing protocol process (rpd), the management process (mgd), and the interface process (dcd)—as an independent software daemon in its own protected memory space. This ensures that if a single process crashes or needs to be restarted, it does not bring down the entire system or interrupt traffic forwarding.

Furthermore, the physical and logical separation of the Control Plane (Routing Engine) and the Forwarding Plane (Packet Forwarding Engine) is a cornerstone of Junos design. The Routing Engine handles complex intelligence, protocol calculations, and management, while the Packet Forwarding Engine performs high-speed packet switching in hardware. This ensures that a heavy management load or a complex routing recalculation won ' t cause " jitter " or packet loss for transit traffic. Conversely, Junos strictly prohibits unsigned third-party binaries to maintain system integrity, and it maintains a clear functional distinction between routing policies (path selection) and security policies (traffic permit/deny).

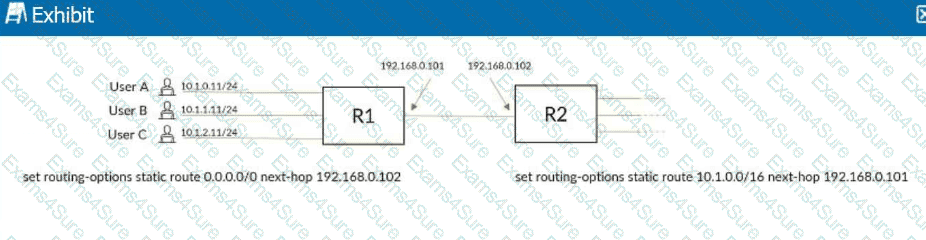

In Junos OS, route preference (often referred to as administrative distance in other operating systems) is the mechanism used to select the " best " path when the routing table receives multiple advertisements for the exact same destination prefix from different routing sources. The core rule for preference is that lower values indicate a more preferred or " higher priority " route . For example, a direct route has a default preference of 0, a static route is 5, and OSPF internal routes are 10. If a router learns about the same network from both OSPF and a static entry, it will select the static route because 5 is lower than 10.

Crucially, route preference is only evaluated after the longest prefix match (LPM) has been determined. LPM is the absolute first step in packet forwarding; the router will always choose the most specific route available (e.g., a /28 over a /24). Only if there are multiple entries for that same /28 does the router look at preference to break the tie. It is a common misconception that a lower preference value can override a more specific prefix; in reality, a /32 route with a preference of 170 (BGP) will always win over a /24 route with a preference of 5 (Static). Understanding this hierarchy is vital for network architects when designing redundant paths and predictable failover behaviors.

For managing high volumes of administrative users, Junos OS supports externalizing the authentication, authorization, and accounting (AAA) process. The two primary industry-standard protocols supported for this purpose are RADIUS (Remote Authentication Dial-In User Service) and TACACS+ (Terminal Access Controller Access-Control System Plus).

Using these protocols allows an architect to maintain a centralized user database on an external server (like Cisco ACS, FreeRADIUS, or Microsoft NPS) rather than configuring every individual user account locally on every Junos device. When a user attempts to log in via SSH or the console, the Junos device acts as a client, forwarding the credentials to the remote server. RADIUS is often preferred for its broad compatibility and efficiency, while TACACS+ is frequently chosen for its ability to separate authentication from authorization and its support for granular command-level accounting. SHA (Secure Hash Algorithm) is a cryptographic hash function used within these processes but is not an authentication protocol itself. Similarly, IPsec is a suite for securing IP communications (VPNs) and is unrelated to the administrative login AAA sequence.

Junos OS incorporates a robust configuration versioning and recovery system designed to protect against configuration errors and human oversight. A key feature of this system is that rollback files are stored automatically by the device after each successful commit. These files represent a historical record of previous active configurations. By default, the system maintains a set number of these files, allowing an administrator to revert to a previous state (e.g., rollback 1) if the most recent changes result in unexpected network instability.

Another critical safety mechanism is the behavior associated with the commit confirmed command. If an administrator issues this command but fails to provide a subsequent confirmation within a designated timeframe (defaulting to 10 minutes), the system assumes a loss of management connectivity. Consequently, the rollback configurations are applied automatically after the commit confirmed timeout to restore the previous known-good state. This is an essential best practice for remote configuration management. It is important to note that rollback 0 refers to the currently active configuration, not the factory default, and that while Junos supports maintaining a large number of rollback files, the primary operational benefit lies in the automated storage and confirmation-based recovery processes that ensure the device remains reachable and stable. Reference: Configuration Basics, Rollback Configurations, Commit Confirmed Logic.

==========

In the Junos OS architecture, interfaces are strictly divided into physical and logical components. The physical interface represents the actual hardware port (e.g., ge-0/0/0), while logical units (e.g., ge-0/0/0.0) define the protocol-specific parameters and logical segmentation required for traffic processing. A fundamental characteristic of this model is that a single physical interface can host multiple logical units. This is a mandatory requirement for technologies such as 802.1Q VLAN tagging, where each logical unit corresponds to a different VLAN ID on the same physical link, allowing for efficient micro-segmentation of traffic.

Furthermore, Junos OS allows logical units to have multiple IP addresses assigned to them within the same address family or across different families (such as inet and inet6). This flexibility enables a single logical interface to reside on multiple subnets simultaneously, which is essential for complex routing scenarios, multi-homing, or transitional dual-stack environments. It is a common misconception that logical units are reserved for management; in reality, every physical interface must have at least one logical unit (typically unit 0) configured for the device to process any transit or local traffic. Understanding the hierarchical relationship between the physical port and its logical subdivisions is critical for successful interface management and protocol deployment on Junos platforms. Reference: Junos OS Fundamentals, Interface Naming and Hierarchy.

==========

The Routing Engine (RE) in a Junos device serves as the centralized intelligence and management hub, primarily responsible for the control and management planes of the system. In this capacity, the RE is tasked with processing routing updates, such as OSPF Link State Advertisements (LSAs) or BGP Update messages. These updates are vital for the RE to maintain the Routing Information Base (RIB), calculate the shortest paths, and subsequently populate the Forwarding Information Base (FIB) which is then pushed to the Packet Forwarding Engine (PFE).

Furthermore, the Routing Engine handles all local management traffic. This category encompasses administrative access through the Command Line Interface (CLI) via SSH or Telnet, SNMP queries from network management systems, and system logging processes. Because the RE runs the Junos OS kernel, it must directly interpret and respond to these management-level requests to ensure the device remains configurable and observable. Conversely, transit traffic—the data passing through the device from one ingress port to an egress port—is offloaded to the PFE to be handled at wire speed. While the PFE manages the heavy lifting of data forwarding and Class of Service (CoS) application, the RE remains focused on high-level protocol maintenance and system administration, ensuring that control plane stability is maintained even under heavy traffic loads. Reference: Junos OS Fundamentals, Control Plane Functions, Routing Engine Traffic.

==========
