Free Fortinet NSE I - OT Security 7.6 Architect Practice Questions

The correct answers are

C.

The study guide explicitly separates active/direct profiling methods from passive/non-direct methods and states that “In OT environments, passive methods are preferred over active methods.” It then lists the methods that do not require FortiNAC to interact directly with the device being profiled. Among those methods are “Network traffic: gathered from the infrastructure” and “Vendor OUI: determined by the MAC address gathered from the infrastructure.” That directly matches options C and D .

Options A and B are incorrect because SSH and SNMP are shown in the guide under the direct/active profiling methods. The guide’s point is that passive detection avoids directly scanning or interacting with OT endpoints, since that can negatively affect performance in industrial environments. Because the question specifically asks for passive detection methods, the correct pair is Vendor OUI and Network traffic .

The correct answers are

B.

The study guide explains that a FortiAnalyzer report is built from charts, and that charts consist of two elements: datasets and format . It states: “A FortiAnalyzer report is a set of data organized in charts” and “Charts consist of two elements: Datasets … and Format.” It then goes further in the Customizing Reports section and explicitly says “By default, the Chart Library contains more than 300 charts” and “By default, the Datasets library contains almost 400 datasets.” It also states that you can clone and edit both charts and datasets, and create new ones , which is exactly how you enhance and customize an existing report.

The other options are not the best answers for this question. FortiView can export a chart into a report chart, and Log View can help build a custom dataset and chart from search results, but the question asks which options you can use to enhance the report itself. The study guide identifies the actual report-customization components as the Chart Library and Datasets library . Dashboard library is not presented as a FortiAnalyzer report customization library in this section.

The correct answers are A and B .

Option B is correct because the study guide states that “When a handler generates an event with the automation stitch option enabled, FortiAnalyzer sends a notification” to FortiGate. If Automation Stitch is not enabled in the FortiAnalyzer event handler, that handler will not be usable for the FortiGate automation-stitch workflow. The guide also explains that the configuration of each event handler can include “Automation stitches” and “Rules,” showing that this is a required part of the FortiAnalyzer-to-FortiGate automation path.

Option A is also correct. The study guide explains the automation flow in the Security Fabric: “FortiAnalyzer parses the logs and notifies the root FortiGate” and then “The root FortiGate triggers the action.” That means FortiGate must have the FortiAnalyzer connection configured through the Security Fabric side before it can consume FortiAnalyzer event handlers. The warning in the exhibit about configuring a FortiAnalyzer connection also points directly to that requirement.

Option C is incorrect because + Create is not the reason the existing event handler is missing; it is only an interface control. Option D is not the best answer for this item because the question is about why the event handler name list on FortiGate is empty for FortiAnalyzer-triggered automation. The study guide’s verified requirements for that workflow are the FortiAnalyzer-to-FortiGate Fabric connection and enabling Automation Stitch on the FortiAnalyzer event handler.

Based on the exhibit and the OT Security 7.6 Architect standards for Secure Remote Access :

Secure Tunneling (Statement A) : The exhibit shows a Remote PC connecting through a VPN Cloud to the Edge-FortiGate . In the Fortinet architecture, IPsec VPN is the primary method for establishing a secure, encrypted tunnel for remote administrators or supervisors to access the internal OT segments (Level 2/3) from an external location.

Multi-Factor Authentication (Statement B) : Secure remote access in OT environments (aligned with IEC 62443 standards) requires strong authentication. The study guide emphasizes the use of FortiToken to provide Two-Factor Authentication (2FA) for VPN users, ensuring that compromised credentials alone are not enough to gain access to critical infrastructure.

FSSO (Statement D) : Fortinet Single Sign-On is generally used for identifying internal users already on the network to apply identity-based policies; it is not the primary mechanism for establishing the remote connection itself.

SD-WAN (Statement C) : While SD-WAN can manage the path of the VPN traffic, it is a WAN optimization and reliability feature, not a " secure remote access " feature for a supervisor in the context of authentication and encryption.

The correct answers are C and D .

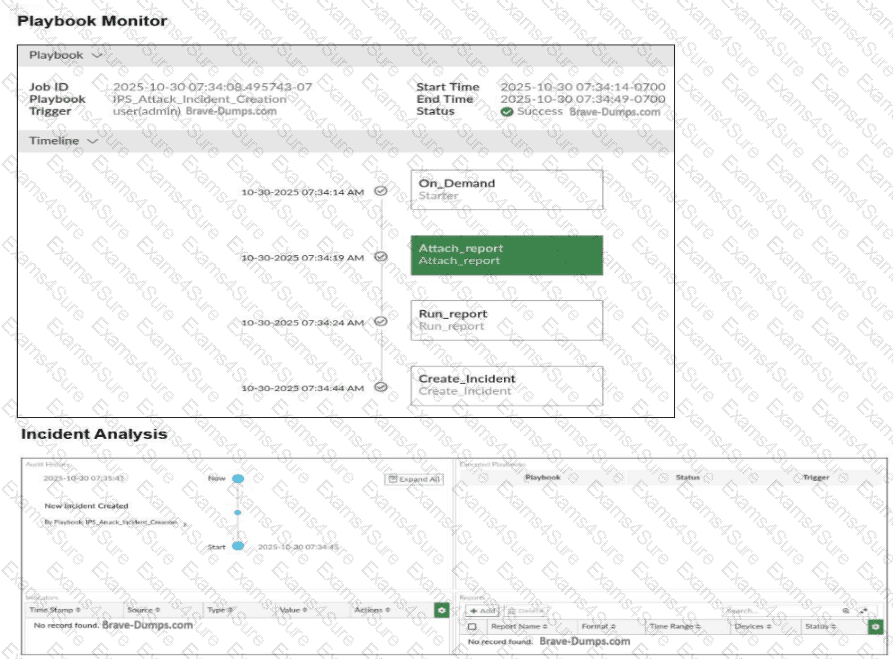

Option D is correct because the Playbook Monitor clearly shows the starter as On_Demand and the trigger as user(admin) . The study guide states that “ON_DEMAND: The playbook runs when an administrator manually starts it” and also notes that to run it manually, you select the playbook and click Run . This exactly matches the exhibit, so the playbook was manually triggered.

Option C is also correct. The study guide explains that “tasks run one after another” and that “if needed, the output of one task can be used by the tasks that follow it.” It also gives an example where workflow logic matters, such as creating an incident and then attaching details to it. In the exhibit, the sequence shown is Attach_report , then Run_report , then Create_Incident , while the incident analysis shows no report attached . Since the report must exist and the incident must already be available before it can be attached properly, the task order is wrong and must be reordered.

Option B is incorrect because the monitor shows multiple tasks completed successfully, not only Create_Incident . Option A is not the best answer because the main problem demonstrated by the exhibits is not simply waiting time, but the incorrect workflow order. The playbook completed successfully, yet the report is still not attached, which indicates a design issue in the task sequence rather than just a delay.

The correct answers are

B.

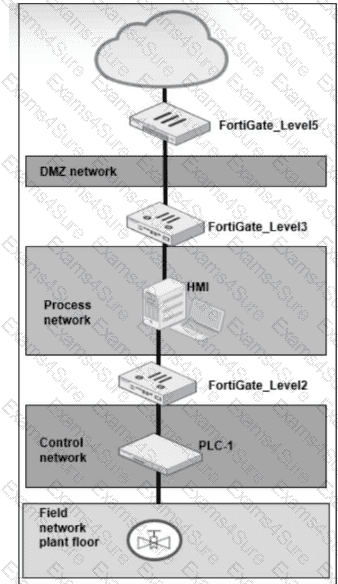

The study guide explains that “the first line of defense is securing the IT side of your network” and that FortiGate should be placed to protect ICS environments and stop threats from propagating from IT into OT. It also states that IPS improves OT security because “today’s threat landscape requires IPS to block a wider range of threats and improve OT security” and that in IPS mode, vulnerable devices are protected . This makes FortiGate_Level5 , at the upper boundary near the DMZ and external connectivity, the correct place to implement IPS as a primary protection control.

The study guide also states in the Purdue model section that “Level 2 consists of the processes and programs that control the PLCs, RTUs, and IEDs found at Level 1” and that “it is necessary to segment, or even microsegment, these servers with firewall segmentation, along with policies that include application control and virtual patching.” In addition, the virtual patching section says “Virtual patching protects OT devices that have not yet been updated against vulnerability exploits” and applies when traffic related to the vulnerable device reaches the firewall policy. Since FortiGate_Level2 sits between the process network and the control network, it is the right enforcement point for virtual patching to protect the PLC-side assets.

Option A is not one of the best answers because offline IDS only detects and logs attacks; the guide says “no traffic flows through FortiGate” in offline IDS mode, whereas IPS can actually block threats. Option D is also not the best answer because OT signatures are enabled within the IPS framework, but the stronger control explicitly described for this design is to deploy IPS at the upper boundary and virtual patching closer to vulnerable OT devices .

The correct answers are C and D .

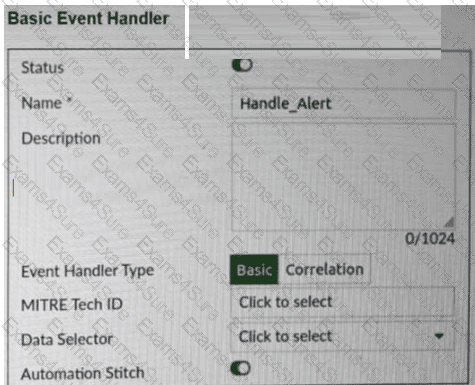

Option D is correct because the study guide states that the configuration of an event handler can include “Rules” and explains that “Rules are granular conditions” and “Event handlers can have one or more rules.” It further states that “FortiAnalyzer uses event handlers to filter all incoming logs” and “If logs match the conditions configured in an event handler, FortiAnalyzer generates an event.” Therefore, to use the automation stitch, you must define the rules on FortiAnalyzer so the event handler can actually generate the event that starts the automation flow.

Option C is also correct. The study guide explains that “When a handler generates an event with the automation stitch option enabled, FortiAnalyzer sends a notification” to the FortiGate side, and in the attack-detection example it says “FortiAnalyzer parses the logs and notifies the root FortiGate” and then “The root FortiGate triggers the action.” It also explicitly shows “Stitches configured on root FortiGate.” This means the FortiGate must have the corresponding automation trigger configured for the FortiAnalyzer event handler notification.

Option A is incorrect because the study guide does not describe configuring an Action on FortiAnalyzer as the required step for this FortiAnalyzer-to-FortiGate automation-stitch flow. Option B is also incorrect because playbooks are a different FortiAnalyzer automation mechanism; the question specifically refers to using the Automation Stitch option in the event handler.

The correct answers are

B.

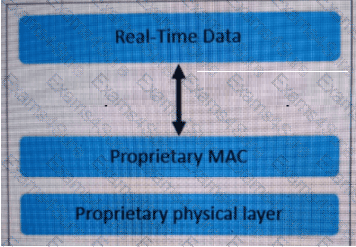

The other options are not supported by the study guide as core advantages of industrial Ethernet. Encryption is not listed as one of the benefits in this section, and remote access is discussed elsewhere in the OT architecture but not as a defining advantage of industrial Ethernet itself. The guide is explicit that the main benefits here are predictable delivery and real-time communication, which are essential in industrial control environments where timing and reliability matter.
