3V0-21.25 Practice Questions

In VCF 9.0, a Region is a logical grouping of resources (typically spanning multiple vCenter/Supervisor instances) that is presented to an Organization for consumption. For the automation engine to treat multiple clusters or vCenter instances as a single, unified pool of capacity, there must be absolute naming parity for resource types. If a blueprint requests a "Large-Memory" VM Class or a "Gold-Storage" Storage Class, that specific name must exist and be configured identically on every Supervisor instance within the region. If naming differs—for example, "Gold-Tier" on one and "Gold-Storage" on another—the provisioning engine will fail to find a consistent placement target, leading to deployment errors. Validating that VM Classes and Storage Classes are synchronized in name and availability across all participating workload domains is a mandatory "Day 0" task before the logical Region construct can be finalized in the Provider Management Portal.

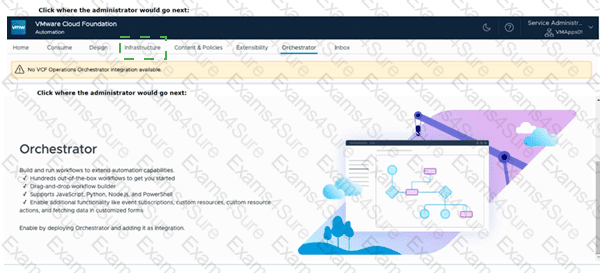

In VCF 9.0 Automation, enabling the Operations Orchestrator (vRO) for a specific organization is an integration task performed within the portal's infrastructure settings. If the administrator sees a message stating "No VCF Operations Orchestrator integration available" under the Orchestrator tab, it indicates that the logical link between the Automation service and the Orchestrator engine has not been established for that tenant. To resolve this, the administrator must navigate through the following path: Infrastructure > Connections > Integrations. Under the Integrations menu, the administrator can select "Add Integration" and choose VCF Operations Orchestrator. They must provide the FQDN of the orchestrator server and the appropriate credentials. Once the integration is finalized and the "Collect Data" task completes, the Orchestrator tab will become functional, allowing the administrator to import, create, and manage workflows directly from the VCF Automation UI.

In VCF 9.0, the Region construct acts as the bridge between physical vSphere infrastructure and the logical automation consumption layer. Storage policies (SPBM) are used to abstract the underlying physical datastores (such as vSAN, VMFS, or vVOLs). A region identifies which storage policies are available for consumption by the tenant organizations mapped to it. Consequently, storage policies determine which datastores are available within a region; if a datastore is not associated with a policy selected during region configuration, it cannot be used for workload placement. Furthermore, a storage policy can be associated with one or more regions. This allows a provider to offer standardized "Gold," "Silver," or "Bronze" storage tiers across different geographic or logical regions of the VCF fleet, ensuring a consistent consumption experience for developers regardless of which physical workload domain their virtual machines or Kubernetes pods are deployed into.

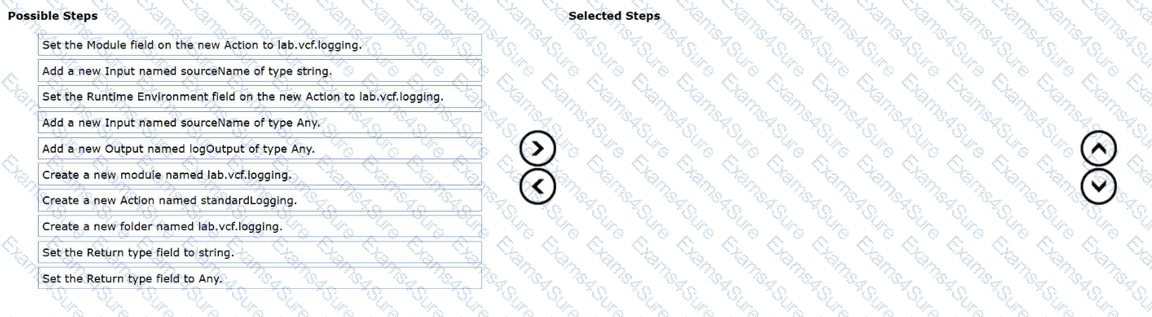

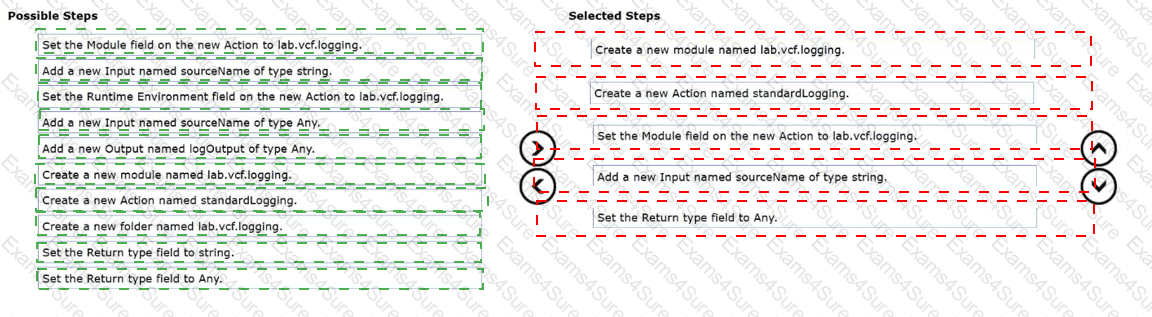

Create a new module named lab.vcf.logging.

Create a new Action named standardLogging.

Set the Module field on the new Action to lab.vcf.logging.

Add a new Input named sourceName of type string.

Set the Return type field to Any.

In VMware Cloud Foundation (VCF) 9.0, extensibility through the Operations orchestrator (formerly vRealize Orchestrator) requires a structured approach to modularity and data typing. To store an action in a specific path like lab.vcf.logging, an administrator must first create a new module with that name, as modules serve as the organizational namespaces for actions. Once the container exists, the administrator creates the Action named standardLogging and explicitly sets the Module field to the newly created namespace to ensure correct storage and accessibility across the orchestrator server.

The configuration of inputs and outputs is critical for programmatic integration. By adding an input named sourceName of type string, the administrator ensures the action can receive metadata from calling workflows exactly as specified in the technical requirements. Regarding the output, the requirement states the script returns a JSON object format. In the orchestrator's JavaScript-based engine, while a string could technically hold JSON text, the "Any" return type is the standard and verified method for returning structured objects. This allows subsequent workflow elements to programmatically parse and interact with the JSON properties without manual conversion, fulfilling the requirement for sophisticated log data handling and troubleshooting within the VCF 9.0 framework.

In VMware Cloud Foundation 9.0, the distinction between VMApps and AllApps Organizations is fundamental to how resources are consumed. VMApps Organizations are designed for traditional virtual machine workloads, leveraging existing vSphere-backed distributed switches or standard NSX-backed segments. In this model, networking is typically managed at the infrastructure level, and the automation portal simply maps these segments to the project. Conversely, AllApps Organizations introduce a modern cloud-consumption model centered around Virtual Private Clouds (VPCs). This enables "AllApps" users to dynamically provision isolated network spaces, utilize VPC-based routing, and manage ingress/egress services natively within the organization. The Development organization (AllApps) sees VPC-based options because it is built to support both Kubernetes and VM workloads in a self-service, cloud-native fashion, whereas the Finance organization (VMApps) is restricted to the pre-defined, "traditional" network paths assigned by the provider. This architectural separation ensures that legacy VM environments and modern application development environments can coexist with the appropriate levels of networking complexity and isolation.

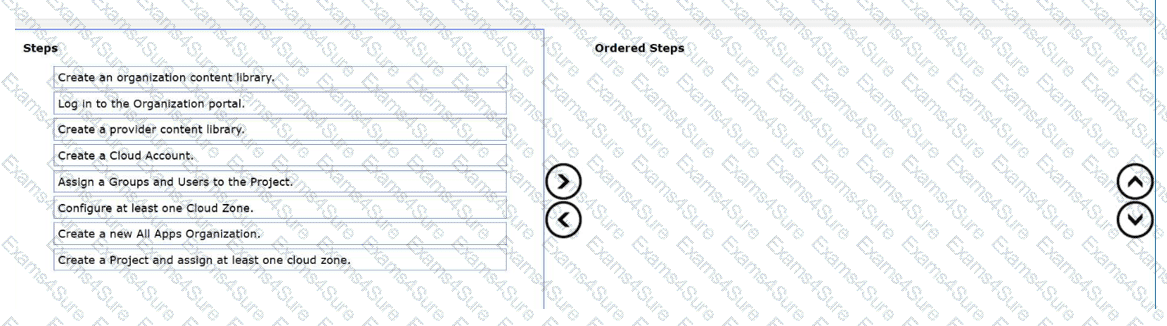

VM Apps Organization Configuration

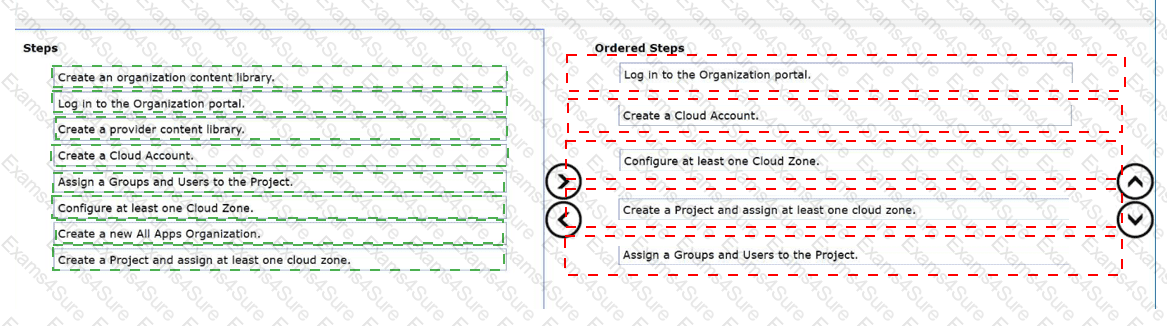

Verified Answer:

Log in to the Organization portal.

Create a Cloud Account.

Configure at least one Cloud Zone.

Create a Project and assign at least one cloud zone.

Assign a Groups and Users to the Project.

In VMware Cloud Foundation (VCF) 9.0, configuring a VMApps Organization for developer self-service follows a specific hierarchical workflow once the initial organization creation and role assignments are complete. The administrator must first Log in to the Organization portal to perform tenant-specific resource management.

The first technical requirement is to establish a connection to the underlying infrastructure by choosing to Create a Cloud Account. This account integrates the tenant's view with the vCenter and NSX Manager resources provided by the fleet administrator. Once connectivity is established, the admin must Configure at least one Cloud Zone. In the VMApps model, the Cloud Zone is the construct that defines which compute clusters, storage policies, and networks are available for workload placement.

To enable consumption, the administrator must Create a Project and assign at least one cloud zone. The Project serves as the primary governance boundary where resource quotas and cloud templates are managed. Finally, the administrator must Assign Groups and Users to the Project. This entitlement step ensures that developers have the necessary permissions (e.g., Project Administrator or Member) to consume the infrastructure and create the required catalog items within their isolated environment.
