3V0-21.25 Practice Questions

In VMware Cloud Foundation 9.0, multi-tenancy is structured around the concept of Organizations . To meet the requirement of hosting multiple companies within a single private cloud with strict segregation and governance, the administrator must utilize the VMApps Organization model. Unlike the AllApps model, which is highly optimized for modern containerized and VPC-driven workloads, the VMApps Organization is specifically designed for environments requiring traditional VM-centric segregation and access control while sharing underlying physical infrastructure. Enabling a Supervisor cluster on the vCenter instance is a foundational prerequisite for these advanced automation capabilities. The Supervisor provides the necessary integration between the vSphere compute layer and the VCF Automation control plane, allowing for the instantiation of the Namespace and Organization constructs that enforce RBAC and resource quotas. By configuring a VMApps Organization per company, the administrator ensures that each tenant has a distinct administrative boundary, private catalog, and isolated resource allocation, effectively satisfying the requirements for hard tenancy within a consolidated private cloud environment.

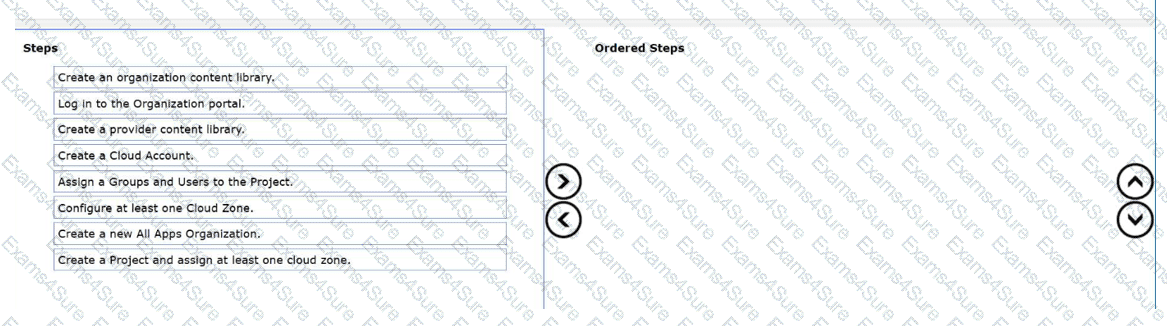

VM Apps Organization Configuration

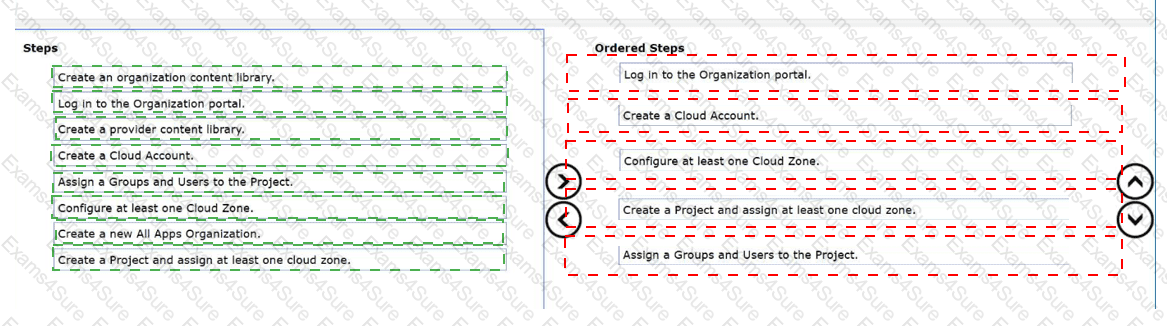

Verified Answer:

Log in to the Organization portal.

Create a Cloud Account.

Configure at least one Cloud Zone.

Create a Project and assign at least one cloud zone.

Assign a Groups and Users to the Project.

In VMware Cloud Foundation (VCF) 9.0 , configuring a VMApps Organization for developer self-service follows a specific hierarchical workflow once the initial organization creation and role assignments are complete. The administrator must first Log in to the Organization portal to perform tenant-specific resource management.

The first technical requirement is to establish a connection to the underlying infrastructure by choosing to Create a Cloud Account . This account integrates the tenant ' s view with the vCenter and NSX Manager resources provided by the fleet administrator. Once connectivity is established, the admin must Configure at least one Cloud Zone . In the VMApps model, the Cloud Zone is the construct that defines which compute clusters, storage policies, and networks are available for workload placement.

To enable consumption, the administrator must Create a Project and assign at least one cloud zone. The Project serves as the primary governance boundary where resource quotas and cloud templates are managed. Finally, the administrator must Assign Groups and Users to the Project. This entitlement step ensures that developers have the necessary permissions (e.g., Project Administrator or Member) to consume the infrastructure and create the required catalog items within their isolated environment.

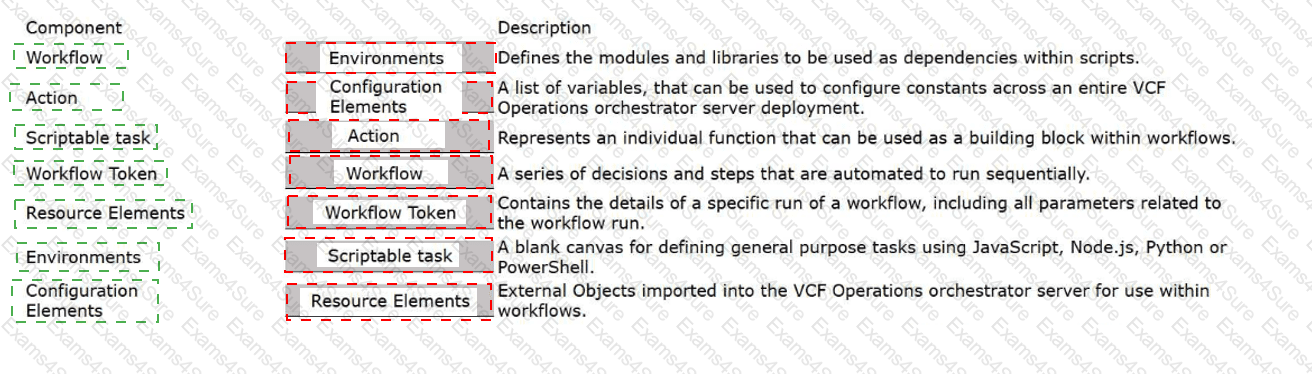

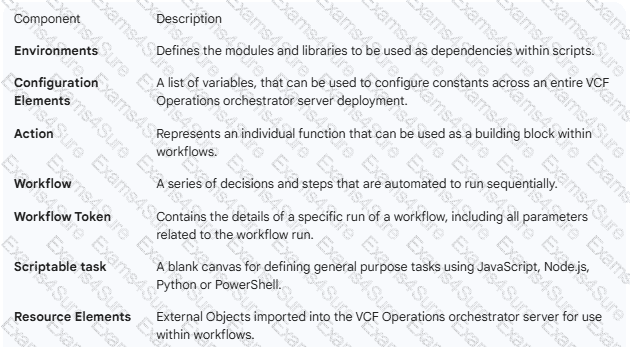

In VMware Cloud Foundation 9.0, the VCF Operations orchestrator (formerly vRealize Orchestrator) utilizes a specific object-oriented hierarchy to facilitate infrastructure automation. Workflows are the primary administrative unit, representing a logical sequence of automated steps. Within these, Actions serve as reusable, modular functions—often written in JavaScript—that act as building blocks across multiple workflows to reduce code duplication. For custom logic, Scriptable tasks provide a " blank canvas " allowing developers to execute polyglot scripts (Node.js, Python, or PowerShell) directly within a workflow ' s schema.

To manage environment-wide variables and reusable assets, the orchestrator uses Configuration Elements and Resource Elements. Configuration Elements store persistent constants (like API endpoints or global timeout values) shared across the server, while Resource Elements allow the import of external files (such as XML, text, or binary files) for use during execution. Modern scripting requirements are handled by Environments, which define the specific runtime dependencies and external libraries (like boto3 for Python) needed for complex integrations. Finally, the Workflow Token is a critical operational object created during every execution; it stores the specific state, inputs, and outputs of a single run, serving as the primary source for audit trails and troubleshooting failed automation tasks. Together, these components allow for the deep extensibility required to integrate VCF with third-party ITSM and CMDB platforms.

To meet the comprehensive requirements of monitoring, anomaly detection, and policy enforcement in VCF 9.0, a combination of integrated networking and security tools is used. NSX Traceflows provide the deep visibility needed to monitor IP space utilization and troubleshoot connectivity at the packet level, allowing administrators to visualize the path traffic takes through the virtual and physical fabric. Integrated Security with VCF Operations (formerly part of the Aria suite) provides the management dashboard for detecting network anomalies by correlating flow data and identifying traffic patterns that deviate from established baselines. Finally, vDefend (the integrated NSX security stack) is essential for enforcing consistent network policies through distributed firewalls (DFW), gateway firewalls, and IDS/IPS capabilities. Together, these three capabilities ensure that the VCF environment remains secure, transparent, and compliant with corporate governance standards, providing the " closed-loop " operational model required for modern private clouds.

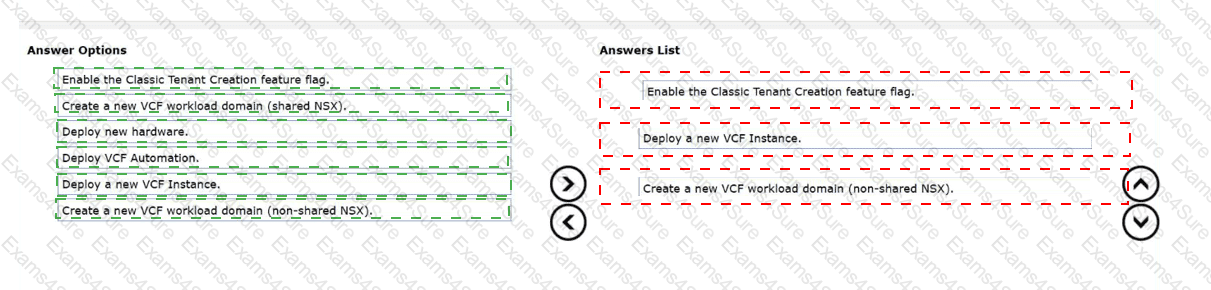

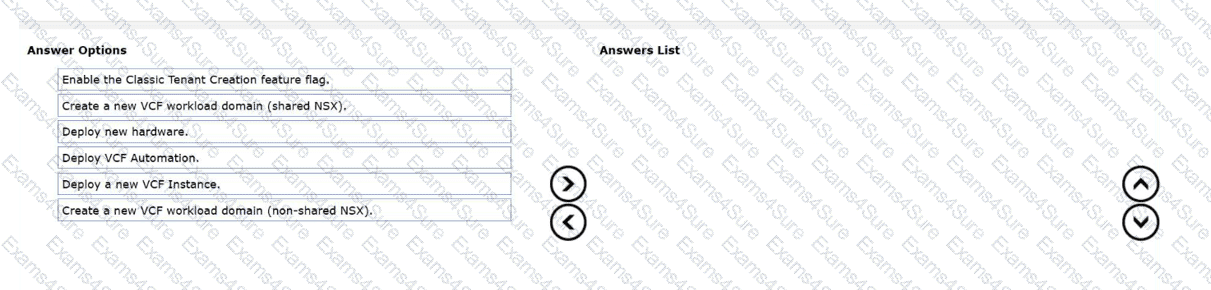

To create a new VM Apps organization with minimal operational overhead in a VCF fleet that already hosts an All Apps organization, select the following three actions:

Answers List

Enable the Classic Tenant Creation feature flag.

Deploy a new VCF Instance.

Create a new VCF workload domain (non-shared NSX).

In VMware Cloud Foundation (VCF) 9.0 , the platform defaults to the modern AllApps (AIIApps) architectural model, which centers on Virtual Private Clouds (VPCs) and Supervisor-integrated networking. To introduce a VMApps Organization —the " classic " tenant model for traditional virtual machines—into this environment while maintaining minimal overhead, the administrator must first Enable the Classic Tenant Creation feature flag . This toggle exposes the legacy workflows necessary to provision organizations that do not rely on the VPC framework.

Furthermore, VMApps organizations typically require their own isolated networking and compute boundaries to avoid conflict with the modern VPC Transit Gateway architecture. Consequently, the administrator should Create a new VCF workload domain (non-shared NSX). Using a non-shared NSX manager ensures that the traditional segments and load-balancing services used by VM-centric workloads are logically and technically segregated from the container-optimized fabric of the AllApps organization. Finally, for a " fleet " approach, Deploying a new VCF Instance (or management block) provides the clean, dedicated infrastructure needed to host these legacy-style organizations with the highest degree of administrative isolation, ensuring that new VM-centric tenants do not consume resources or cause configuration drift within the existing AllApps environment.

In VMware Cloud Foundation 9.0, the Virtual Private Cloud (VPC) model utilizes a profile-based approach to standardize and automate network and security services for tenants. The Connectivity Profile is the primary construct used to define the " boundary " of the VPC, determining how the VPC connects to the regional Transit Gateway and whether it has access to external networks or remains isolated. The Security Profile allows administrators to define baseline security postures, such as distributed firewall (DFW) rules and group memberships, that are automatically applied to workloads within the VP

C.
