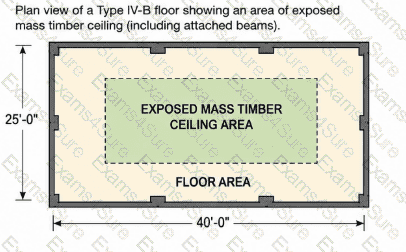

Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, unprotected portions of mass timber as shown in the Figure is limited to an area equal to not more than what percentage of the base floor area?
Each of the following is true regarding the fire-resistance rating for exterior bearing walls except:
The maximum allowable height for a Group E building of Type IV-A construction with an automatic sprinkler system in accordance with Section 903.3.1.1 is _____ stories.
Which of the following requires periodic special inspection of mass timber elements?

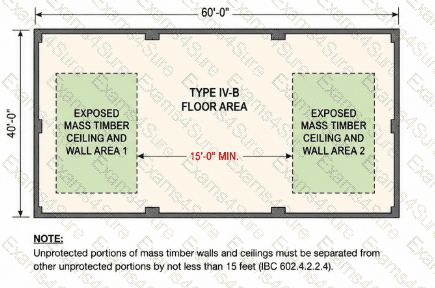

Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, unprotected portions of mass timber as shown in the Figure are required to be separated by _____ feet.
All of the following combustible elements may be used in mass timber buildings except:
Given: A special inspector notices on a mass timber building set of drawings a 8 in. x 8 in. solid sawn nominal dimension lumber element.
The design team has recommended the solid sawn member be replaced with an SCL element.
What minimum SCL size would be correct per the International Building Code?
Each of the following is true regarding the fire-resistance rating for exterior bearing walls except:
Refer to the exhibit by clicking on the EXHIBIT button above.
Given: The connections between the glulam beam and CLT panels all require a fire-resistance rating of 2 hours, and wood cover is designed per AWC Technical Report 10 to provide the entire 2 hours of protection.
The bearing area between the CLT and glulam is the minimum required.
What are the minimum dimensions, in inches, for the wood block shown in red?
Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, based on a 900 sq. ft. floor area, a 30 ' room width, and a 12 in. x 18 in. beam as shown in the Figure, the maximum length of the unprotected portion of the mass timber ceiling (dimension X) is _____ feet.
