BIM_MGT_101 Practice Questions

The Survey Point represents the shared real-world or site coordinate framework. Placing or defining it consistently at the common site origin allows every building model to relate to the same survey reference for federation, site plans, civil coordination, and geographically consistent exports.

Each building should retain its own Project Base Point because this point supports the building’s local project-coordinate framework. A building may use a convenient internal datum and orientation suited to its grids, geometry, and documentation while still maintaining a transformation to the common survey system. This separation allows the buildings to remain independently manageable without losing site-wide positional accuracy.

Placing every Project Base Point at the shared site origin would eliminate the intended distinction between each building’s local coordinate basis and the common site reference. Likewise, using a single Project Base Point across all separate models is not how Revit coordinate systems operate; each model has its own internal origin, Project Base Point, and Survey Point. Option B is imprecise because the requirement is not to establish unrelated Survey Points, but to align the models to one shared site origin.

The correct arrangement is a common Survey Point reference combined with a locally appropriate Project Base Point for each building.

Reference topics: Survey Point; Project Base Point; multi-building coordination; local versus shared coordinates; site federation; building-specific origins.

===============

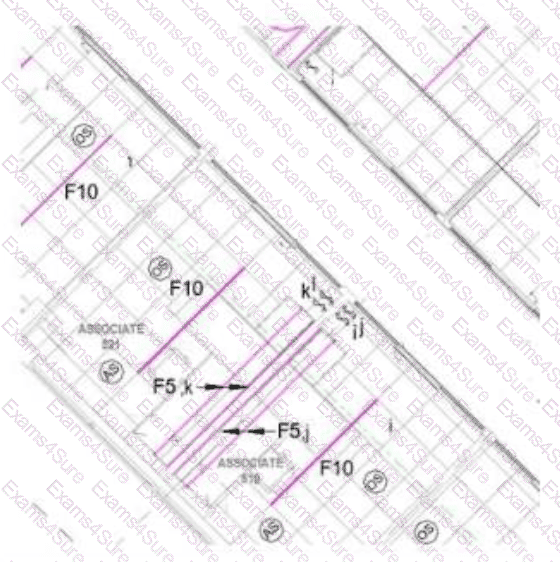

A view filter can be configured to act only on ceilings meeting specific criteria, such as family name, type name, material, height, or another parameter. Because the missing ceiling is a 2x4 type while the visible ceilings are 2x2 types, a filter targeting the 2x4 ceiling could hide it or override its graphics without affecting the other ceilings.

A Plan Region can also impose a localized View Range that differs from the parent Reflected Ceiling Plan. If the hallway contains a Plan Region with a higher cut plane or an otherwise incompatible view range, the ceiling can fall outside the region’s visible range even though it remains present and visible in a 3D view.

The ceiling was not deleted because it is still visible in 3

D.

Reference topics: Reflected Ceiling Plans; View Range; Plan Regions; view filters; category visibility; view-template troubleshooting.

===============
