F5CAB5 Practice Questions

Users are unable to reach an application. The BIG-IP Administrator checks the Configuration Utility and observes that the Virtual Server has a red diamond in front of the status. What is causing this issue?

The BIG-IP appliance fails to boot. The BIG-IP Administrator needs to run the End User Diagnostics (EUD) utility to collect data to send to F5 Support. Where can the BIG-IP Administrator access this utility?

Due to a change in application requirements, a BIG-IP Administrator needs to modify the configuration of a Virtual Server to include a Fallback Persistence Profile. Which persistence profile type should the BIG-IP Administrator use for this purpose?

Clients report that they cannot reach the virtual server vs-production on port 80, but are able to ping the virtual server address. The configuration is shown below:

Plaintext

ltm virtual vs-production {

destination 10.99.20.50:http

ip-protocol tcp

mask 255.255.255.255

profiles {

http {}

tcp {}

}

source 192.168.0.0/16

translate-address enabled

translate-port enabled

vlans {

external

}

vlans-enabled

}

What is the cause?

In the BIG-IP Configuration Utility, a user requests a single screen view to determine the status of all Virtual Servers and associated pool members, as well as any iRules in use. Where should the BIG-IP Administrator instruct the user to find this view?32

Which file should the BIG-IP Administrator check to determine when a Virtual Server changed its status from RED to GREEN?

A BIG-IP Administrator disabled a virtual server with a pool that has a working health monitor. How does the status icon look for this virtual server?

Which two methods should the BIG-IP Administrator troubleshoot a Pool-member that's been marked "DOWN" by its Health Monitor? (Pick the 2 correct responses below)

A Standard Virtual Server for a web application is configured with Automap for the Source Address Translation option. The original source address of the client must be known by the backend servers. What should the BIG-IP Administrator configure to meet this requirement?

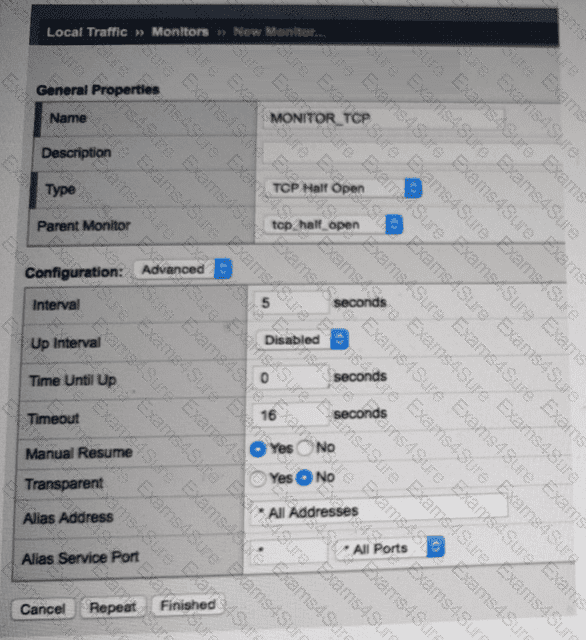

Refer to the exhibit.

A pool member fails the monitor checks for about 30 minutes and then starts passing the monitor checks. New traffic is NOT being sent to the pool member. What is the likely reason for this problem? (Choose one answer)
