AZ-800 Practice Questions

One possible solution to configure Hyper-V to ensure that running virtual machines can be moved between SRV1 and SRV2 without downtime is to use Live Migration. Live Migration is a feature of Hyper-V that allows you to move a running virtual machine from one host to another without any noticeable interruption of service. To set up Live Migration between SRV1 and SRV2, you need to perform the following steps:

On both SRV1 and SRV2, open Hyper-V Manager from the Administrative Tools menu or by typing virtmgmt.msc in the Run box.

In the left pane, right-click on the name of the server and select Hyper-V Settings.

In the Hyper-V Settings dialog box, select Live Migrations in the navigation pane.

Check the box Enable incoming and outgoing live migrations.

Under Authentication protocol, select the method that you want to use to authenticate the live migration traffic between the servers. You can choose either Kerberos or CredSSP. Kerberos does not require you to sign in to the source server before starting a live migration, but it requires you to configure constrained delegation on the domain controller. CredSSP does not require you to configure constrained delegation, but it requires you to sign in to the source server through a local console session, a Remote Desktop session, or a remote Windows PowerShell session. For more information on how to configure constrained delegation, see Configure constrained delegation.

Under Performance options, select the option that best suits your network configuration and performance requirements. You can choose either TCP/IP or Compression or SM

B.

Under Advanced Features, you can optionally enable the Use any available network for live migration option, which allows Hyper-V to use any available network adapter on the source and destination servers for live migration. If you do not enable this option, you need to specify one or more network adapters to be used for live migration by clicking on the Add button and selecting the network adapter from the list. You can also change the order of preference by using the Move Up and Move Down buttons.

Click OK to apply the settings.

Now, you have configured Hyper-V to enable live migration between SRV1 and SRV2. You can use Hyper-V Manager or Windows PowerShell to initiate a live migration of a running virtual machine from one server to another.

TASK 5

???? Objective:

Configure a Group Policy Preference to create a shortcut to \\srvi.contoso.com\data on the desktop of users in the Server Admins OU.

Step-by-Step Guide: Using Group Policy Preferences to Create a Desktop Shortcut

✅ Step 1: Open Group Policy Management Console (GPMC)

Log in to a DC or a management computer with RSAT installed.

Open Group Policy Management (gpmc.msc).

✅ Step 2: Create a New GPO

In the GPMC console, expand the forest and the domain (e.g., contoso.com).

Right-click the OU named Server Admins and select Create a GPO in this domain, and Link it here.

Name the GPO, e.g., Desktop Shortcut for Server Admins.

✅ Step 3: Edit the GPO

Right-click the newly created GPO and select Edit.

This opens the Group Policy Management Editor.

✅ Step 4: Navigate to User Preferences

In the editor, expand:

User Configuration > Preferences > Windows Settings > Shortcuts.

✅ Step 5: Create the Shortcut

Right-click Shortcuts and select New > Shortcut.

In the New Shortcut Properties window:

Action: Create

Name: Data Folder

Target Type: File System Object

Location: Desktop

Target Path: \\srvi.contoso.com\data

Optionally, set an icon or description if you want.

✅ Step 6: Configure Item-Level Targeting (Optional)

If you want to limit this shortcut strictly to specific users/groups, click the Common tab.

Check Item-level targeting and configure conditions (optional).

For this scenario, linking the GPO to the Server Admins OU is usually sufficient.

✅ Step 7: Close and Update

Close the editor.

In GPMC, ensure the GPO is linked to the Server Admins OU.

Force a Group Policy Update on client computers:

On a client computer:

gpupdate /force

Or wait for the next Group Policy refresh cycle.

✅ Step 8: Verify

Log in as a user in the Server Admins OU.

The shortcut to \\srvi.contoso.com\data should appear on the desktop.

To run a container on SRV1 using the mcrmicrosoft.com/windows/servercofe/iis image, publish port 80 on the container to port 5001 on SRV1, and ensure it runs in the background, you can follow these steps:

Step 1: Pull the IIS Image First, pull the correct IIS image from the Microsoft Container Registry:

docker pull mcr.microsoft.com/windows/servercore/iis

Step 2: Run the Container Next, run the container with the required port mapping and ensure it runs in the background using the -d flag:

docker run -d -p 5001:80 --name iis_container mcr.microsoft.com/windows/servercore/iis

This command will start a container named iis_container using the IIS image, map port 80 inside the container to port 5001 on SRV1, and run the container in detached mode.

Step 3: Verify the Container is Running To verify that the container is running and the port is published, use the following command:

docker ps

This will list all running containers and show the port mappings.

Step 4: Access the IIS Server You can now access the IIS server running in the container by navigating to http:// :5001 in a web browser, where is the IP address of SRV1.

Note: Ensure that Docker is installed on SRV1 and that the port 5001 is open on the firewall to allow incoming connections1.

By following these steps, you should be able to run the IIS container on SRV1 with the specified port mapping and have it running in the background. Please replace mcrmicrosoft.com/windows/servercofe/iis with the correct image name mcr.microsoft.com/windows/servercore/iis as shown in the commands above.

Objective:

Create a read-only copy of the DNS zone contoso.com on SRV2.

Step-by-Step Guide: Using a Secondary Zone

✅ Step 1: Log in to SRV2

Log in to SRV2 (where you want to host the secondary zone) using an account with local administrative privileges.

✅ Step 2: Open DNS Manager

Press Windows + R, type dnsmgmt.msc, and press Enter.

✅ Step 3: Create a Secondary Zone

In the DNS Manager, expand the server node for SRV2.

Right-click Forward Lookup Zones and select New Zone.

The New Zone Wizard opens.

✅ Step 4: Configure the Secondary Zone

Zone Type:

Select Secondary zone and click Next.

Zone Name:

Type contoso.com and click Next.

Master DNS Servers:

Enter the IP address of the master DNS server that hosts the primary zone (e.g., SRV1’s IP).

Click Next.

Finish:

Review the settings and click Finish.

✅ Step 5: Allow Zone Transfers on the Primary Server

On SRV1 (or the DNS server hosting the primary zone):

Open DNS Manager.

Right-click the contoso.com zone and select Properties.

Go to the Zone Transfers tab.

Check Allow zone transfers.

Specify SRV2’s IP address (or allow to any server if needed).

✅ Step 6: Verify Zone Replication

On SRV2, refresh the Forward Lookup Zones in DNS Manager.

The contoso.com zone should now appear as a Secondary zone.

Check the Zone Transfer status to ensure it successfully replicated.

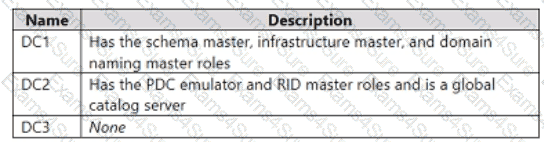

In the Administering Windows Server Hybrid Core Infrastructure materials for AD DS operations, the time service hierarchy is tied to FSMO roles. The guide states that “the domain controller holding the PDC Emulator role acts as the authoritative time source for the domain; other DCs in the domain synchronize time from the PDC emulator, and domain members synchronize from their logon DCs.” For multi-domain forests, it further clarifies that “the PDC Emulator in the forest root domain is the authoritative source for the forest and should be configured to sync with an external, reliable NTP source.”

Regarding management tools, the exam guide specifies that “domain-wide FSMO roles (RID, PDC Emulator, and Infrastructure) are transferred by using Active Directory Users and Computers: right-click the domain, choose Operations Masters, and select the relevant tab.” By contrast, “Schema Master is managed with the Active Directory Schema snap-in and Domain Naming Master with Active Directory Domains and Trusts.”

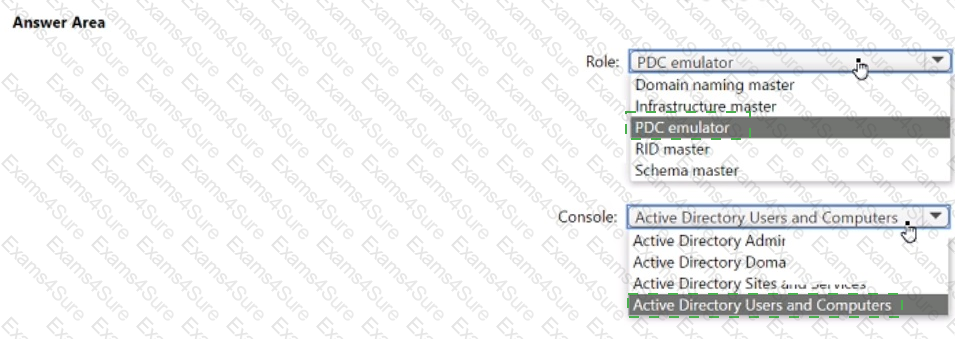

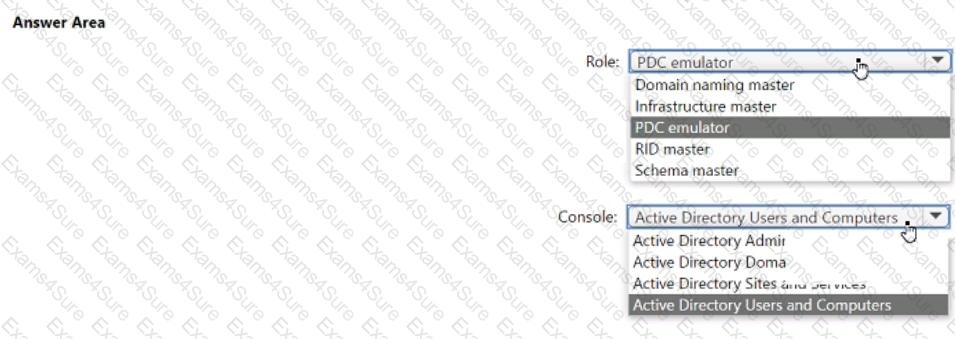

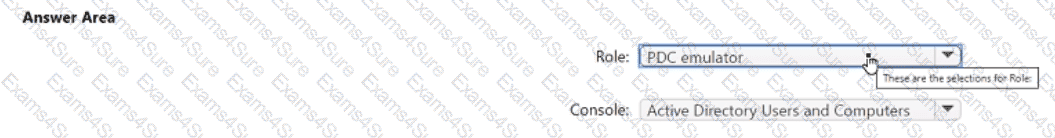

Therefore, to make DC3 the authoritative time server for the domain, you must transfer the PDC Emulator role to DC3 and perform the transfer using Active Directory Users and Computers (ADUC) via the Operations Masters dialog.
