Free Administering Windows Server Hybrid Core Infrastructure Practice Questions

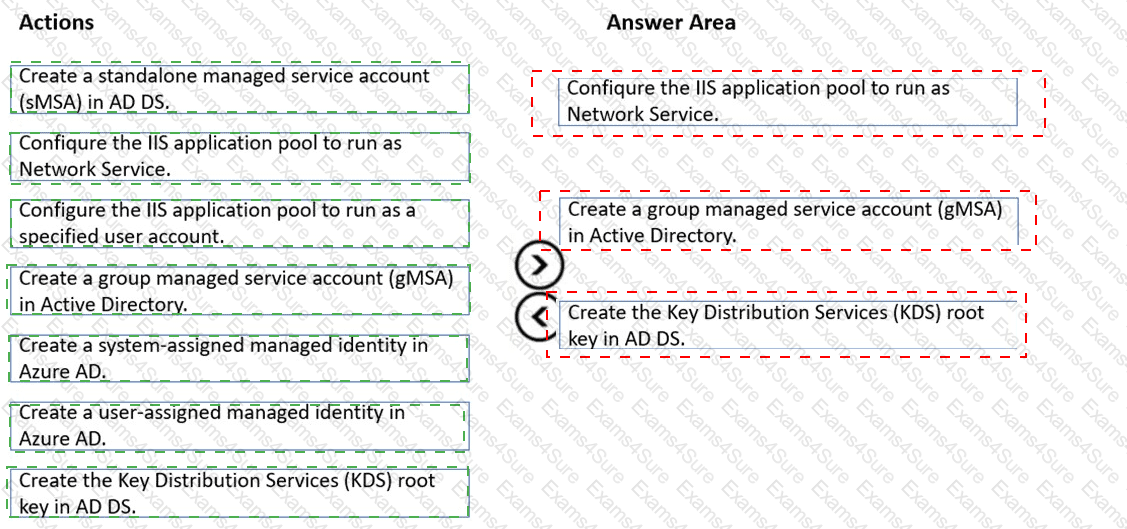

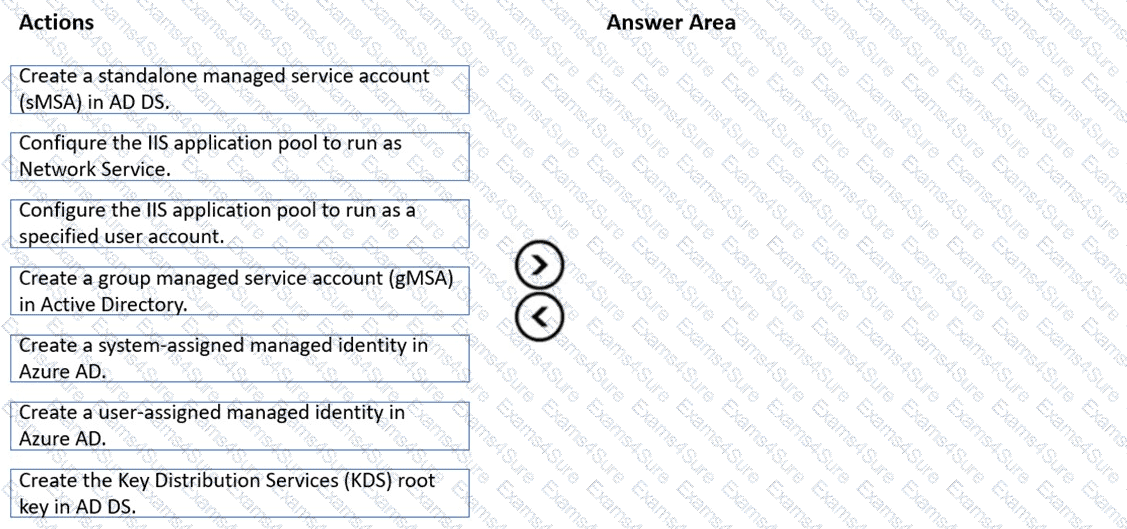

In the Administering Windows Server Hybrid Core Infrastructure materials (AZ-800), Microsoft explains that Group Managed Service Accounts (gMSAs) are designed for services running on multi ple servers and “provide automatic password management, simplified SPN management, and the ability to delegate the management to other administrators.” The guidance further states that before you can create any gMSA, “the domain must have a KDS root key so that the Key Distribution Service can generate and rotate strong, unique passwords for gMSAs on a schedule.” After the KDS root key is created, “use New-ADServiceAccount to create the gMSA and grant the computers (e.g., web servers) permission to retrieve the account password.” For IIS, the course notes specify that a gMSA can be used for app pools: “Configure the IIS application pool identity to a custom account and specify the gMSA name (ending with ‘$’) without a password; the password is managed automa tically by AD and rotates by policy (for example, every 30 days).”

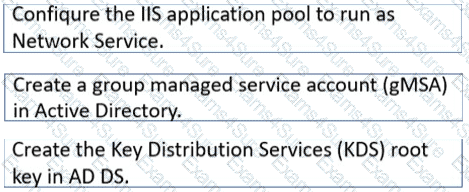

Mapping these requirements to the scenario: Webapp1 runs on WEB1 and WEB2 and must use the same service account with an automatic 30-day password change . Therefore, the correct sequence is: create the KDS root key , create the gMSA , and then set the IIS application pool to run under that account. This fulfills the security requirement while allowing both web servers to share the same, automatically-rotated credentials.

In the Administering Windows Server Hybrid Core Infrastructure guidance for extending AD DS into Azure, Microsoft states that when you place a domain controller in an Azure virtual network you must run DNS on that domain controller and point the VNet to that DNS server: “Domain controllers in Azure IaaS should host the AD-integrated DNS zone, and the virtual network’s DNS server setting must reference those DC/DNS IPs so Azure VMs use AD DNS rat her than the Azure-provided resolver.” The materials also emphasize that Azure’s default DNS cannot host or manage AD DS zones, so custom DNS is required for domain-joined workloads. Therefore, to meet the requirement you (1) install the DNS Server role on DC3 so it can host the corp.fabrikam.com AD-integrated zone (F), and (2) configure the DNS Servers setting on Vnet1 to the IP of DC3 (and any additional DCs), ensuring all Azure VMs in Vnet1 resolve the domain via AD DNS (D). Creating a public Azure DNS zone or a Private DNS zone with the same AD name is not appropriate for AD-integrated name resolution. This design also supports the security requirement of preventing domain controllers from relying on Internet-facing resolvers.

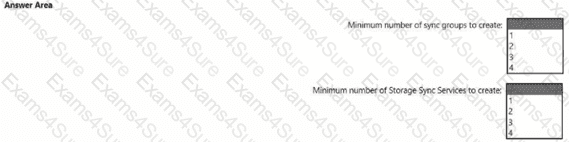

In Azure File Sync architecture (covered in Admin istering Windows Server Hybrid Core Infrastructure under “Implement and manage storage solutions”), the fundamental design points are:

Sync group – “A sync group defines a sync topology. Each sync group contains exactly one cloud endpoint (an Azure file sh are) and one or more server endpoints.” A server endpoint is a folder on a registered Windows Server. A server can participate in multiple sync groups so long as the server endpoints are different paths.

Storage Sync Service – “The Storage Sync Service is the top-level resource that maintains server registrations and houses your sync groups.” A Windows Server registers to one Storage Sync Service at a time, and that service can contain many sync groups and many servers.

Applying these rules to the requirement:

You have three Azure file shares: newyorkfiles, seattlefiles, and companyfiles. Because each sync group maps to one cloud endpoint, you need one sync group per share ⇒ 3 sync groups.

FS1 must sync with newyorkfiles and companyfiles; FS2 must sync with seattlefiles and companyfiles. Since one Storage Sync Service can host multiple sync groups and multiple servers, and a server must be registered to a single service, the most efficient design is a single Storage Sync Service containing all three sync groups and both servers.

In Administering Windows Server Hybrid Core Infrastructure , Microsoft states that high availability for DHCP on Windows Server is achieved by using DHCP failover rather than the legacy split-scope (80/20) model. The guidan ce explains that DHCP failover “ synchronizes lease data between two DHCP servers and can be configured in Load Balance or Hot Standby mode on a per-scope basis,” and that you enable it on each DHCP scope to create a partner relationship that automatically replicates scope configuration and active leases. This meets the requirement to keep address assignment available if one DHCP server is down.

The same materials further note that DHCP broadcasts do not traverse routers; therefore, when the partner server i s reachable across a routed boundary (another site/subnet) , you must configure the router as a DHCP relay (IP helper) to forward DHCPDISCOVER messages to the remote DHCP server(s). The text emphasizes: “When clients and DHCP servers are on different subnet s, configure a relay agent on the router to forward requests to the DHCP server IP addresses.”

Applying this to Fabrikam: create DHCP failover between DHCP1 (Scope1) and DHCP2 (Scope2) ( E ) and configure the routers in New York and Seattle as DHCP relays th at forward to both DHCP servers ( B ). You do not use Failover Clustering for DHCP here, and you do not create extra 25% scopes; those are split-scope practices superseded by DHCP failover.

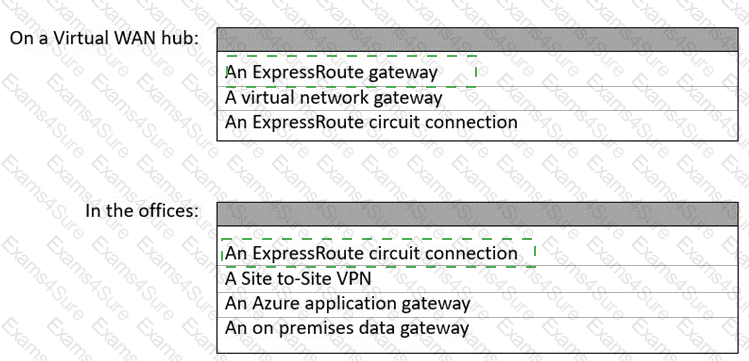

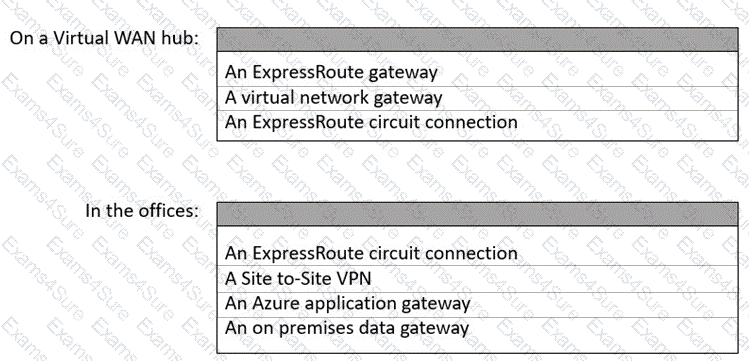

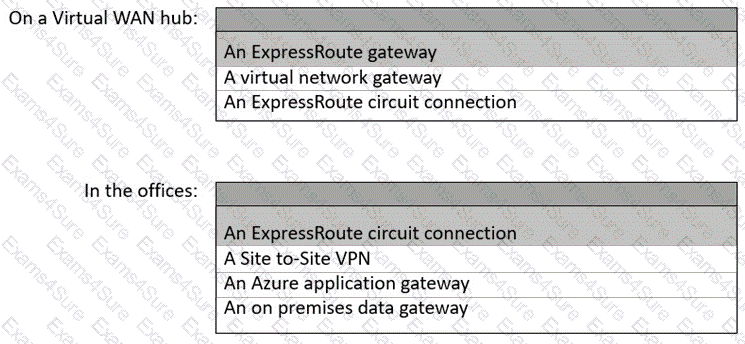

The exam materials for Administering Windows Server Hybrid Core Infrastructure explain that when replacing private WAN links with Azure, Azure Virtual WAN (vWAN) can be used to centralize connectivity. For private connectivity, ExpressRoute integrates directly with a vWAN hub by deploying an ExpressRoute gateway in the hub. The gateway is the Azure resource that terminates ExpressRoute and enables hub-and-spoke routing to connected VNets (such as Vnet1 ). The guides emphasize: “ In a Virtual WAN hub, use the ExpressRoute gateway to connect ExpressRoute circuits and propagate routes acro ss the hub to your virtual networks .”

On-premises, each site (New York and Seattle) requires an ExpressRoute circuit connection provisioned via a connectivity provider. The circuit is the dedicated private connection from the customer edge to Microsoft’s edge and is what the office sites actually use; it’s then linked to the vWAN hub’s ExpressRoute gateway. The same materials note that Site-to-Site VPN is an alternative transport but is not required when ExpressRoute is mandated. Likewise, Application Gateway is a Layer-7 load balancer for HTTP/S traffic, and on-premises data gateway relates to Power BI/Power Platform hybrid connectivity, neither of which establishes network transport between offices and Azure.

Therefore, to meet the requirement “connect both on-premises offices to Vnet1 by using ExpressRoute,” configure an ExpressRoute gateway on the vWAN hub and ExpressRoute circuit connections in the offices.
