H12-821_V1.0 Practice Questions

 LSP Generation in IS-IS

IS-IS routers generate new Link State Packets (LSPs) under the following conditions:

Interface Status Changes : When IS-IS interfaces go up or down, the link state changes, triggering LSP updates.

Periodic Updates : IS-IS periodically regenerates LSPs to ensure link-state information remains synchronized across the network.

Interface Metric Changes : Any modification to interface costs results in a new LSP to reflect the updated cost in the network.

 Incorrect Option

C.

Inter-area IP routes change is incorrect because IS-IS does not inherently differentiate between areas for LSP generation.

 HCIP-Datacom-Core Reference

IS-IS LSP generation rules are detailed in the IS-IS configuration and implementation chapters​​.

DIS Election in IS-IS :

In IS-IS, the Designated Intermediate System (DIS) is elected on broadcast networks to reduce the number of LSAs exchanged and maintain the LSD

B.

The DIS is elected based on priority :

The router with the highest priority is elected as the DIS.

If priorities are equal, the System ID is used as a tie-breaker, and the router with the highest System ID becomes the DIS.

 Neighbor Discovery Protocol (NDP) :

NDP is a key protocol in the IPv6 protocol suite, replacing ARP (Address Resolution Protocol) in IPv4.

It operates using ICMPv6 (Internet Control Message Protocol for IPv6) and is critical for managing interactions between IPv6 nodes on the same link.

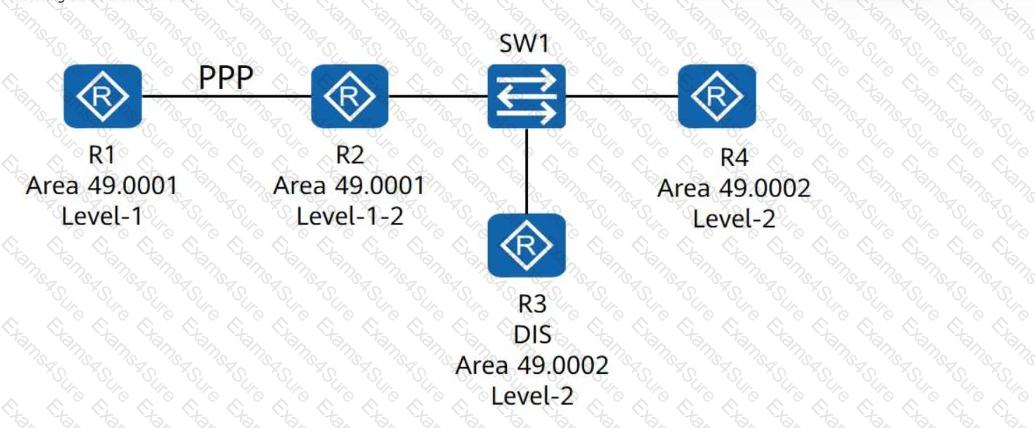

 R3, as the DIS in the Level-2 domain, periodically sends Complete Sequence Number Protocol Data Units (CSNPs) to ensure LSDB synchronization among Level-2 routers.

 R1 and R2 are in a Level-1 domain, and IS-IS requires the receiving router (R2) to acknowledge an LSP from R1 by sending a Partial Sequence Number Protocol Data Unit (PSNP).

 IS-IS LSPs in a broadcast network are sent using multicast, not unicast, making option C incorrect.

 For Level-2 LSPs, acknowledgments are not provided using PSNP by R3; CSNPs are sufficient for synchronization ​.
