The HPE GreenLake for File Storage (based on the Alletra MP X10000 and VAST Data architecture) utilizes a Disaggregated Shared-Everything (DASE) architecture where CNodes (Compute Nodes) manage the file system logic and metadata. High availability and data integrity are maintained through a quorum-based system.

In a standard cluster environment, a strict majority of nodes ($n/2 + 1$) must be operational to maintain the "Quorum," which is the state required to acknowledge I/O and prevent "split-brain" scenarios. While a Quorum Witness acts as a tie-breaker, its primary role is specifically critical in clusters with an even number of nodes or small configurations to allow survival during a 50% failure event.

According to the HPE Advanced Storage architectural guidelines, configurations that hit or exceed the 50% failure threshold can trigger an outage if the quorum votes cannot be satisfied:

Option E (Six CNodes with three failed): In a 6-node cluster, a majority is 4. With exactly 3 nodes failed (50%), the system reaches a "tie" state. Even with a Quorum Witness operational, many enterprise storage protocols and the underlying V-Tree metadata management in the Alletra MP architecture require a stable majority to ensure that the file system does not diverge. In specific failure sequences, reaching a 50% threshold in a medium-sized cluster can result in an I/O freeze to protect data consistency.

Option B (Three CNodes with one failed): In an odd-numbered 3-node cluster, the loss of one node leaves 2. While 2/3 is a majority, the system is now "at-risk." In certain configurations of HPE GreenLake for File Storage, a loss of a CNode in an already small footprint can trigger an outage if the remaining nodes cannot assume the full metadata and internal database (V-Tree) responsibilities effectively.

Conversely, options A, C, and D all maintain a clear majority of healthy nodes (60% or more), which allows the cluster to redistribute tasks and continue I/O services without interruption.

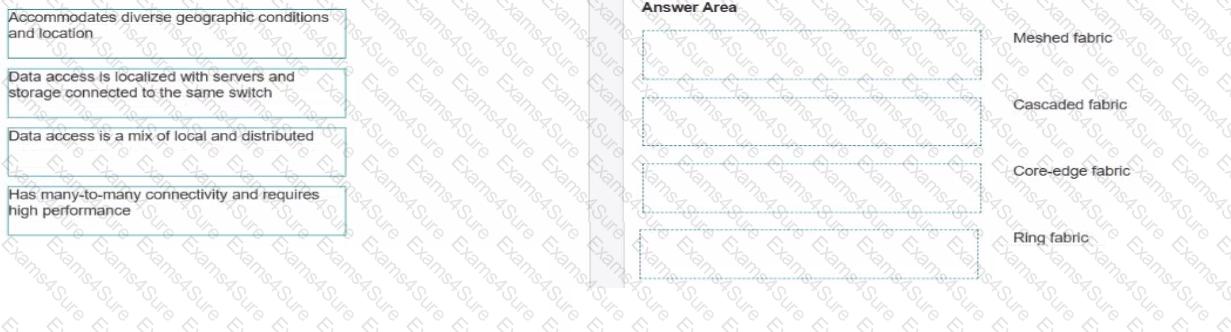

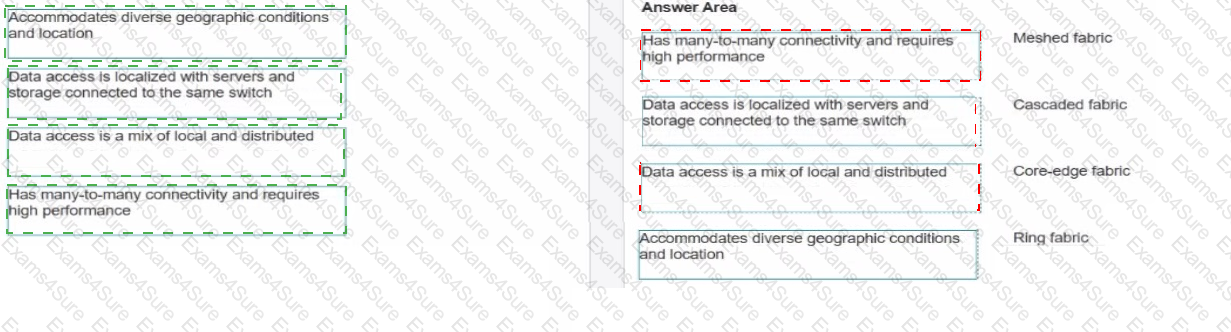

Meshed fabric: Has many-to-many connectivity and requires high performance.

Cascaded fabric: Data access is localized with servers and storage connected to the same switch.

Core-edge fabric: Data access is a mix of local and distributed.

Ring fabric: Accommodates diverse geographic conditions and location.

In the design of modern Storage Area Networks (SANs), selecting the right topology is critical for balancing performance, scalability, and cost. Each of these Brocade/HPE B-series architectures serves a specific workload profile:

Meshed Fabric: This design provides the highest level of redundancy and performance by connecting switches in an "any-to-any" pattern. Because every switch is connected to multiple other switches, it provides many-to-many connectivity and minimized "hop counts," making it ideal for high-performance environments where application traffic is unpredictable and widely distributed.

Cascaded Fabric: The simplest topology, where switches are connected in a serial or daisy-chain fashion. It is most effective in small environments where data access is localized—meaning the server and the storage it needs are physically connected to the same switch, minimizing Inter-Switch Link (ISL) traversal.

Core-Edge Fabric: The standard for enterprise data centers. Servers are connected to "Edge" switches, and storage is connected to a high-capacity "Core". This allows for a mix of local and distributed data access. Large enterprises use this to scale easily by adding edge switches without disrupting the core storage connectivity.

Ring Fabric: By connecting switches in a closed loop, this topology is designed to accommodate diverse geographic conditions. If a single link between two locations fails, traffic can be re-routed the other way around the ring. This provides a cost-effective way to link multiple sites or campus buildings while maintaining fabric integrity.

When competing against IBM FlashSystem, HPE's primary differentiators lie in the intelligence of the management platform and the integration into the broader hybrid cloud ecosystem.

The first major advantage is AIOps for infrastructure, pioneered by HPE InfoSight. While IBM has Storage Insights, HPE InfoSight is widely considered the industry benchmark for deep-stack predictive analytics. It uses machine learning to analyze millions of sensor points across the global install base to predict and prevent up to 86% of problems before they occur. This goes beyond simple storage monitoring; it provides visibility into the "noisy neighbor" VMs and host-side issues that impact storage performance, providing a level of autonomous management that IBM's portfolio currently lacks.

The second advantage is Full stack automation with hybrid cloud. By managing the Alletra 9000 through the HPE GreenLake Data Services Cloud Console (DSCC), the customer transitions from managing a "box" to a cloud-native operational model. This provides a unified API and a consistent management experience whether the data is on-premises or in the cloud. DSCC enables "Intent-Based Provisioning," where the user simply specifies the workload type and the cloud console automatically selects the best-suited array and volume parameters, ensuring optimal performance without manual tuning. This "Cloud Ops" model is a cornerstone of the HPE GreenLake strategy, offering a more streamlined, automated experience than the traditional management software typically associated with the IBM FlashSystem line. While IBM does offer ransomware features (Option C), HPE's focus on AIOps and hybrid cloud integration provides a more transformative operational benefit for most enterprise customers.
