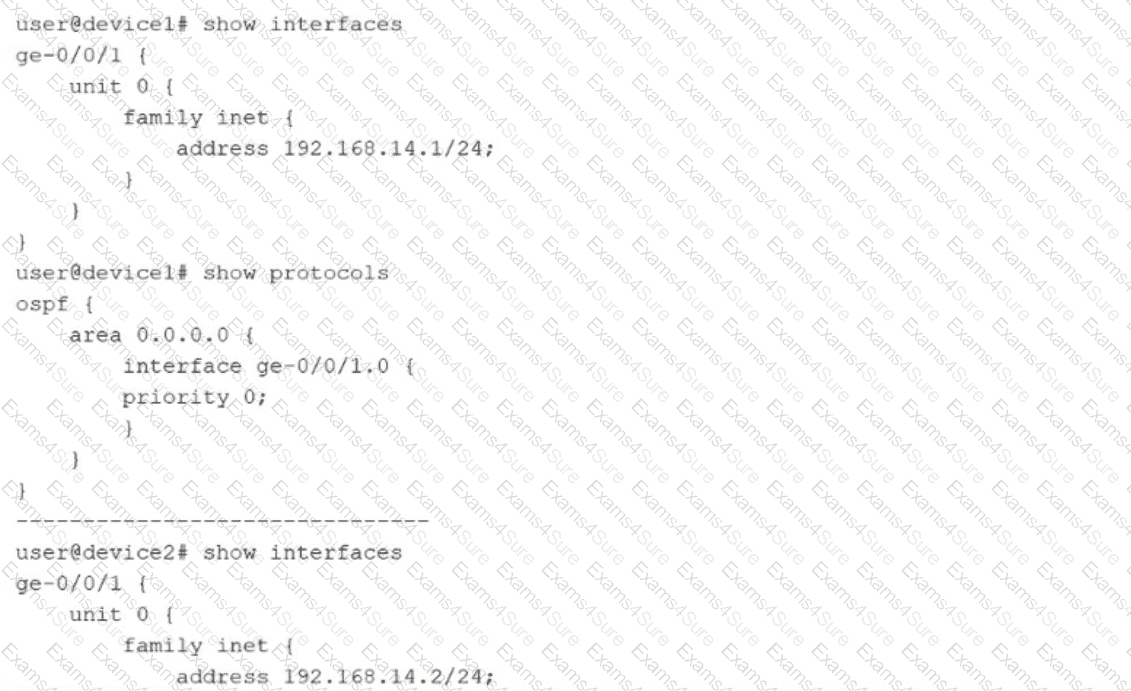

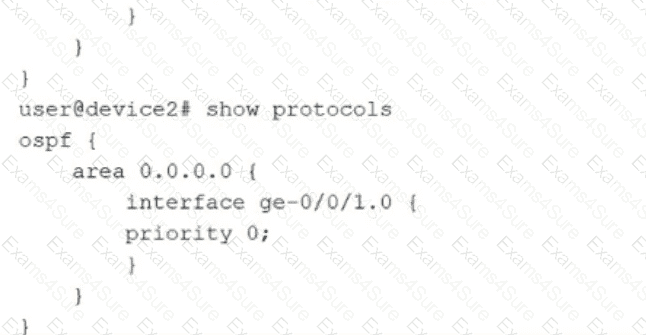

JN0-650 Practice Questions

In Junos OS 24.4, the no-loss forwarding class is used for traffic that requires lossless delivery, such as iSCSI or FCoE, typically in a Data Center Bridging (DCB) environment.

Priority-Based Flow Control (Option C): To guarantee " no-loss " behavior, the switch must support and use Priority-based Flow Control (PFC). PFC allows the switch to send " pause " frames for a specific priority (forwarding class) to prevent buffer overflow and packet drops without affecting other traffic on the same link.

Forwarding Class Sets (Option B): In enhanced Layer 2 software (ELS) versions used by modern QFX and EX series switches, lossless traffic must be managed within forwarding class sets (also known as priority groups). This grouping is necessary to apply specific DCB properties, such as PFC and specific bandwidth guarantees, to the lossless traffic class.

Why A and D are incorrect: Default scheduler maps and default drop profiles do not provide the specialized buffer management or lossless signaling required for this class. Lossless traffic specifically requires the suppression of tail drops rather than standard drop profiles.

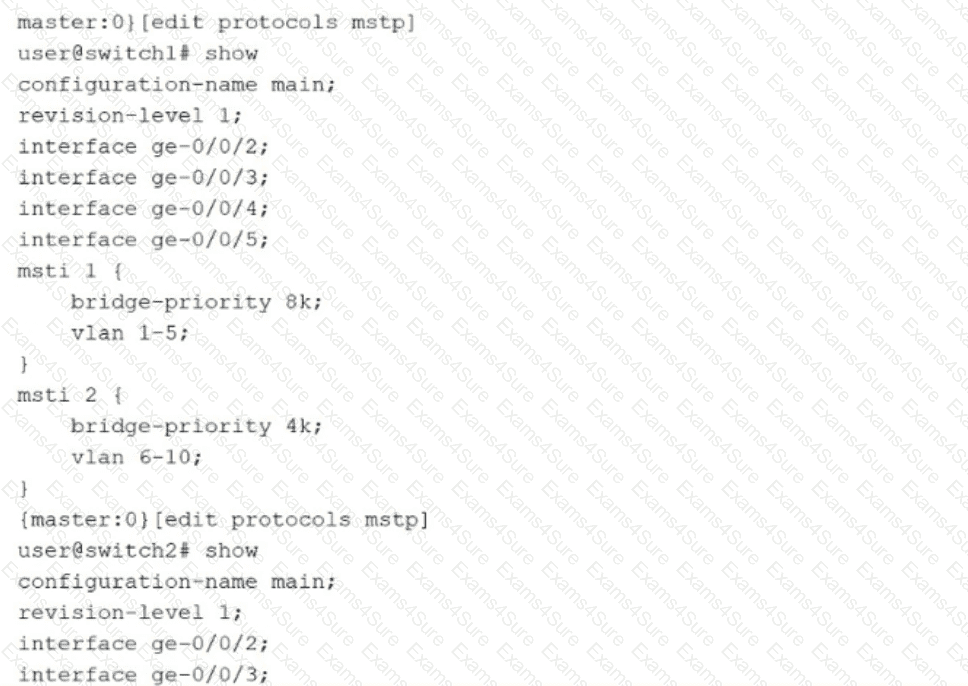

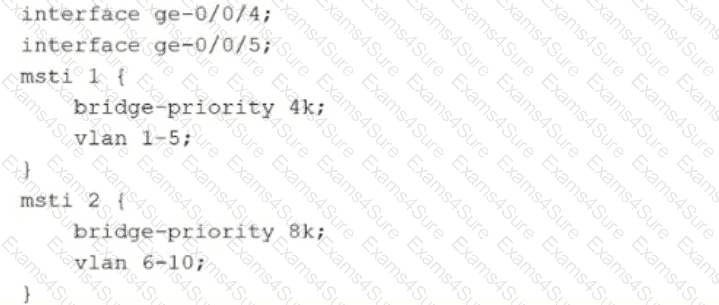

The exhibit shows the MSTP configuration for two switches, switch1 and switch2. MSTP allows you to group multiple VLANs into a single Multiple Spanning Tree Instance (MSTI), enabling different root bridges and topologies for different sets of VLANs.

Root Bridge Election (Option B): For any Spanning Tree instance, the switch with the lowest bridge priority is elected as the root bridge.

For msti 2, switch1 has a priority of 4k (4096), while switch2 has a priority of 8k (8192).

Since 4096 < 8192, switch1 is elected the root bridge for msti 2.

Failover Behavior (Option D): Spanning Tree is designed for redundancy. If a primary root bridge fails, the remaining switches in the network re-elect a new root based on the next lowest priority.

If switch2 goes down, switch1 becomes the only switch in the region.

Regardless of its original priority (4k or 8k), switch1 will take over as the root bridge for both msti 1 and msti 2 because there are no other contenders with a better (lower) priority.

Incorrect Statements: Option A is incorrect because for msti 1, switch2 has the lower priority (4k vs. 8k), making switch2 the root bridge. Option C is incorrect because it contradicts the fundamental high-availability nature of Spanning Tree.

In Junos OS 24.4, Captive Portal is used as a web-based authentication method for Layer 2 network access control, often in environments where 802.1X is not feasible for all users.

Fallback Mechanism (Option D): On EX Series switches, Juniper supports a flexible authentication order. By default, the switch attempts authentication in the order of 802.1X, then MAC RADIUS, and finally Captive Portal. If a client fails both 802.1X and MAC RADIUS, the switch can fall back to Captive Portal to redirect the user to a login page.

MAC Allowlist (Option B): Captive Portal relies on intercepting HTTP/HTTPS traffic to redirect users. However, " headless " devices like printers or cameras lack web browsers and cannot interact with the portal. To accommodate these, Junos allows administrators to configure an authentication allowlist (or whitelist), which identifies these devices by their MAC addresses and permits them to bypass the portal entirely.

Precedence (Option A): This is incorrect because Captive Portal is generally the last method in the default sequence, not the first.

Layer 2 Participation (Option C): While Captive Portal requires a Layer 3 interface (RVI/IRB) for the redirection process, it is explicitly used to control Layer 2 access on EX Series switches.

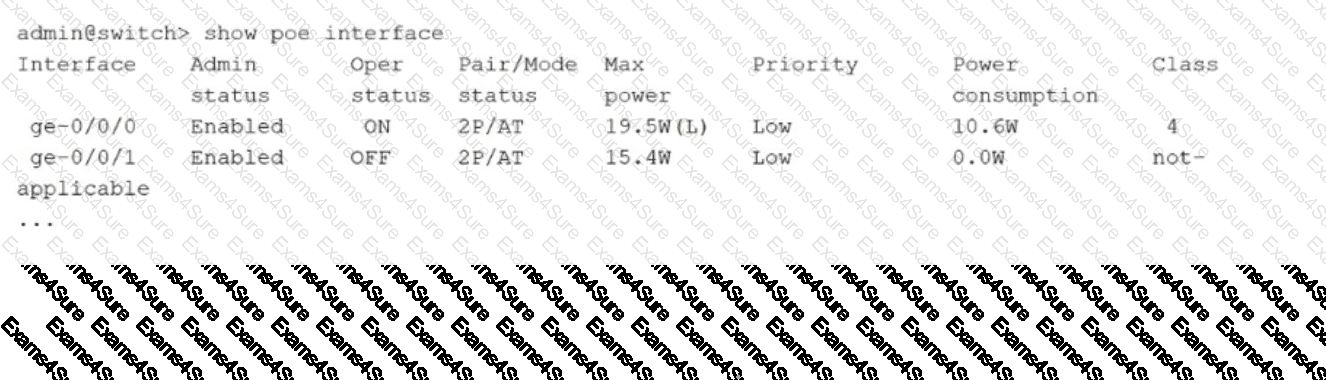

The exhibit shows the output of the show poe interface command on a Juniper switch.

VTEP Power Capabilities (Statement D): The exhibit shows the Pair/Mode as 2P/AT, which refers to the IEEE 802.3at (PoE+) standard. Under this standard, a switch can supply up to 30 W of power per port to attached devices (PDs). * Dynamic Learning (Statement C): Looking at the Max power column for port ge-0/0/0, it shows 19.5W(L). The (L) indicator signifies that the power has been dynamically learned (negotiated) via LLDP or hardware classification, rather than being statically configured by an administrator. Additionally, it has identified the device as Class 4, which is a standard dynamic classification for PoE+ devices.

Why others are incorrect: Statement A (60 W) refers to the 802.3bt (PoE++) standard, which is not indicated here. Statement B is incorrect because the " (L) " confirms the configuration is not static.

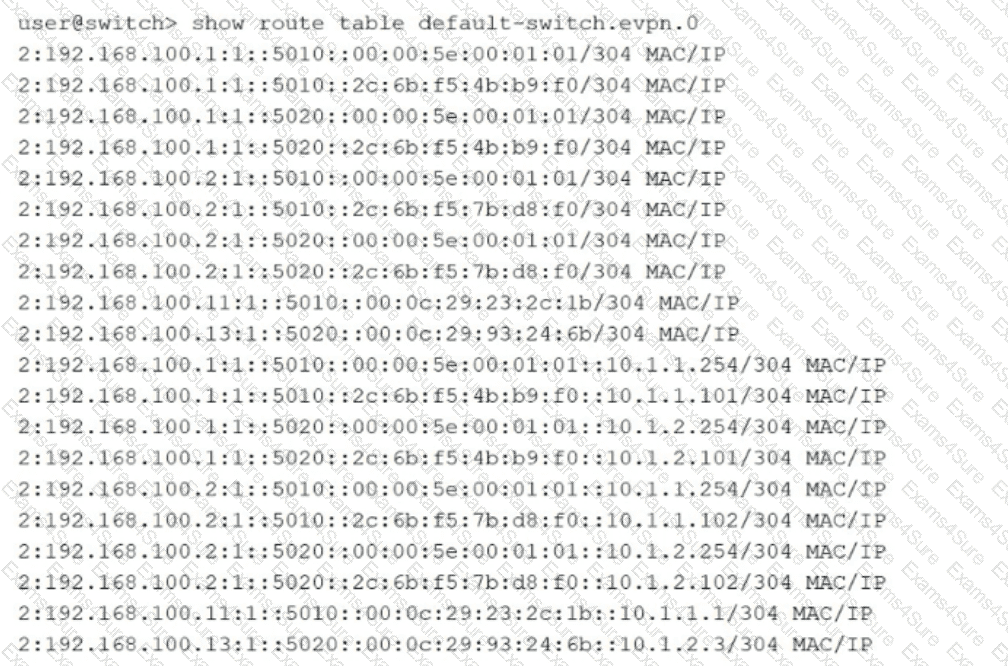

In a three-stage EVPN-VXLAN fabric (Spine-Leaf architecture) where leaf devices perform the gateway services (Edge-Routed Bridging or ERB):

VTEP Functionality (Option B): Leaf devices act as VXLAN Tunnel End Points (VTEPs). They are responsible for encapsulating Ethernet frames from locally connected hosts into VXLAN packets for transport across the IP fabric and de-encapsulating incoming VXLAN packets.

Fabric Support (Option C): In a standard Juniper IP fabric design, both the leaf and spine devices are typically expected to support VXLAN and EVPN capabilities. While spines in an ERB design might only perform IP forwarding in the underlay, they often participate in the BGP control plane (as Route Reflectors) or provide the ability to transition to Centrally-Routed Bridging (CRB) where spines would act as gateways.

Incorrect Options: Option A is incorrect because the entire fabric infrastructure must be " VXLAN aware " in terms of MTU settings and routing capability to support the overlay. Option D is incorrect because in an ERB design, the spine devices are high-speed transit nodes and do not terminate VXLAN tunnels; only the edge (leaf) devices act as VTEPs.

The exhibit illustrates a standard end-to-end Class of Service (CoS) path consisting of an edge router (R1) and core/intermediate routers (R2 and R3).

Edge Classification (Option B): The scenario specifies that video traffic enters the network without any class-of-service markings. Because there are no DSCP or 802.1p bits to inspect, the ingress router (R1) cannot use simple Behavior Aggregate (BA) classification. Instead, it must use Multifield (MF) classification. MF classification allows the router to look deeper into the packet (Source/Destination IP, Protocol, Port numbers) to identify the video stream and assign it to a specific forwarding class. * Core Classification (Option D): Once R1 has identified the traffic, it will typically apply a rewrite rule on its egress interface to mark the packets with a specific CoS value (like a DSCP code). Consequently, the downstream routers (R2 and R3) do not need to perform expensive deep-packet inspection again. They can use Behavior Aggregate (BA) classification, which simply looks at the markings in the packet header to determine the appropriate forwarding priority.

Option A and C: These are incorrect because BA classification is impossible on unmarked ingress traffic, and performing MF classification in the core is inefficient and not a recommended Juniper design practice for high-speed transit.
