NSE4_FGT_AD-7.6 Practice Questions

According to the FortiOS 7.6 Study Guide and Parallel Path Processing documentation, flow-based antivirus inspection is designed to provide security with minimal impact on performance.

First, a defining characteristic of modern flow-based AV (specifically in its " hybrid " mode) is that FortiGate buffers the whole file but transmits to the client at the same time (Statement A). This behavior allows the client to start receiving data immediately to prevent session timeouts, while the FortiGate reassembles the file in memory to perform a signature check before the final packet is released.

Second, starting with recent FortiOS versions including 7.6, flow-based inspection uses a hybrid of the scanning modes (Statement B). Previously, flow mode offered " Quick " or " Full " scans; now, it combines these techniques to offer a balance between the speed of stream-based scanning and the thoroughness of archive inspection.

Third, the primary motivation for selecting this mode is that flow-based inspection optimizes performance compared to proxy-based inspection (Statement D). It processes traffic in a single pass using the IPS engine, avoiding the overhead associated with the WAD (proxy) process. Statement C is incorrect because if a virus is detected, the last packet is withheld and the connection is reset to prevent the file from being completed. Statement E is less accurate as the IPS engine loads the AV engine to perform the task rather than acting as a " standalone " entity in the context of file scanning.

In FortiOS 7.6, SD-WAN Performance SLAs are used to measure link quality and influence SD-WAN rule decisions. The following three statements are true.

C.

True

SD-WAN Performance SLAs allow administrators to configure:

Latency

Jitter

Packet loss

Mean Opinion Score (MOS) (for voice)

Threshold values for these metrics are fully configurable per SL

A.

This is explicitly documented in the SD-WAN Performance SLA configuration section.

D.

True

Performance SLAs are commonly used with the Lowest Cost (SLA-based) strategy.

In this strategy:

FortiGate selects the lowest-cost link that meets the SLA requirements.

If a link violates the SLA, it is excluded from selection.

E.

True

FortiOS supports:

Active probing (synthetic probes such as ping/HTTP)

Passive measurement (based on real traffic statistics)

Administrators can choose how SLAs are measured depending on the deployment and requirements.

Why the other options are incorrect

A.

Incorrect

SLAs measure packet loss, latency, and jitter.

Session loss is not an SLA metric in FortiOS.

B.

Incorrect

Performance SLAs monitor link quality, not FortiGate system health or device state.

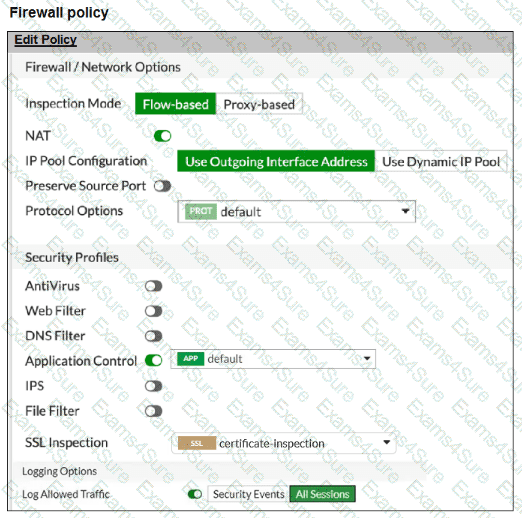

From the exhibits:

The firewall policy has Application Control enabled and uses certificate-inspection for SSL inspection.

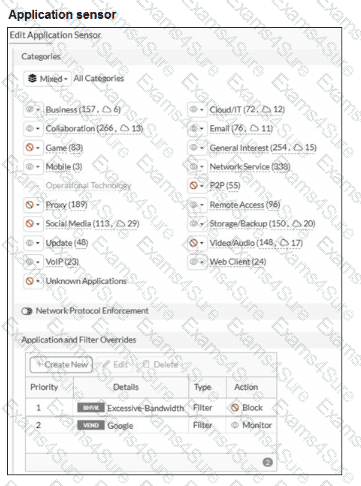

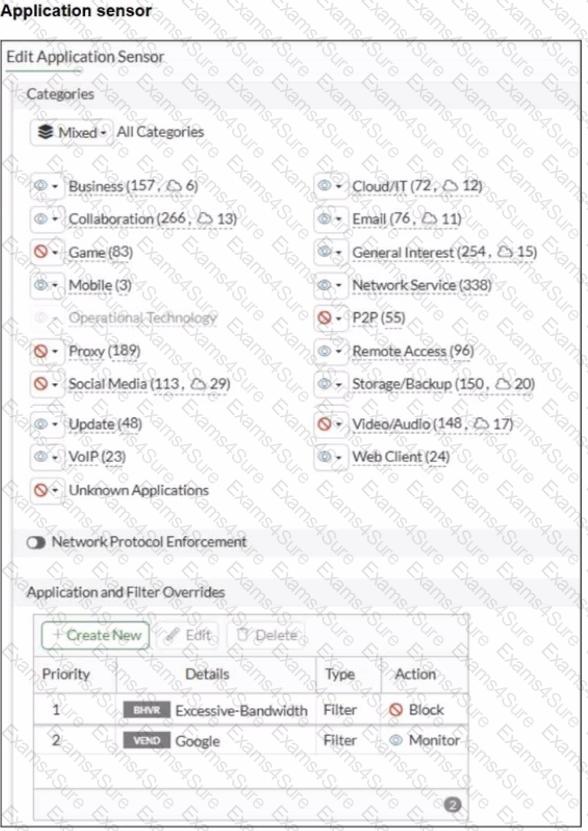

The application sensor has Application and Filter Overrides with the following order (priority):

Excessive-Bandwidth with action Block

Google (vendor filter) with action Monitor

In FortiOS, Application and Filter Overrides are evaluated by priority (top-down). The first matching override is applied. If traffic matches an earlier override with Block, it will be blocked even if a later override would Monitor/Allow it.

Why Google apps fail while www.fortinet.com works:

Many Google applications can be detected as (or can trigger) the Excessive-Bandwidth behavior/signature depending on the specific service and traffic pattern.

Because Excessive-Bandwidth (Block) is above Google (Monitor), Google-related traffic may match the first rule and be blocked before the Google override is evaluated.

Access to www.fortinet.com works because that traffic is not matching the Excessive-Bandwidth override.

Therefore, to resolve:

B.

This ensures Google matches the Google override before any broader blocking override is applied.

E.

This explicitly permits Google applications once the higher-priority match occurs (stronger than Monitor for troubleshooting and ensuring access).

Why the other options are not the best fit here:

A (deep-content inspection) can help identify more HTTPS applications, but the exhibit already shows a specific Google override configured; the immediate issue is the override evaluation order and action.

C relates to Web Filter URL categories, but the problem is occurring under Application Control behavior/vendor overrides.

D (flow-based) is not required to fix an override priority/action conflict.

“To successfully form an HA cluster, you must ensure that the members have the same:

• Model: hardware model or VM model

• Firmware version

• Licensing: includes the FortiGuard license, virtual domain (VDOM) license, FortiClient license, and so on

• Hard drive configuration: the same number and size of drives and partitions

• Operating mode: the operating mode—NAT mode or transparent mode—of the management VDOM.”

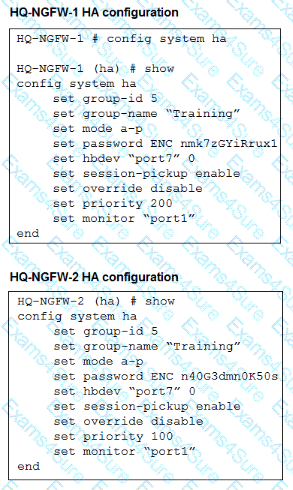

“From a configuration and setup point of view, you must ensure that the HA settings on each member have the same group ID , group name, password, and heartbeat interface settings. Try to place all heartbeat interfaces in the same broadcast domain , or for two-member clusters, connect them directly.”

Technical Deep Dive:

The correct answers are A and D .

A is correct because FGCP cluster formation requires matching HA parameters, and group ID is explicitly one of them. If the group ID differs, the units will not consider each other part of the same cluster during HA discovery and election.

D is correct because FortiGate HA expects hardware parity in critical platform characteristics, including hard drive configuration . If disk layout differs, the members do not satisfy the HA formation prerequisites.

B is incorrect because the study guide does not require heartbeat interfaces to be in the same IP subnet. The requirement is that heartbeat links be in the same broadcast domain , or directly connected in a two-node design. In practice, heartbeat links are Layer 2 adjacency links; IP subnet matching is not the stated requirement.

C is incorrect because the guide does not say both units must start with the same number of configured VDOMs. What must match is the licensing level and the operating mode of the management VDOM . After cluster formation, the primary synchronizes its configuration to the secondary.

A practical verification set before forming FGCP HA is:

get system status

show system ha

diagnose sys ha status

Operationally, FGCP then uses the heartbeat links for member discovery, health monitoring, election, and config/session synchronization. On supported hardware, session forwarding and HA processing can still benefit from FortiGate’s ASIC-assisted architecture, but HA state, config sync, and election logic remain control-plane functions handled by FortiOS.

Based on the FortiOS 7.6 Administrator Guide regarding Fortinet Single Sign-On (FSSO) polling modes, the agentless polling mode has specific technical characteristics:

SMB Protocol Usage (Statement B is True):

In agentless polling mode, the FortiGate unit itself acts as the collector.

It establishes direct connections to the Windows Domain Controllers (DCs) using the SMB (Server Message Block) protocol, typically over TCP port 445, to read the Windows Security Event logs.

This allows FortiGate to parse login event IDs (such as 4768 and 4769) to identify users and their corresponding IP addresses without needing an external collector agent installed on a server.

Workstation Check Support (Statement C is True):

One of the primary limitations of the agentless polling mode compared to the agent-based mode is the lack of workstation verification.

In agentless mode, FortiGate does not perform " workstation checks " or " dead entry checks " . This means it cannot proactively verify if a user is still logged into a specific workstation after the initial logon event is recorded, which can lead to stale entries if a user logs off without a corresponding event being captured.

Why other options are incorrect:

Option A: In agentless mode, FortiGate (the FSSO daemon) performs the collection itself; it does not use the AD server as a " collector agent " in the functional sense of FSSO architecture.

Option D: While FortiGate uses LDAP to retrieve group membership information once a user is identified, it does not " direct " a collector agent to a remote LDAP server, as there is no external collector agent involved in this specific mode.

“Authentication-wise, both versions support PSK and certificate signature . Although only IKEv1 supports XAuth ...”

“Now, you will learn about the Authentication section in phase 1 configuration:

• Method: FortiGate supports two authentication methods: Pre-shared Key and Signature. When you select Pre-shared Key, you must configure both peers with the same pre-shared key. When you select Signature, phase 1 authentication is based on digital certificate signatures.”

“The purpose of phase 1 is to authenticate peers and set up a secure channel... To authenticate each other, the peers use two methods: pre-shared key or digital signature . You can also enable an additional authentication method, XAuth, to enhance authentication. ”

“A common use of the IPsec wizard is for configuring a remote access VPN for FortiClient users. The wizard enables IKE mode config, XAuth , and other appropriate settings for FortiClient users.”

Technical Deep Dive:

The correct answers are C and D .

D is correct because FortiGate supports the two primary IKEv1 authentication methods: pre-shared key and certificate signature . That is explicitly stated in the study guide.

C is also correct because FortiGate supports XAuth with IKEv1 as an additional authentication mechanism. In practice, XAuth is used to request extra user credentials such as a username and password , especially in remote-access VPN deployments such as FortiClient.

Why the other options are incorrect:

A is incorrect because when using Signature , certificate-based authentication is in use. The study guide states that digital signature validation depends on the relevant certificates and CA trust chain being present. It is not a certificate-free method.

B is incorrect because “fewer packets are exchanged” is a characteristic of aggressive mode , not XAuth. XAuth enhances authentication; it is not the feature that makes IKE negotiation faster.

So the two supported IKEv1 authentication features are:

Extended authentication (XAuth) to request the remote peer to provide a username and password

Pre-shared key and certificate signature as authentication methods
