Which three factors about SLA targets and SD-WAN rules should you consider when configuring SD-WAN rules? (Choose three.)

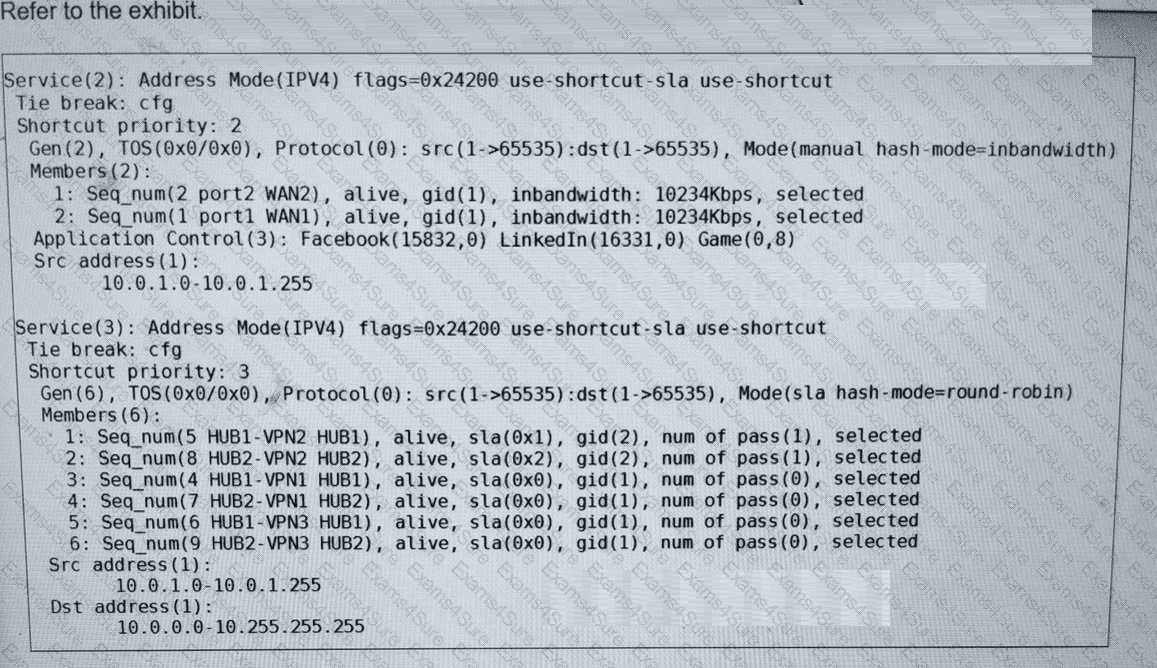

Refer to the exhibit. The administrator configured two SD-WAN rules to load balance the traffic. Which interfaces does FortiGate use to steer the traffic from 10.0.1.124 to 10.0.0.254? Choose one answer.
Exhibit 1
An SD-WAN member is no longer used to steer SD-WAN traffic. The administrator updated the SD-WAN configuration and deleted the unused member. After the configuration update, users report that some destinations are unreachable. You confirm that the affected flow does not match an SD-WAN rule. What could be a possible cause of the traffic interruption?

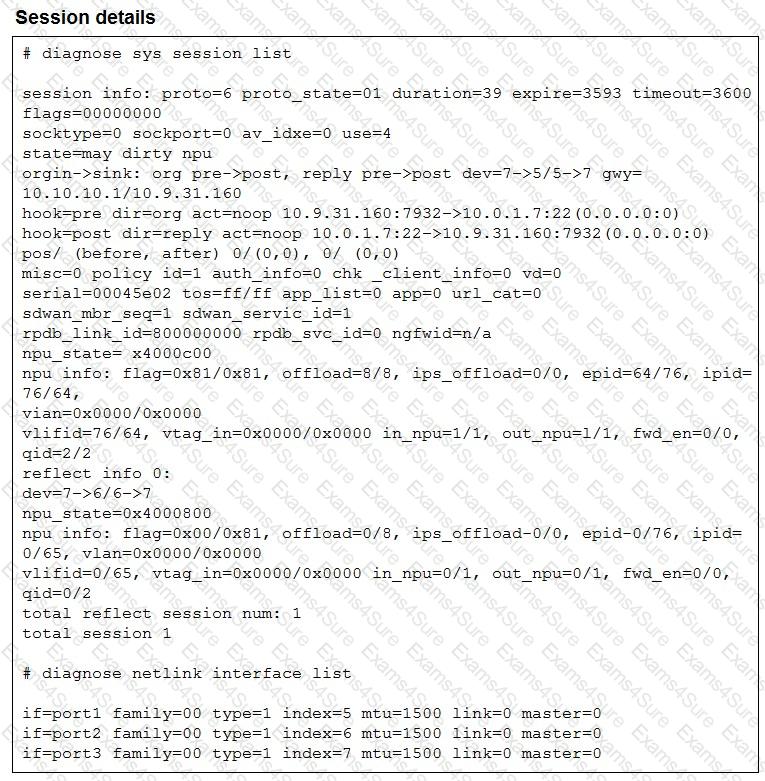

Refer to the exhibit. The exhibit shows the details of a session and the index numbers of some relevant interfaces on a FortiGate device that supports hardware offloading. Based on the information shown in the exhibits, which two conclusions can you draw? (Choose two.)
Exhibit 1
What is the benefit of branch on-ramp deployment with FortiSASE? (Choose one answer.)

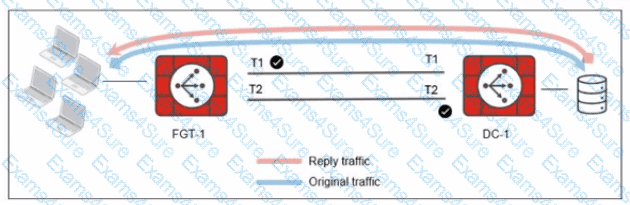

Refer to the exhibit. The administrator analyzed the traffic between a branch FortiGate and the server located in the data center, and noticed the behavior shown in the diagram. When the LAN clients located behind FGT1 establish a session to a server behind DC-1, the administrator observes that, on DC-1, the reply traffic is routed overT2. even though T1 is the preferred member in the matching SD-WAN rule. What can the administrator do to instruct DC-1 to route the reply traffic through the member with the best performance?
Exhibit 1

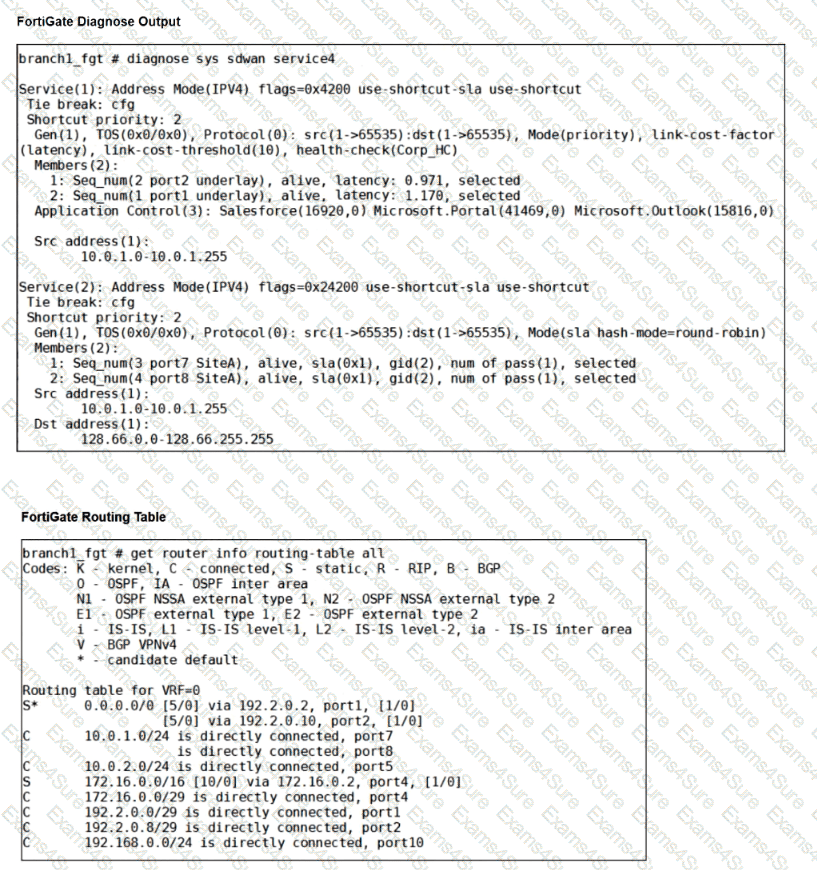

Refer to the exhibit.
How does FortiGate handle the ICMP traffic with the source IP address 10.0.1.125 and the destination IP address 128.66.0.125?
You configure the overlay tunnels for an SD-WAN hub-and-spoke topology defined with IPsec tunnels, BGP on loopback, and dynamic BGP.
Which are two recommended IPsec settings for this topology? (Choose two.)
When you use the command diagnose sys session list, how do you identify the sessions that correspond to traffic steered according to SD-WAN rules?
You manage an SD-WAN topology. You will soon deploy 50 new branches. Which three tasks can you do in advance to simplify this deployment? (Choose three.)
Exam style questions across every NSE7_SSE_AR-26 domain
Last Update 1 hour ago
Total Questions : 110
Start with our free NSE7_SSE_AR-26 practice questions, carefully crafted to mirror the domains, phrasing, and difficulty of the real NSE 7 Network Security Architect exam. Each NSE7_SSE_AR-26 exam question comes with a detailed rationale that explains not just which answer is correct but why the others fall short. That's how concepts stick. Use the free set to benchmark yourself: identify your Fortinet weak domains, see where you're losing marks, and build a focused study plan in minutes.
