300-815 Practice Questions
Implementing Cisco Advanced Call Control and Mobility Services (CLACCM)
Last Update 1 day ago
Total Questions : 242
Dive into our fully updated and stable 300-815 practice test platform, featuring all the latest CCNP Collaboration exam questions added this week. Our preparation tool is more than just a Cisco study aid; it's a strategic advantage.
Our free CCNP Collaboration practice questions crafted to reflect the domains and difficulty of the actual exam. The detailed rationales explain the 'why' behind each answer, reinforcing key concepts about 300-815. Use this test to pinpoint which areas you need to focus your study on.

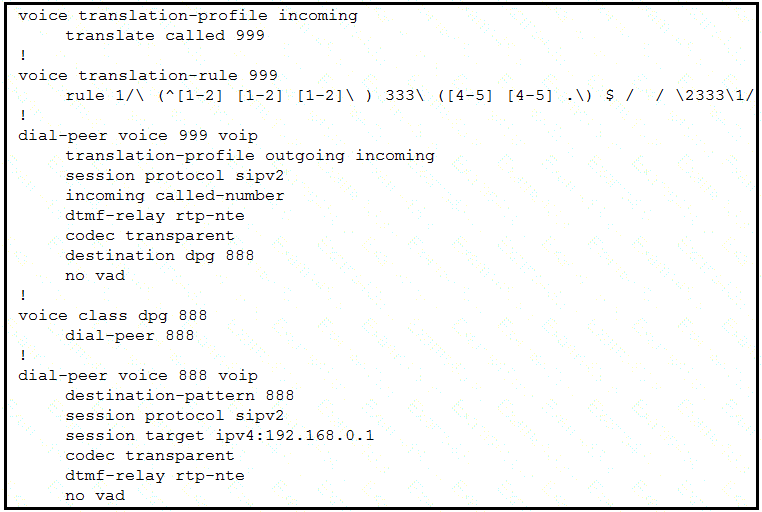

Refer to the exhibit.
Calls incoming from the provider are not working through newly set up Cisco Unified Border Element. Provider engineers get the 404 Not Found SIP message. Incoming calls are coming from the provider with called number “222333444” and Cisco Unified Communications Manager is expecting the called number to be delivered as “444333222”. The administrator already verified that the IP address of the Cisco Unified CM is set up correctly and there are no dial peers configured other than those shown in the exhibit. Which action must the administrator take to fix the issue?
When an administrator troubleshoots H.323 call setup, which message gives an alert that the called party is being notified about the call?
Some users report poor quality when they travel to another continent and make calls. This issue applies only to one continent and not to others, where typically the dialing is fast and quality is clear. Users experience the same result at home when they call the same numbers in that specific continent. It seems like some users do not exist in the correct PSTN gateway when making calls to a specific country. The company is using TEHO to save on the cost of international or long-distance calling.
They are also using a globalized dial plan. What is the cause of the issue?
A new deployment is using MVA for a specific user on the sales team, but the user is having issues when dialing DTM
F.
Which DTMF method must be configured in resolve the issue?The administrator of ABC company is troubleshooting a one-way audio issue for a call that uses H.323 protocol (slow-start mode). The administrator requests that you provide the IP and port information of the Real- Time Transport Protocol traffic that had the one-way audio call.
You gather the H.225 and H.245 messages for one of the one-way audio calls. Where can you find the RTP IP and port information for both sides? (Note: This call flow has not invoked any media resources like MTP or transcoders).

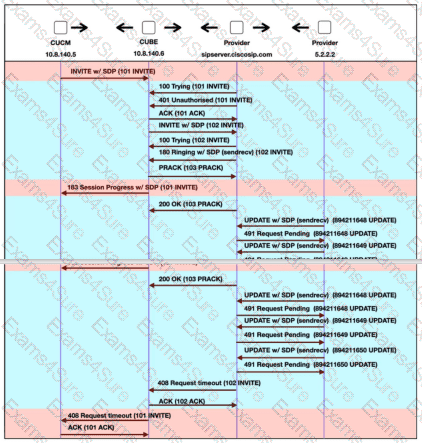

Refer to the exhibit.
A Cisco Unified Border Element continues to send 180/183 with the required: 100rel header to Cisco UCM. and the call eventually disconnects How is the issue resolved?
An engineer must configure a Cisco UCM hunt list so that calls to users in a line group are routed to the first idle user and then the next. Which distribution algorithm must be configured to accomplish this task?

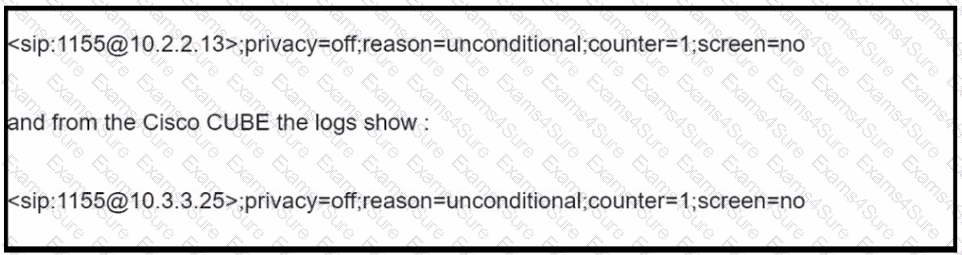

Refer to the exhibit. Users report that outgoing calls do not work on the new SIP trunk for outgoing calls. The solution consists of a Cisco UCM Cluster linked to a Cisco Unified Border Element where the SIP trunk is terminated. The provider required 10 digits. The logs show a line going toward the Cisco Unified Border Element. Which code snippet must be added to the configuration to meet the requirement?

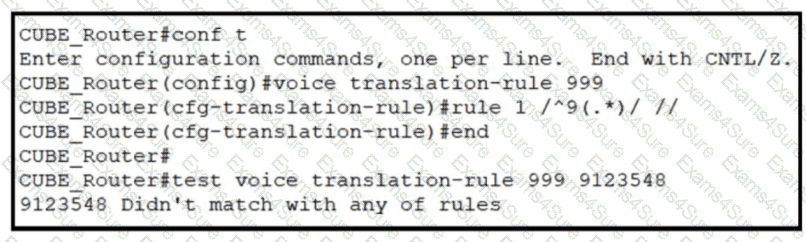

Refer to the exhibit.
Which change to the translation rule is needed to strip only the leading 9 from the digit string 9123548?
