AI-900 Practice Questions

Text extraction.

According to the Microsoft Azure AI Fundamentals (AI-900) study guide and Microsoft Learn documentation for Azure AI Vision (formerly Computer Vision), text extraction—also known as Optical Character Recognition (OCR)—is the computer vision capability that detects and extracts printed or handwritten text from images and video frames.

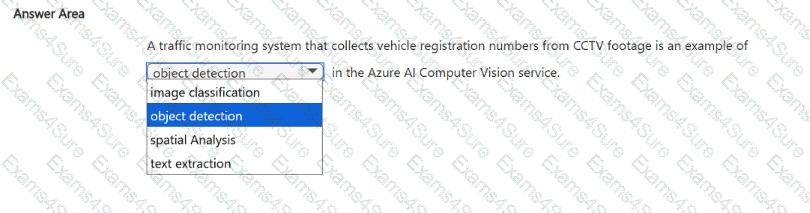

In this scenario, a traffic monitoring system collects vehicle registration numbers (license plates) from CCTV footage. These registration numbers are alphanumeric text that must be read and converted into digital form for processing, storage, or analysis. The Azure AI Vision service’s OCR (text extraction) feature performs this function. It analyzes each frame from the video feed, detects text regions (the license plates), and converts the visual text into machine-readable text data.

This process is widely used in Automatic Number Plate Recognition (ANPR) systems that support law enforcement, toll booths, and parking management solutions. The OCR model can handle variations in font, lighting, and angle to accurately extract license plate numbers.

The other options describe different vision capabilities:

Image classification assigns an image to a general category (e.g., “car,” “truck,” or “bike”), not text extraction.

Object detection identifies and locates objects in images using bounding boxes (e.g., detecting the car itself), but not the text written on the car.

Spatial analysis tracks people or objects in a defined physical space (e.g., counting individuals entering a building), not reading text.

Therefore, for a traffic monitoring system that identifies vehicle registration numbers from CCTV footage, the most accurate Azure AI Vision capability is Text extraction (OCR).

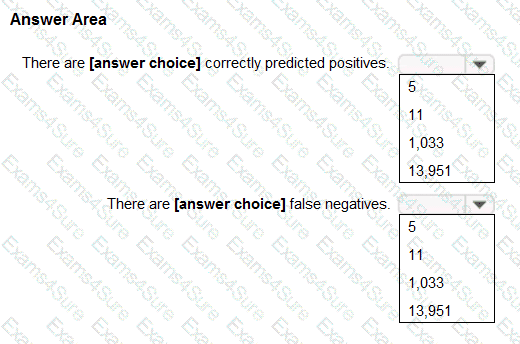

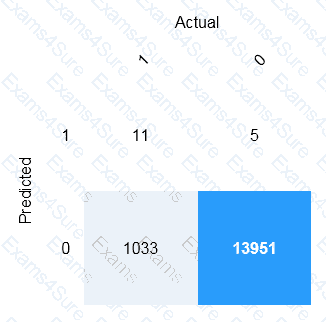

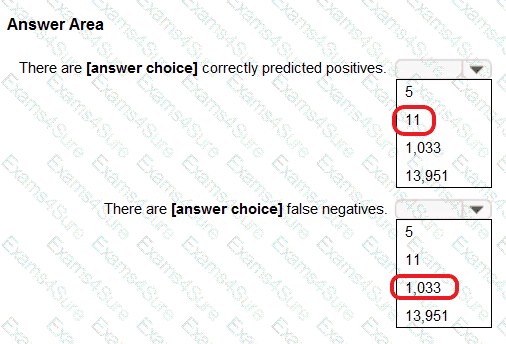

Box 1: 11

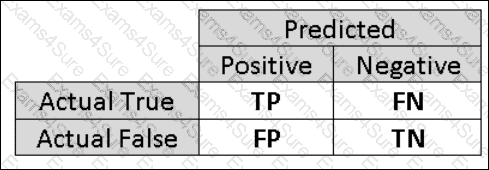

TP = True Positive.

The class labels in the training set can take on only two possible values, which we usually refer to as positive or negative. The positive and negative instances that a classifier predicts correctly are called true positives (TP) and true negatives (TN), respectively. Similarly, the incorrectly classified instances are called false positives (FP) and false negatives (FN).

Box 2: 1,033

FN = False Negative

In Azure Machine Learning designer, a low-code drag-and-drop interface, users can visually build machine learning workflows. According to the AI-900 study guide and Microsoft Learn module “Create and publish models with Azure Machine Learning designer”, two key components that can be dragged onto the designer canvas are datasets and modules.

Datasets (A): These are collections of data that serve as the input for training or evaluating models. They can be registered in the workspace and then dragged onto the canvas for use in transformations or model training.

Modules (D): These are prebuilt processing and modeling components that perform operations such as data cleaning, feature engineering, model training, and evaluation. Examples include “Split Data,” “Train Model,” and “Evaluate Model.”

Compute (B) and Pipeline (C) are not drag-and-drop items within the designer. Compute targets are infrastructure resources used to run the pipeline, while a pipeline represents the overall workflow, not a component that can be added like a dataset or module.

Hence, the correct answers are

A.

D.

These answers align with the Microsoft Azure AI Fundamentals (AI-900) Official Study Guide and the Microsoft Learn module “Explore conversational AI in Microsoft Azure.”

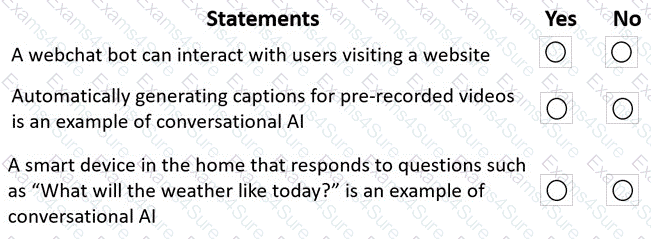

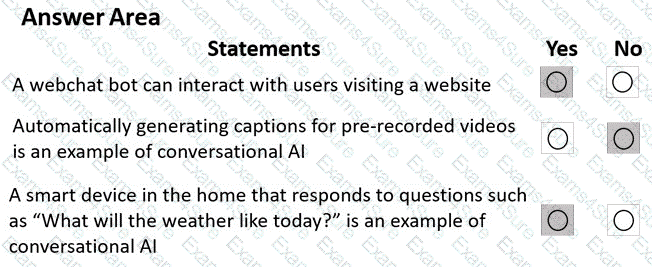

1. A webchat bot can interact with users visiting a website → Yes

This statement is true. The Azure Bot Service allows developers to create intelligent chatbots that can be integrated into a webchat interface. This enables visitors to interact with the bot directly from a website, asking questions and receiving automated responses. This is a typical use case of conversational AI, where natural language processing (NLP) is used to interpret and respond to user input conversationally.

2. Automatically generating captions for pre-recorded videos is an example of conversational AI → No

This statement is false. Automatically generating captions from video content is an example of speech-to-text (speech recognition) technology, not conversational AI. While it uses AI to convert spoken words into text, it lacks the two-way interactive communication characteristic of conversational AI. This task is typically handled by the Azure AI Speech service, which transcribes spoken content.

3. A smart device in the home that responds to questions such as “What will the weather be like today?” is an example of conversational AI → Yes

This statement is true. Smart home assistants that engage in dialogue with users are powered by conversational AI. These devices use speech recognition to understand spoken input, natural language understanding (NLU) to determine intent, and speech synthesis (text-to-speech) to respond audibly. This represents the full conversational AI loop, where machines communicate naturally with humans.

According to the Microsoft Azure AI Fundamentals (AI-900) official study guide and the Microsoft Learn module “Identify features of common machine learning types”, a regression model is a type of supervised machine learning model that is used to predict continuous numeric values based on one or more input variables (features).

In supervised learning, models are trained using labeled data, where each input record has a known target value (label). For regression specifically, the label represents a numeric quantity — such as price, age, temperature, or sales figures. The model learns to approximate a function that maps input variables to numeric outputs.

For example:

Predicting house prices based on size, location, and number of rooms.

Predicting monthly sales revenue from marketing spend and seasonality.

Forecasting temperature based on historical weather data.

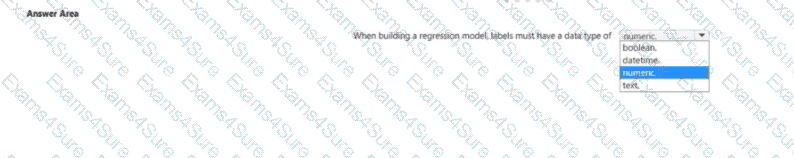

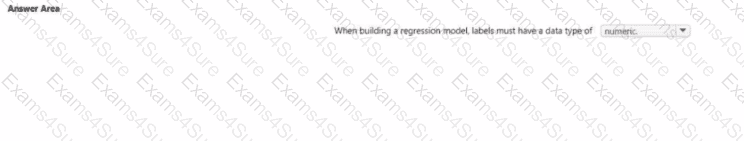

In Azure Machine Learning Designer and AutoML, when building a regression model, the label column must therefore be of numeric data type (integer or float). If the label were categorical (for example, “yes/no” or “approved/denied”), the appropriate model type would be classification, not regression.

To contrast with other options:

Boolean – used in binary classification problems (true/false outcomes).

Datetime – used for time series forecasting, not standard regression labels.

Text – used as input features for NLP models, not as regression targets.

Hence, when configuring a regression task in Azure, ensuring the target variable (label) is numeric is a fundamental requirement. The model’s performance metrics—such as Mean Absolute Error (MAE), Root Mean Squared Error (RMSE), and R²—also rely on numeric computations.

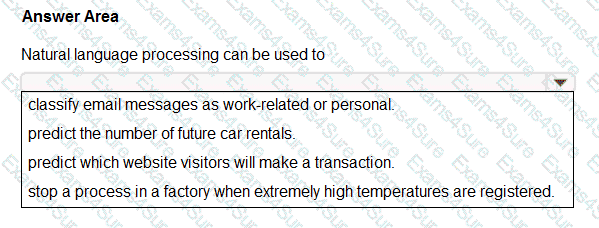

According to the Microsoft Azure AI Fundamentals (AI-900) Official Study Guide and the Microsoft Learn module “Explore natural language processing (NLP) in Azure”, Natural Language Processing (NLP) is a branch of artificial intelligence that focuses on enabling computers to understand, interpret, and generate human language. NLP is used to extract meaning and intent from text or speech, perform sentiment analysis, identify entities, and classify content based on context.

One of the primary applications of NLP is text classification, where an AI model automatically categorizes text documents or messages into predefined classes. Classifying emails as work-related or personal is a textbook example of this NLP capability. It involves analyzing the words, phrases, and structure of the text to determine the email’s category. Microsoft Learn highlights this type of problem as document classification, an essential NLP use case often implemented through Azure Cognitive Services such as Text Analytics or Language Studio.

Let’s examine why the other options are incorrect:

Predict the number of future car rentals – This is a time series forecasting or regression task, not NLP.

Predict which website visitors will make a transaction – This is a predictive analytics or machine learning classification problem based on behavioral data, not language understanding.

Stop a process in a factory when extremely high temperatures are registered – This relates to IoT automation or sensor-based anomaly detection, not NLP.

Therefore, based on Microsoft’s AI-900 materials, Natural Language Processing is best used for tasks involving understanding and classifying text, such as classifying email messages as work-related or personal. This example perfectly aligns with NLP’s goal—to enable machines to process and derive insights from human language inputs.
