H12-891_V1.0 Practice Questions

When Spanning Tree Protocol (STP) is not enabled on a network, loops can occur in Layer 2 Ethernet networks, leading to various network issues. STP is designed to prevent loops by blocking redundant paths, and its absence can cause broadcast storms, MAC address table instability, and resource exhaustion. Let’s analyze each option in the context of Huawei HCIE Datacom documentation and network behavior:

A.

This option is incorrect. Huawei switches, as per HCIE Datacom standards, do not automatically generate a specific " loop alarm " unless configured with loop detection features (e.g., Huawei’s Loop Detection Protocol or similar mechanisms). Without STP or loop detection enabled, the switch may not explicitly generate an alarm for a loop; instead, it will exhibit symptoms like broadcast storms or flapping MAC entries. Therefore, this is not a direct symptom of an STP-less loop. Reference: Huawei HCIE Datacom V3.0 Training Materials, Section 4.2 – Spanning Tree Protocol and Loop Prevention.

B.

This option is correct. When a loop occurs without STP, broadcast packets (and sometimes multicast or unknown unicast packets) circulate endlessly in the network. This leads to excessive processing by switches as they handle these packets, resulting in high CPU usage. Huawei switches, as described in HCIE Datacom documentation, can experience CPU overload due to continuous packet forwarding and processing in a looped environment. Reference: Huawei HCIE Datacom V3.0, Chapter 5 – Switch Performance and Loop Management.

C.

This option is correct. In a loop without STP, switches continuously receive frames from multiple ports, causing MAC address tables to update repeatedly as the same MAC address appears on different ports. This " flapping " of MAC entries destabilizes the network and can lead to incorrect frame forwarding. Huawei HCIE Datacom emphasizes MAC address table stability as a critical aspect affected by loops, as outlined in Section 4.3 – Ethernet Switching and Loop Mitigation. Reference: Huawei HCIE Datacom V3.0, Section 4.3.

D.

This option is correct. A loop without STP causes broadcast packets to circulate indefinitely, creating a broadcast storm. Hosts connected to the network will receive an overwhelming number of these packets, potentially leading to performance degradation or even network timeouts. This is a well-documented symptom in Huawei HCIE Datacom training, specifically in discussions about loop prevention mechanisms. Reference: Huawei HCIE Datacom V3.0, Chapter 4 – Layer 2 Loop Prevention.

Thus, the correct symptoms of a loop occurring due to the absence of STP include high CPU usage, flapping MAC entries, and hosts receiving a large number of broadcast packets. Option A is incorrect as it requires specific loop detection configuration, which is not implied in the question.

Comprehensive and Detailed In-Depth Explanation:

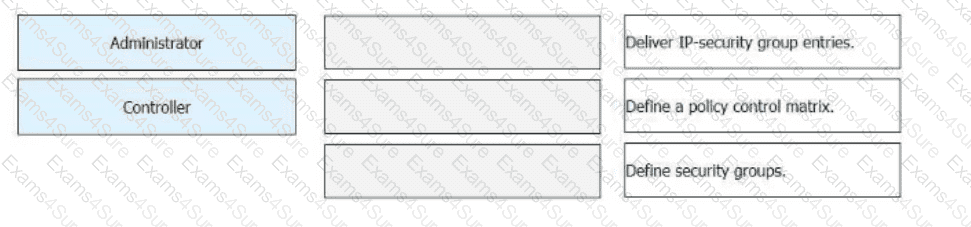

1. Free Mobility in Huawei Campus Networks:

Free mobility allows users to move freely within a campus network while retaining their access rights and security policies. It leverages iMaster NCE-Campus as the controller to simplify the deployment and management of user policies.

2. Role of the Administrator:

Administrators are responsible for defining high-level policies and security configurations. Specifically:

Define a Policy Control Matrix:

Administrators create a matrix that specifies how users from different security groups interact.

This matrix outlines access permissions and is a part of the policy planning phase.

Define Security Groups:

Administrators categorize users, devices, or endpoints into security groups based on their roles or functions.

These groups form the basis for applying uniform policies within the network.

3. Role of iMaster NCE-Campus (Controller):

The controller handles the automatic delivery of configured policies and security settings to network devices.

Deliver IP-Security Group Entries:

Once the administrator defines the policies and groups, iMaster NCE-Campus automatically distributes the IP-Security Group Binding entries to the relevant network devices.

This ensures consistent policy enforcement across the campus.

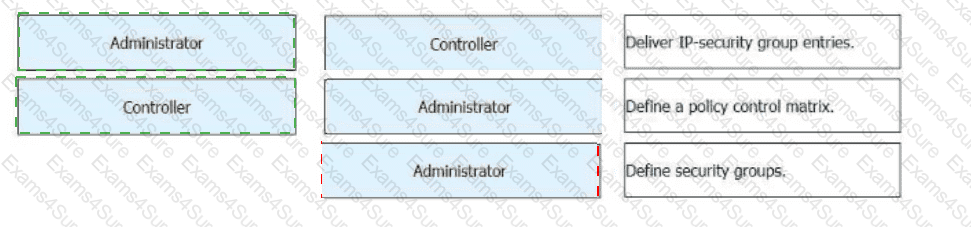

4. Why This Mapping Is Correct:

Administrators define the structure and policies, while the controller (iMaster NCE-Campus) handles the implementation and distribution.

This division of responsibilities optimizes the network management process, reducing human error and ensuring that policies are consistently applied.

Comprehensive and Detailed Explanation:

✔ SRv6 Locator and Segment Structure:

The SRv6 Locator is 2001:DB8:ABCD::/64 → This defines the segment routing namespace for this node. ✅

Dynamic Segment (SID) = 32 bits → Defined dynamically per segment. ✅

Args Field = 32 bits → Used for function arguments. ✅

❌ (B) Incorrect → Static segments are NOT explicitly defined as 32-bit fields in Huawei SRv6.

???? Reference: Huawei HCIE Datacom – SRv6 Locator and SID Structure
