H12-891_V1.0 Practice Questions

Comprehensive and Detailed Explanation:

✔ BIER vs. PIM Multicast Routing:

BIER (Bit Index Explicit Replication) eliminates the need for multicast distribution trees (MDTs) by encoding receiver information into the packet header.

PIM (Protocol Independent Multicast) requires MDTs to manage multicast forwarding paths.

✔ Correct Statements:

✅ (A) BIER uses a Bitstring field in packet headers for forwarding.

✅ (B) PIM builds MDTs to define multicast paths.

✅ (C) BIER does NOT require MDTs, making it more scalable.

❌ (D) Incorrect → BIER does not require hop-by-hop join messages.

???? Reference: Huawei HCIE Datacom – BIER and PIM Comparison

Understanding the Command Components:

This is a Huawei CLI command used for diagnosing connectivity within a VPN instance in an MPLS network.

ping -aX → Specifies the source IP address (X) of the ping packets.

-cY → Specifies the number of ICMP Echo Request packets to send (Y).

-sZ → Defines the size (in bytes) of each ICMP Echo Request packet (Z).

-vpn-instance M → Specifies the VPN instance (VRF) M to which the ping packets belong.

Why are all options correct?

✅

A.

The -aX option forces the ping to originate from IP X instead of the default interface IP.

✅

B.

The -vpn-instance M option ensures the ping is sent within VPN instance M, allowing verification of MPLS L3VPN routing.

✅

C.

The -cY parameter sets the number of ICMP Echo Requests to be sent, making Y the total count.

✅

D.

The -sZ parameter defines packet size, helping to test MTU (Maximum Transmission Unit) issues.

Real-World Application:

Verifying MPLS VPN connectivity: Ensure customer networks are reachable within separate VRFs.

Testing MTU & fragmentation: Using -sZ, operators can check if packet fragmentation occurs.

Debugging asymmetric routing issues: By forcing -aX, engineers can trace return paths.

✅ Reference: Huawei HCIE-Datacom Official Guide – MPLS VPN Troubleshooting & Ping Options

X = 0

Y = 0

Z = 1

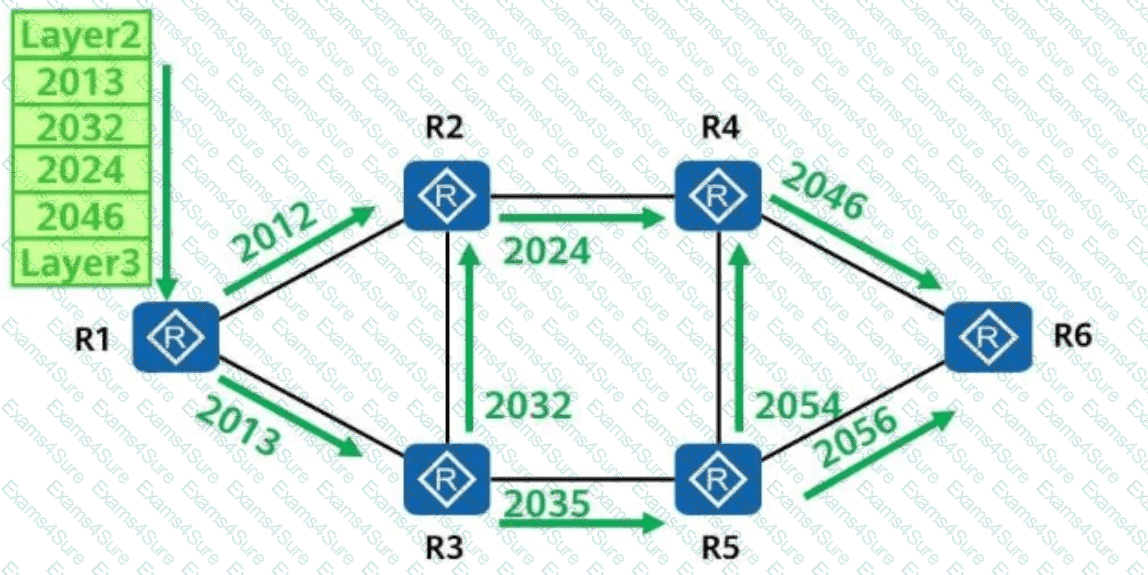

Understanding MPLS Label Headers

???? What is MPLS (Multiprotocol Label Switching)?

MPLS is a high-performance forwarding technology that replaces IP lookups with label switching.

Packets are forwarded based on labels instead of destination IP addresses.

MPLS labels are stacked when passing through multiple hops.

???? MPLS Label Stack Structure

Each MPLS label has four fields:

Label – 20-bit identifier used for forwarding.

EXP (Experimental Bits / Traffic Class) – 3-bit field used for QoS (Quality of Service).

S (Bottom of Stack) – 1-bit flag that indicates whether this is the last (bottom) label in the stack.

TTL (Time-To-Live) – 8-bit field to prevent loops.

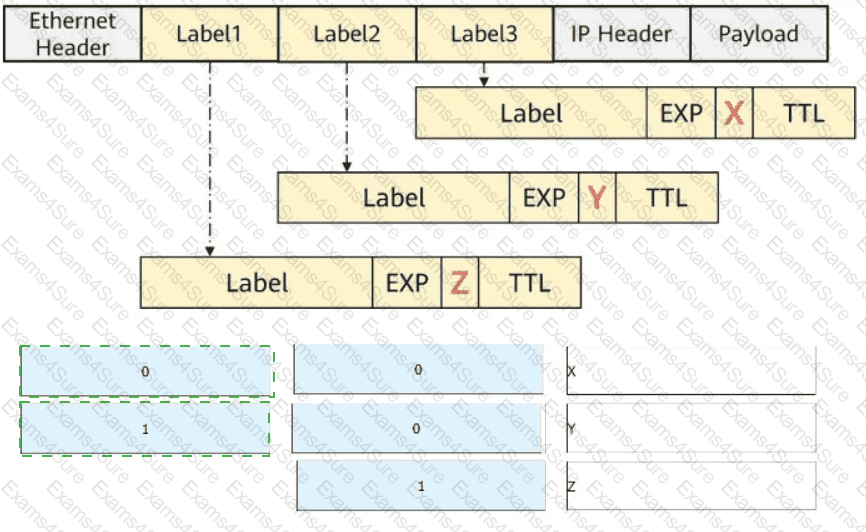

Understanding the EXP Fields (X, Y, Z) in the Figure

The image shows a packet with three MPLS labels.

Each label has an EXP field (X, Y, Z) representing the QoS bits.

By default, MPLS EXP bits are copied from the top label to lower labels unless modified by QoS policies.

If no QoS policy modifies the EXP bits, they remain the default value of 0.

The bottom label in the stack (Label 3) often has an EXP value of 1 to indicate specific QoS policies.

Why Are the Answers X = 0, Y = 0, Z = 1?

✅ X = 0 (Default EXP for Label 1, the top label in the stack).

✅ Y = 0 (EXP for Label 2, unchanged from the default value).

✅ Z = 1 (EXP for Label 3, indicating a QoS setting applied to the bottom label).

Real-World Application:

MPLS QoS (Quality of Service): EXP values determine packet priority in Service Provider networks.

Traffic Engineering (TE): MPLS labels guide packets through optimized paths, ensuring low-latency services.

Enterprise WAN Optimization: MPLS traffic is prioritized for critical applications like VoIP, Video Conferencing, and Cloud Services.

✅ Reference: Huawei HCIE-Datacom Guide – MPLS Label Stack and QoS EXP Field Processing
