200-301 Practice Questions

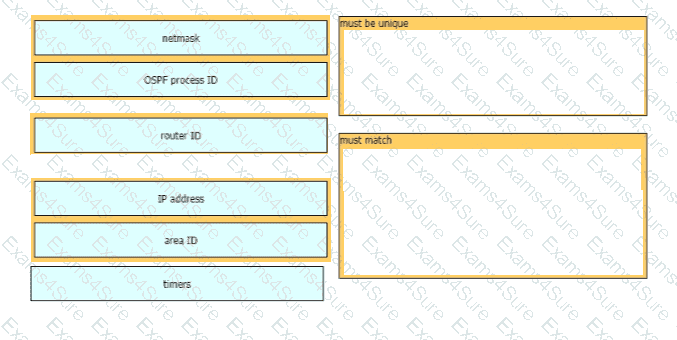

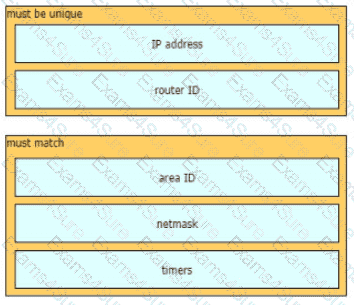

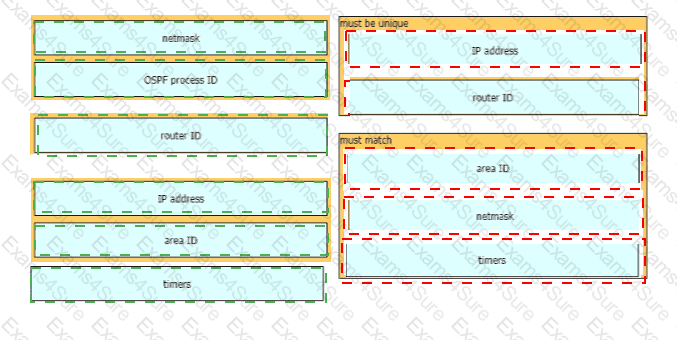

OSPFv2 neighbors do not form just because two routers can ping each other. Several parameters must agree before adjacency can progress. The interfaces must be in the same IP subnet and OSPF area. Hello and dead intervals must match. Authentication, if configured, must match. Stub-area flags must match, and MTU mismatches can prevent database exchange from completing. Router IDs must be unique, but they do not have to match. OSPF process IDs are locally significant on Cisco IOS, so the process number can differ between neighbors. Network type also matters because it affects DR/BDR election and adjacency behavior. Cisco CCNA v1.1 IP Connectivity includes single-area OSPFv2 configuration and neighbor adjacency requirements. The point of the drag-and-drop is to separate mandatory matching values from values that are local-only or simply need uniqueness. A clean OSPF adjacency requires matching operational parameters on the shared link, not identical router configuration everywhere.

The core layer in a three-tier campus design is built for fast, resilient transport between distribution blocks. Its job is to provide uninterrupted forwarding and timely data transfer between layers. It should avoid unnecessary policy complexity because heavy filtering, packet inspection, or endpoint attachment belongs elsewhere in the architecture. The access layer connects end-user devices. The distribution layer commonly provides aggregation, routing boundaries, policy enforcement, and summarization. The core should stay highly available and efficient so the rest of the campus has stable backbone connectivity. Cisco CCNA 200-301 v1.1 Network Fundamentals tests the access, distribution, and core roles because good troubleshooting depends on knowing where functions should live. The core is not the place to police edge traffic or inspect packets for malicious activity in the basic three-tier model. The two correct core functions are uninterrupted forwarding service and timely data transfer between layers.

To enable OSPFv2 on an active interface, the router needs an OSPF process and the interface must be placed into an OSPF area. The process ID is locally significant on the router; it starts the OSPF routing process but does not have to match the neighbor. The area ID is different: routers that form an adjacency on the same link must agree on the area, because the area defines the link-state database scope. Authentication keys, stub flags, and IPv6 addressing are not minimum requirements for OSPFv2. MD5 authentication can be added as a security control, but OSPFv2 can run without it. IPv6 belongs to OSPFv3, not OSPFv2. Cisco CCNA 200-301 v1.1 tests OSPFv2 under IP Connectivity, and the basic operational checklist is simple: active interface, matching network type/timers/area where required, and an enabled OSPF process. For this question, the two minimum configured parameters are the OSPF area and the OSPF process I

D.

The verified answer is A and

D.

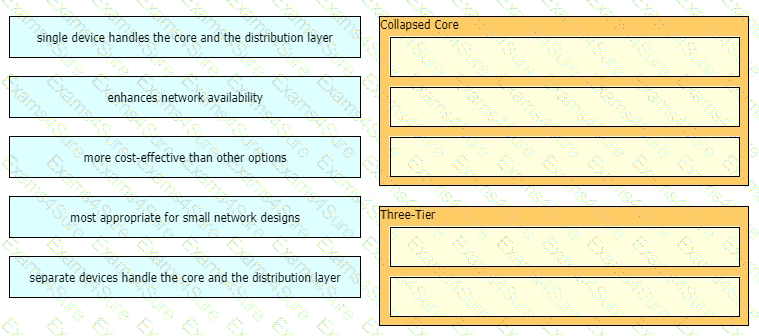

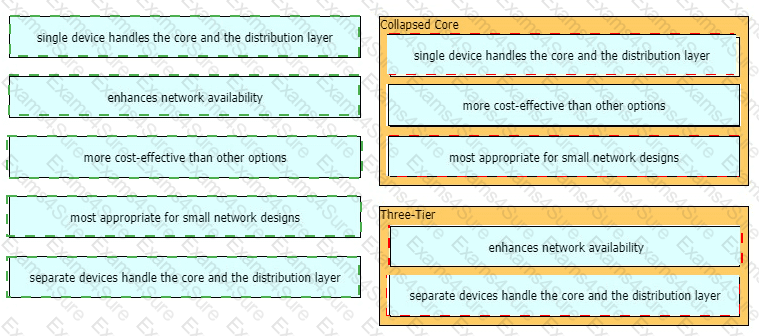

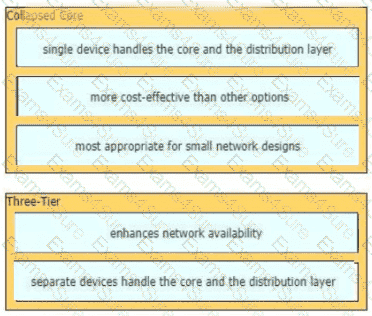

The correct response is the displayed drag-and-drop mapping. Network architecture characteristics distinguish two-tier, three-tier, spine-leaf, WAN, SOHO, and cloud designs. The correct mapping depends on where devices attach, where aggregation occurs, how redundancy is built, and whether the design optimizes campus access, data-center east-west traffic, or remote connectivity. For Cisco CCNA 200-301 v1.1, the important point is the mechanism, not a generic description of the technology. The distractors normally mix access, distribution, core, and data-center terms, so matching function to layer is the safest method. When this appears in a network, the symptom normally confirms the answer: the route installed, the state selected, the packet forwarded, the wireless client behaviour, or the management workflow will follow this rule. That is why this answer is the best fit for the scenario and not just a plausible networking term.
