200-301 Practice Questions

Answer as below configuration:

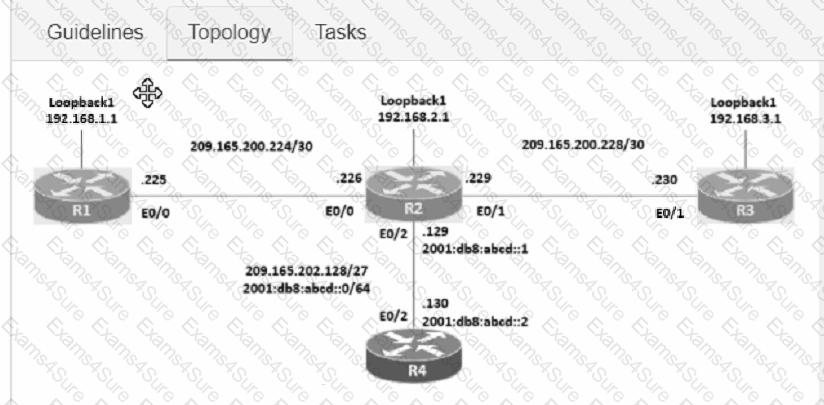

1.- on R3

config terminal

ip route 192.168.1.1 255.255.255.255 209.165.200.229

end

copy running start

2.- on R2

config terminal

ip route 0.0.0.0 0.0.0.0 209.165.202.130

end

copy running start

3.- on R2

config terminal

ipv6 route ::/0 2001:db8:abcd::2

end

copy running start

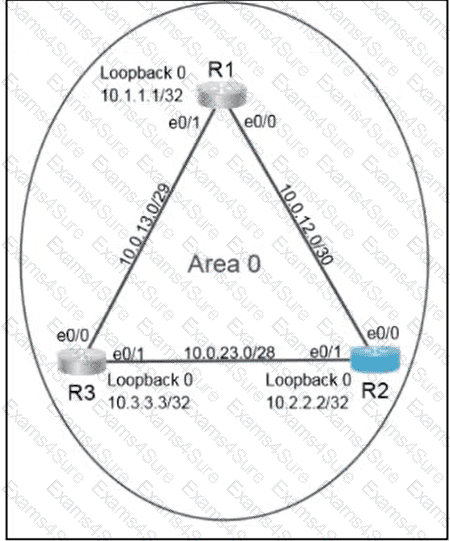

R2# configure terminal

R2(config)# interface Ethernet0/0

R2(config-if)# ip ospf priority 255

R2(config-if)# exit

R2(config)# interface Ethernet0/1

R2(config-if)# ip ospf priority 255

R2(config-if)# exit

R2(config)# router ospf 30

R2(config-router)# router-id 10.22.22.22

R2(config-router)# network 10.0.12.0 0.0.0.3 area 0

R2(config-router)# network 10.0.23.0 0.0.0.15 area 0

R2(config-router)# end

R2# copy running-config startup-config

Verification commands:

R2# show ip ospf neighbor

R2# show ip ospf interface Ethernet0/0

R2# show ip ospf interface Ethernet0/1

R2# show ip protocols

The router ospf 30 command creates the locally significant OSPF process requested by the task. The explicit router-id 10.22.22.22 command prevents R2 from dynamically selecting another active interface address as its router I

D.

The interface command ip ospf priority 255 gives R2 the maximum OSPF interface priority on both broadcast segments. This makes R2 the strongest DR candidate. OSPF DR elections are non-preemptive, so if a DR election has already completed, the election must be restarted by clearing the relevant OSPF processes or resetting the affected interfaces. Cisco documents that OSPF router IDs identify OSPF instances, while the DR and BDR reduce flooding on broadcast networks; OSPF process numbers do not have to match between neighboring routers.

Answer B,C is correct:

B.

C.

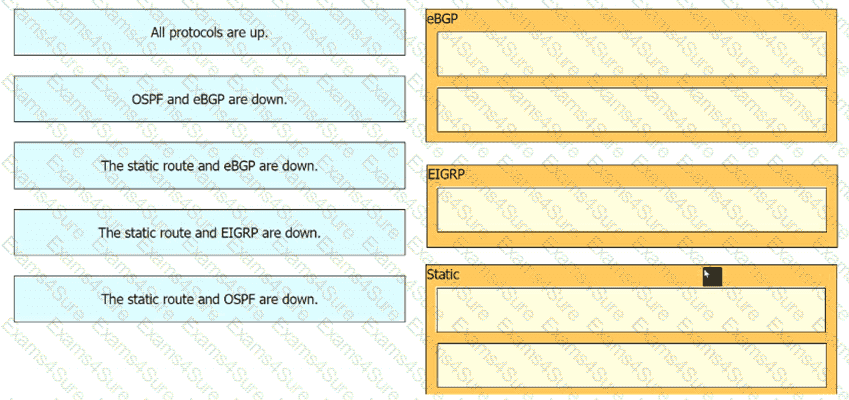

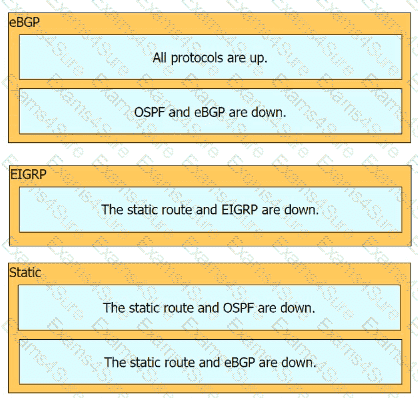

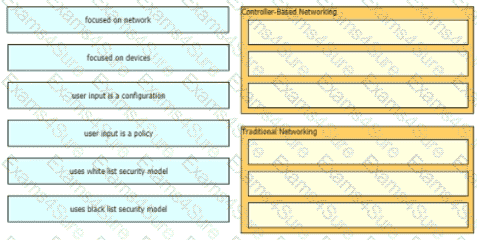

This item belongs to Cisco CCNA 200-301 v1.1 Network Fundamentals, where the exam measures whether the candidate can match a technology, field, protocol, or network behavior to its correct operational role. The important step is to classify each left-side item by what it actually does, not by a similar-sounding term. For example, management protocols, address types, QoS mechanisms, wireless settings, and topology terms all have strict meanings in Cisco documentation and IOS behavior. A wrong match usually places a function at the wrong layer or assigns a feature to the wrong control point. The shown mapping keeps those boundaries intact: the component that performs the function is paired with the matching description, while unrelated distractors are left unused or mapped elsewhere. In real troubleshooting, this same skill prevents engineers from applying a security, routing, switching, or automation feature in the wrong part of the design.

Answer A,E is correct:

A.

E.

D.

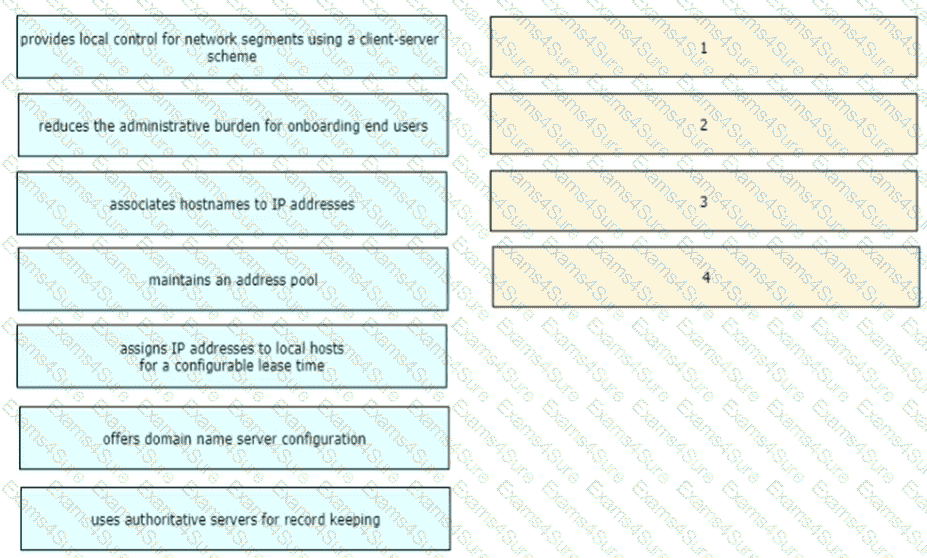

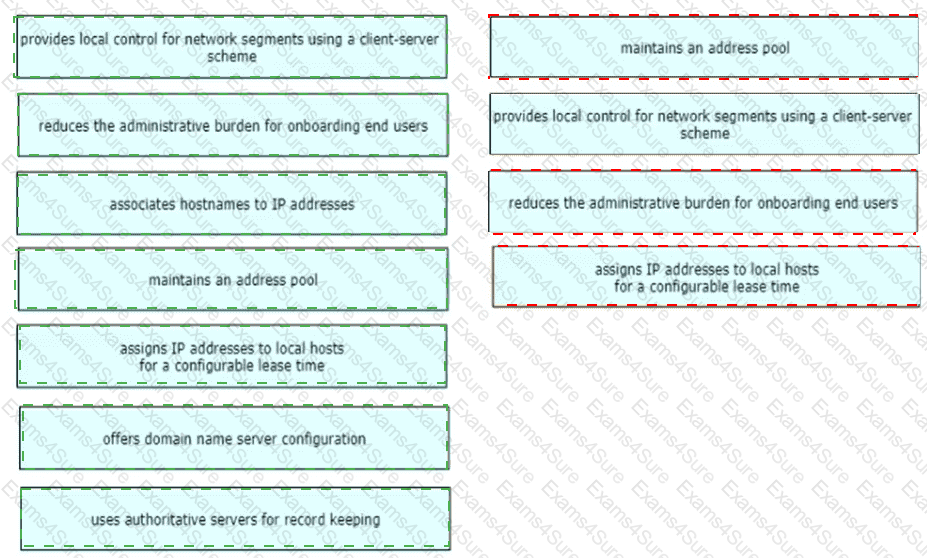

The verified answer is the displayed drag-and-drop mapping. DHCP functions include address leasing, pool management, option delivery, exclusions, and relay support. The mapping should separate server-side assignment, client requests, lease tracking, and helper-address relay behaviour. Cisco CCNA 200-301 v1.1 places this skill in IP Services, where the exam expects a working understanding of how the feature behaves on real Cisco networks, not just a memorized command. DNS, ARP, and static addressing concepts are related to host connectivity but are not DHCP functions. In production, this distinction matters because a misapplied command or design choice usually creates an outage, a security gap, or unnecessary troubleshooting noise. The correct choice matches the control-plane, data-plane, wireless, security, or services behaviour described in the scenario and should be preferred over options that merely sound related.
