FCSS_NST_SE-7.6 Practice Questions

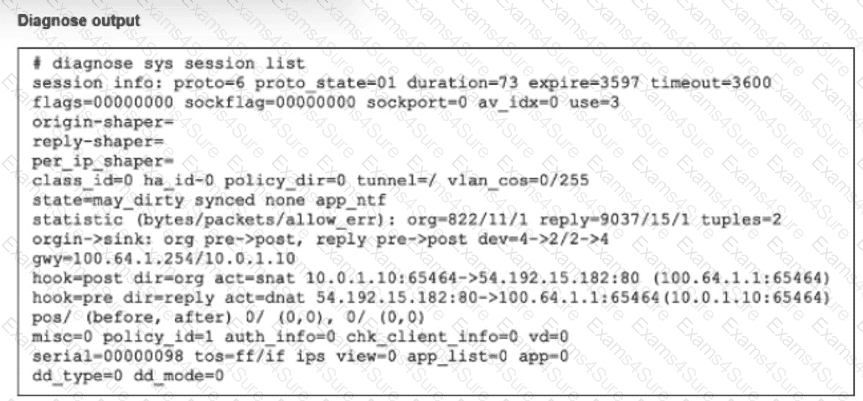

In the provided session table output, the following details justify the answers:

Policy ID Match: The line policy_id=1 directly confirms that this session was matched by Firewall Policy ID 1. According to Fortinet’s session table documentation, the policy_id field always references the policy that allowed this session, so this is a clear indicator.

Session Offloading: The presence of the strings npu_state, ips_offload, and notably the NPU info section such as offload=8/8, ips_offload=1/1 shows that this session has been offloaded to the Network Processor Unit (NPU). Fortinet technical documentation states that " offload " values greater than zero in both directions (and an NPU info section) affirm that NPU hardware processing (fast path) is handling this traffic, thus the session is not being handled in software only.

Other options:

VLAN Tagging (vlan=0x0000/0x0000): This means no VLAN tag is assigned to this session.

NP7: The actual NPU model handling the session isn’t exposed in this snippet–the offload parameters shown are generic and not specific to NP7 hardware, so it cannot be concluded from the session data.

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-How-to-troubleshoot-FSSO-agentless-polling/ta-p/214349

From the snippet we can see that FortiGate (via the fssod daemon) is directly detecting the user logon rather than relying on a separate “collector” or “DC agent.” This indicates agentless polling—FortiGate polls the DC’s event logs over TCP 445 to discover logons. So: - FSSO is using agentless polling mode to detect logon events - In agentless mode, FortiGate will periodically poll the same IP (the DC) on port 445 to see if the user is still logged on

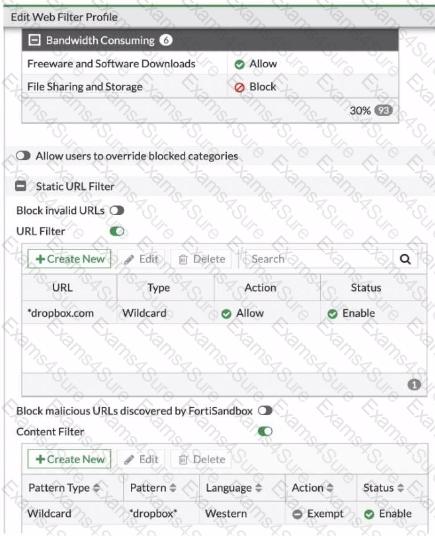

The reported symptom—users unable to access any websites despite no explicit blocks in the profile—points to systemic connectivity or configuration issues rather than specific URL filtering rules.

Option B (SSL/TLS Inspection): When Deep Inspection is enabled, the FortiGate acts as a Man-in-the-Middle (MitM) and re-signs server certificates using its own C

A.

If the clients (browsers) do not trust this CA (i.e., the certificate is not installed in their Trusted Root store), they will reject the connection with certificate errors, effectively preventing access to all HTTPS websites.

Option D (DNS): Web browsing relies on DNS resolution . If the configured DNS server is unreachable or failing, the FortiGate (or the client) cannot resolve FQDNs to IP addresses. Consequently, browsers will fail to load any page, resulting in a total loss of web access.

Option E (License): If the FortiGuard Web Filtering license expires, the FortiGate can no longer query the FortiGuard Distribution Network (FDN) for ratings. By default, or if the allow-when-rating-error setting is disabled (a common security practice), the FortiGate will block all web traffic that it cannot rate, often displaying a " Web Filter Service Error " or invalid license page.

Option A is incorrect because clearing the cache only increases latency, it does not block traffic. Option C is incorrect because webfilter-force-off is typically used to disable the service (often allowing traffic to bypass checks if the service is down), rather than blocking it.

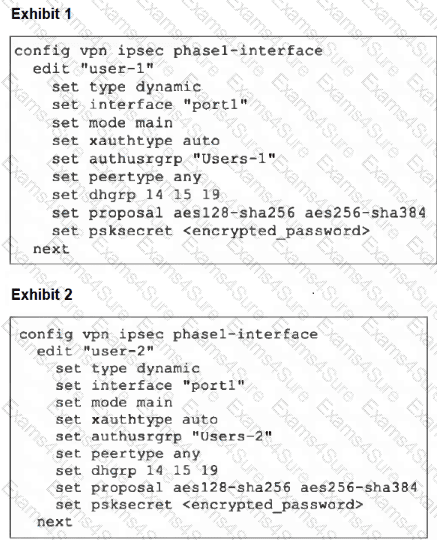

The key point is that the two VPNs are dynamic dialup IPsec tunnels on the same interface and both are using IKEv1 main mode . In this design, FortiGate cannot reliably distinguish which dialup phase1 to match before phase 1 completes.

The uploaded Network Security Support Engineer 7.6 Study Guide shows that XAuth happens only after phase 1 is already established:

“The IKE real-time debug shows, after phase 1, the exchange of extended authentication (XAuth) packets… You can also see the CFG_REPLY, showing the XAuth user and group name.”

That means the user group is learned too late to be used for selecting the correct phase1 definition. So the fix must be applied to the phase1 matching method itself , not to XAuth.

The FortiOS administration guide gives the exact rule for this scenario:

“When the remote VPN peer has a dynamic IP address and is authenticated by a pre-shared key you must select Aggressive mode if there is more than one dialup phase 1 configuration for the interface IP address.”

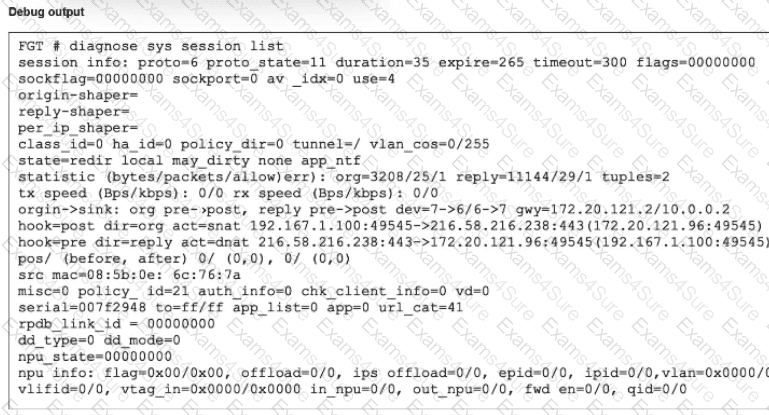

The session output includes the flags:

state=redir local may_dirty ...

npu_state=00000000

offload=0/0

The 7.6 study guide explains these flags directly:

local = “Session is to/from local stack”

redir = “Session is being processed by an application layer proxy”

may_dirty = “Session is allowed by a firewall policy”

This makes C correct, because the local flag means the session either originates from FortiGate or terminates on FortiGate . The FortiOS administration guide states the same meaning: “Session is originated from or destined for local stack.”

This also makes A correct. The redir flag means the session is handled by an application-layer proxy . FortiOS documents explain that proxy-based inspection buffers traffic on the FortiGate and inspects it there, and that proxy-based processing is CPU and memory-intensive

Since the session also shows no NPU offload (npu_state=00000000, offload=0/0), this traffic is being handled in software/CPU, not by the NPU.

Why the other options are wrong:

B is wrong because the redir flag proves the session is not passing without inspection; it is being processed by an application-layer proxy

D is wrong because there is no authentication flag in this session. In Fortinet examples of captive portal/authentication-related sessions, the session state includes auth or authed flags. The study guide shows: “Any session for traffic coming from an authenticated user contains the authed flag.” This exhibit does not show auth or authed, so there is no basis to conclude the client was redirected to a captive portal for authentication.
