Free Fortinet NSE 6 - Network Security 7.6 Support Engineer Practice Questions

The correct answers are C and D .

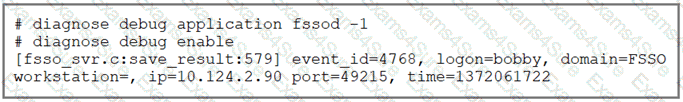

The key clue is the command itself:

diagnose debug application fssod -1

The study guide explicitly states: “There is a specific FortiGate daemon that handles the polling mode. It is the fssod daemon. To enable agentless polling mode real-time debug use the command: diagnose debug application fssod -1.”

That directly proves

D.

The study guide also states: “In agentless polling mode, FortiGate frequently polls all workstations (as a standalone collector agent does) to check which users are still logged in. You can sniffer this traffic on port 445.”

That directly proves

C.

Why the other options are wrong:

A is wrong because the “cannot verify if the user is still logged in” / Not Verified condition is described for the collector agent workstation status, not as a conclusion from this FortiGate fssod debug line. The study guide says: “A user goes to not verified status when they log out, or when there is a problem in the polling done by the collector agent to the workstation.”

B is wrong because DC Agent mode is part of agent-based FSSO , where DC agents send events to a collector agent. This output is from the fssod daemon, which the study guide ties to agentless polling mode , not DC Agent mode.

E is wrong because TCP port 8000 is used for communication between the collector agent and FortiGate , while in agentless polling mode FortiGate polls workstations and that traffic can be sniffed on TCP port 445 .

So the verified answers are: C, D .

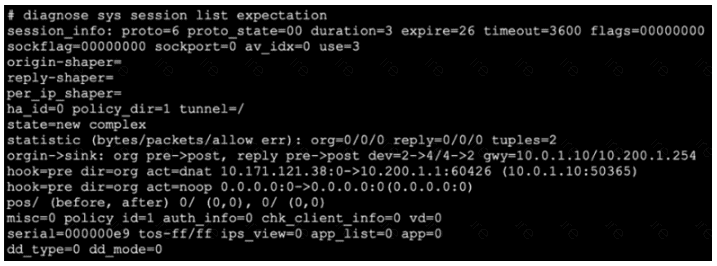

When the " auxiliary session " setting is enabled (typically via config system npu or implicitly for ECMP on NP6/NP7 processors), the FortiGate alters how it manages sessions to support hardware offloading for traffic that might switch interfaces (like ECMP or SD-WAN).

B.

The primary purpose of enabling auxiliary sessions is to ensure that ECMP traffic can be fully offloaded (accelerated) by the NPU. Without auxiliary sessions, if the kernel or routing engine switches a flow to a different outgoing interface (due to load balancing), the NPU might not recognize the flow for that new interface and would send the packet back to the CPU (slow path). Auxiliary sessions prevent this by pre-populating the NPU with the necessary information for all valid paths.

D.

Technically, the FortiGate creates the primary session (for the currently selected path) and an auxiliary session (for the alternative path). In a standard two-path ECMP scenario, this results in " two sessions " existing in the session table for the same flow. This ensures that if a routing change occurs (e.g., the flow shifts to the second path), the traffic continues to be processed by the NPU without interruption or re-evaluation by the CPU.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Using-the-diagnose-sys-top-CLI-command/ta-p/190238

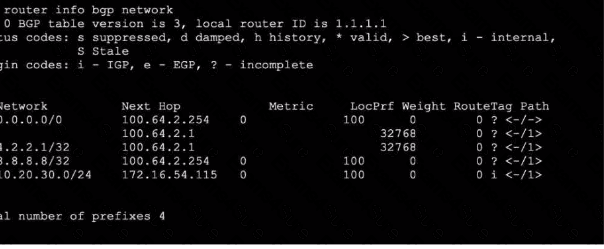

For Option A:In Fortinet BGP (and standard BGP), when a prefix is displayed with an " i " (lowercase i) in the Path column, it represents an internal prefix that originated from the local router, typically configured via the BGP " network " command. In the exhibit, the prefix 10.20.30.0/24 is listed with a Path value of i, indicating it was injected into BGP by the local router using the network statement, not via redistribution from another routing protocol. The same logic applies to i as documented: " Origin code ' i ' means the route was injected via the network command. "

For Option D:The get router info bgp network output is a summary table displaying both local and received BGP routes. It lists all known routes to the BGP process, whether received from peers or originated locally. The exhibit shows all BGP prefixes known to the local router, matching the official admin guide’s description of this command’s output.

Explanation for B and C:

The phrase “legacy route advertisement” is not formalized in BGP documentation or Fortinet’s admin guide; the output uses standard BGP mechanics.

If a route was redistributed into BGP from another routing protocol, the Path field would display a " ? " (question mark) for incomplete (redistributed) origin. Here the /24 route has " i " so it is NOT a redistribution.

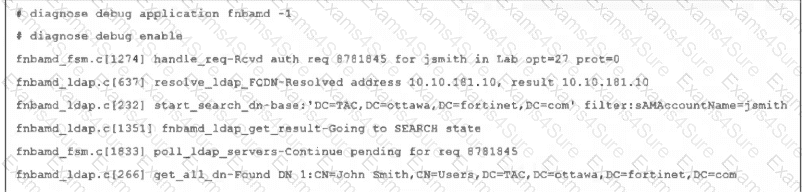

The exhibit includes these key debug lines:

start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith

get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com

The study guide explains that in regular bind , LDAP authentication has four steps , and that during step 2 , FortiGate searches the LDAP tree to find the user’s DN:

“During the second step, FortiGate does a search query in the LDAP database to find the user’s location—in other words, the user’s DN. If the user is found, the server replies with the user’s DN.”

It also states for the real-time debug of step 2:

“An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree. This message includes the base branch (distinguished name setting) and the name of the attribute used to locate the user... If the LDAP server finds the user, the output shows the user’s full DN.”

That directly proves:

D is correct because the debug is showing step 2: Search Request

A is correct because the base DN and found DN are under DC=TAC,DC=ottawa,DC=fortinet,DC=com, which corresponds to the LDAP domain/tree root TA

C.

ottawa.fortinet.com

Why the other options are wrong:

B is wrong because binding with the user’s credentials is step 3 , not the step shown here. The study guide says: “Step 3 – Bind user credentials” and shows that this happens later with fnbamd_ldap_build_userbind_req / __ldap_build_bind_req-Binding to ' CN=John Smith... '

C is wrong because collecting user group information is step 4 , not the step shown in the exhibit. The study guide says: “The last step is to get the user group information” and shows step 4 with Attr query / memberOf search

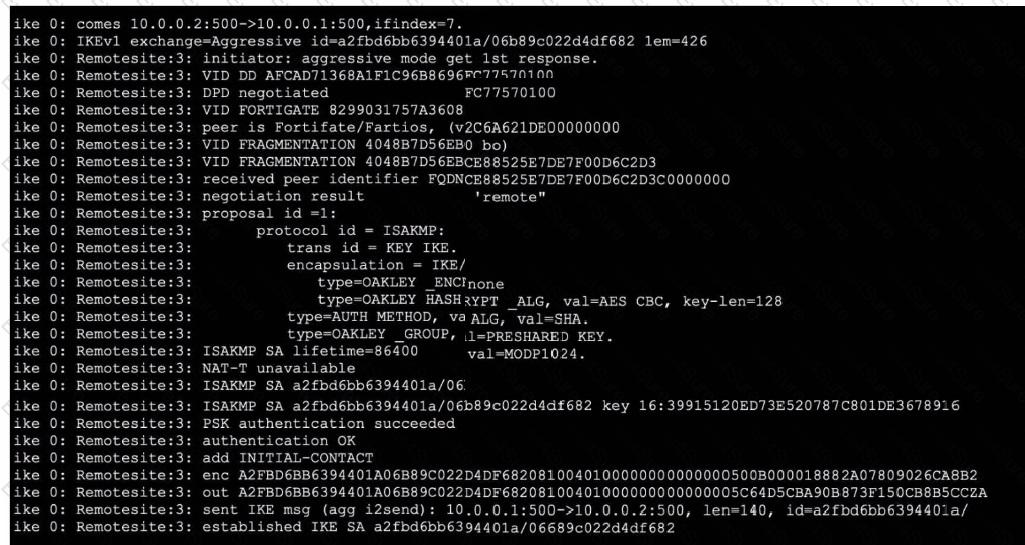

From the exhibit, you can observe that the debug output captures an IKEv1 negotiation in aggressive mode. Let ' s break down the supporting details in line with official Fortinet IPsec VPN troubleshooting resources and debug guides:

For Option B:

The very first line of the debug output shows:

comes 10.0.0.2:500- > 10.0.0.1:500, ifindex=7.

This indicates the traffic direction—from the remote IP (10.0.0.2) with port 500 to the local IP (10.0.0.1) with port 500. According to Fortinet ' s documentation, the right side of the arrow always represents the local FortiGate gateway. Thus, 10.0.0.1 is the local gateway IP address.

For Option D:

You see the statement:

negotiation result " remote "

and

received peer identifier FQDNCE88525E7DE7F00D6C2D3C00000000

Official debug documentation describes that the " peer identifier " or peer ID sent by the initiator is displayed here. In the context of IKE/IPsec negotiation, this value is used as the IPsec peer ID for authentication and identification purposes. The initiator is providing " remote " as the peer ID for its connection.

Why Not A or C:

Perfect Forward Secrecy (PFS): The debug does not show any DH group negotiation in phase 2 (no reference to group2, group5, etc., for phase 2), so you cannot deduce the presence of PFS solely from this output.

Phase 2 negotiation: The log focuses on IKE (phase 1) negotiation and establishment; there’s no reference to ESP protocol, Quick Mode, or other identifiers that would show phase 2 SA negotiation and establishment.

This interpretation aligns with the explanation in the FortiOS 7.6.4 Administration Guide ' s VPN section and the official debug command output samples published in Fortinet’s documentation. It demonstrates how to distinguish between local and remote addresses and how to identify the use of peer IDs.
